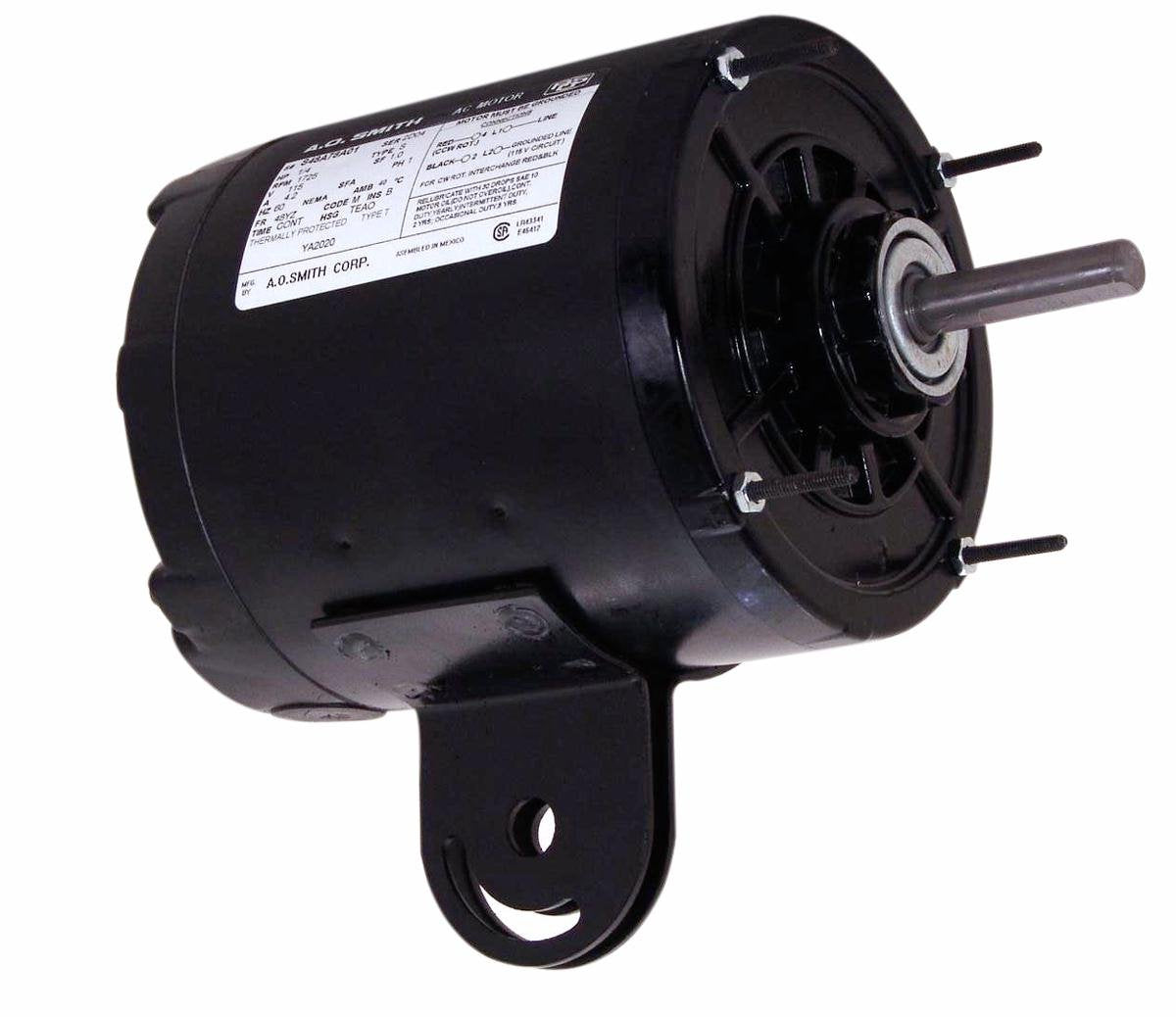

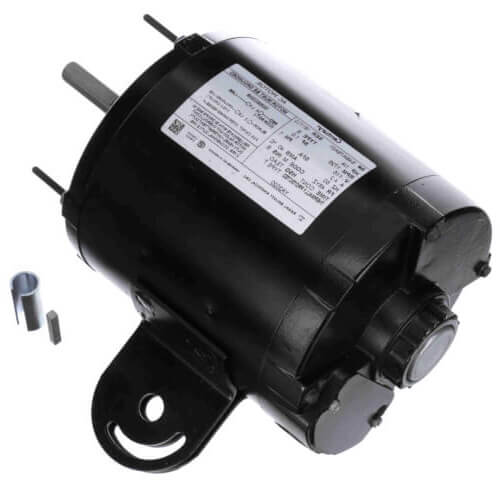

Century YA2020 48YZ Frame TEAO Pedestal Fan Motor 1/4 HP 1725 RPM 115 Volts

Product Description

The Century YA2020 48YZ Frame TEAO Pedestal Fan Motor is designed for demanding industrial applications. This single-phase motor operates on 115 volts and delivers a rotation speed of 1725 RPM. Ideal for use in manufacturing, HVAC systems, and other industrial settings, this motor ensures reliable performance.

• 1/4 HP motor
• 1725 RPM speed
• 115 volts power

Product Highlights

This motor features a rolled steel frame, aluminum flange, and reversible rotation, making it versatile for various installations. It is thermally protected and has continuous duty capability, ensuring long-lasting operation in tough environments.

Product Information

Standard Information

• Brand: Century
• Model: YA2020

Technical Specifications

• Frame: 48YZ
• Enclosure Type: TEAO
• Rotation: Reversible
• Bearings: Sleeve
• Voltage: 115V
• Amperage: 4.2
• Horse Power: 1/4
• Insulation Class: B
• Duty: Continuous
• Mount: Yoke
• Phase: 1
• Speeds: 1
• Max Ambient Temp: 104°F
• Poles: 4
• Hertz: 60
• Shipping Dimensions: 15 inches x 12 inches x 12 inches
• Weight: 14 lbs
• Overload Protection: Automatic
