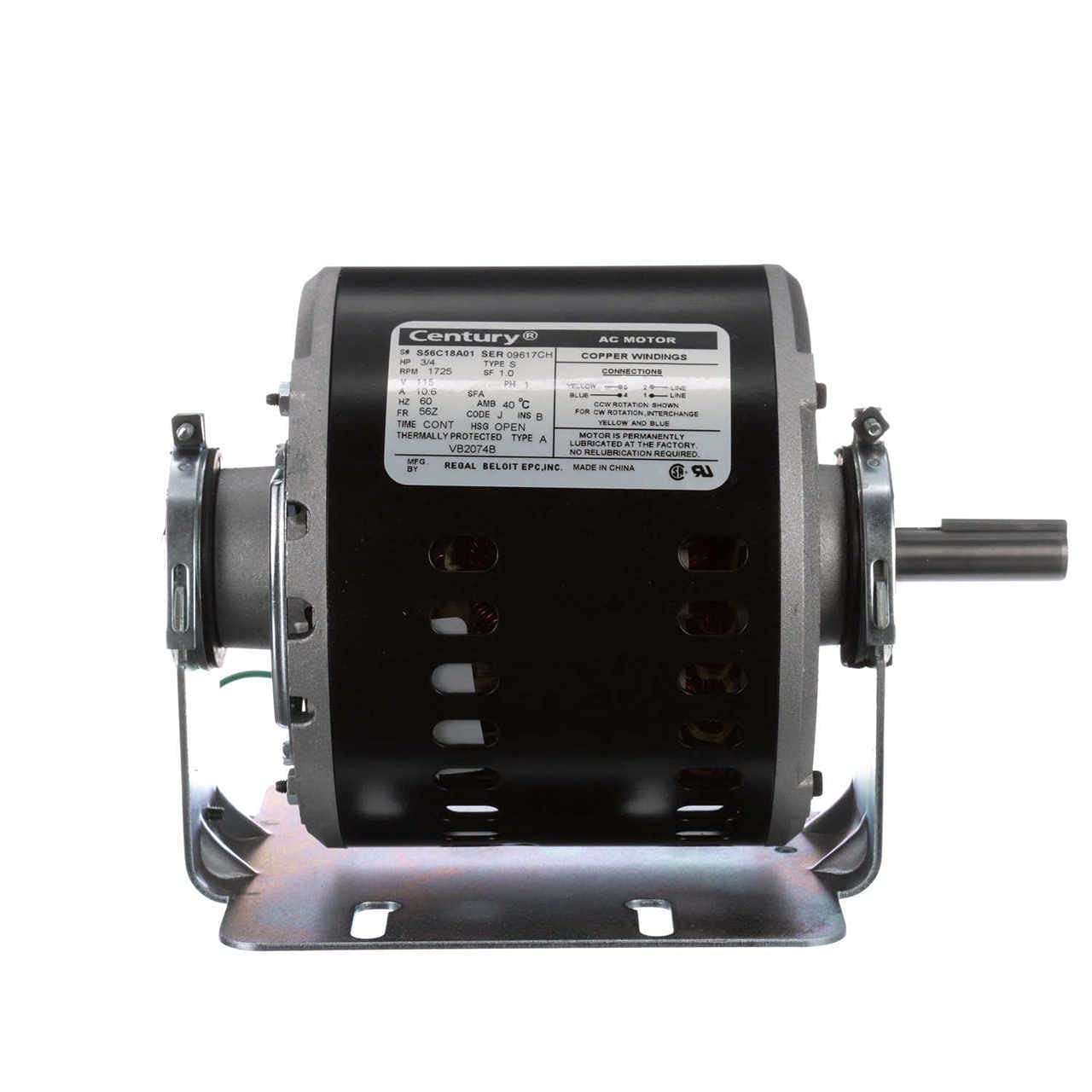

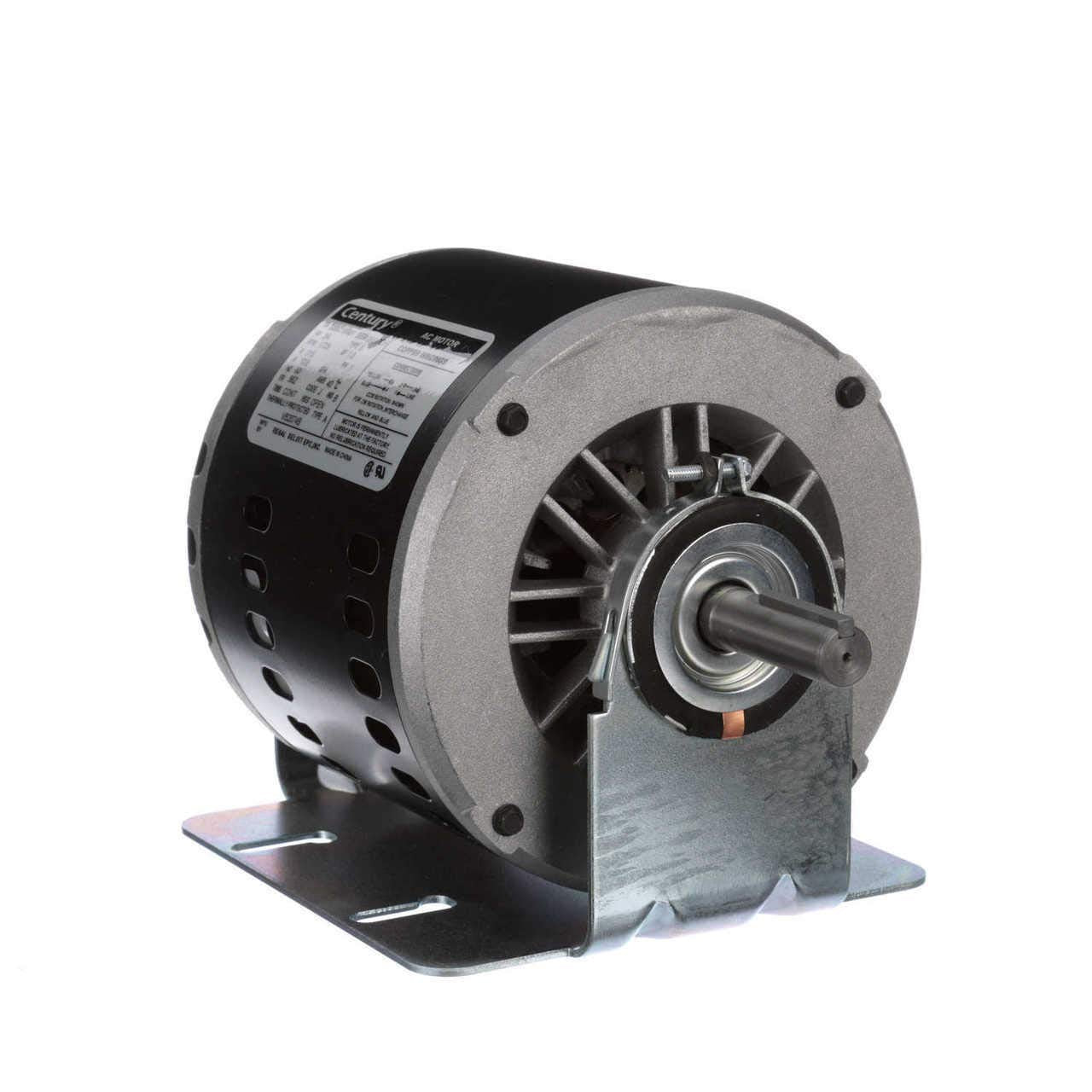

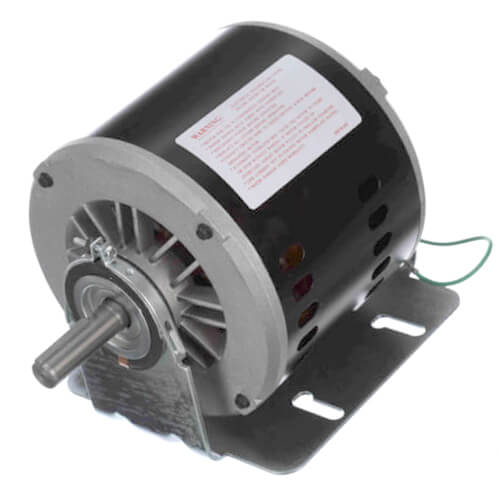

Century VB2074B Evaporative Cooler Motor 115V 3/4HP 1725RPM

Product Description

The Century VB2074B Evaporative Cooler Motor is designed for various industrial applications. It operates on a 115V power supply, offering a 3/4 HP output at a speed of 1725 RPM. Its split-phase motor design and open dripproof enclosure make it suitable for demanding work environments.

• 3/4 HP Output
• 1725 RPM Speed
• 115V Power Supply

Product Highlights

This motor is ideal for HVAC and refrigeration applications, providing reliable and durable performance.

Product Information

Standard Information

• Brand: Century
• MPN: VB2074B
• Category: HVAC/R Motor
• Voltage: 115V
• HP: 3/4
• RPM: 1725

Technical Specifications

• Motor Design: Split-Phase
• Motor Enclosure: Open Dripproof
• Full Load Amps: 10.6
• Motor Bearings: Ball
• Ins. Class: B
• Motor Service Factor: 1.00
• Frame: 56Z
• Mounting Type: Cradle Base
• Shaft Diameter: 5/8 inch
• Shaft Length: 1-7/8 inch
• Ambient Temperature: 40 Degrees C
• Overall Length: 9-13/16 inch
• Motor Shaft Rotation: CW/CCW
