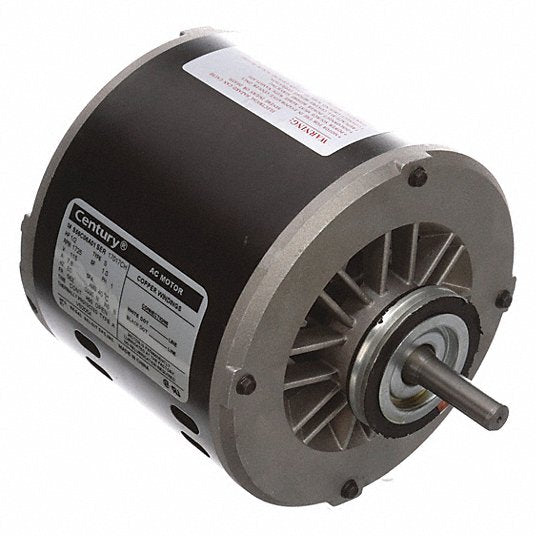

CENTURY MOTORS VB2054V1 Evaporative Cooler Motor 1/2 HP

Product Description

The CENTURY MOTORS VB2054V1 is an evaporative cooler motor designed for HVAC and refrigeration applications. This motor operates at a power capacity of 1/2 horsepower with a nameplate speed of 1,725 RPM and is compatible with a standard power supply of 115V AC. Its split-phase design ensures a lower starting torque, making it suitable for cooling fans that start gradually.

• Designed for evaporative cooler applications in HVAC/R.
• Operates efficiently at 1,725 RPM with a 115V AC electrical supply.
• Features an open dripproof enclosure and automatic thermal protection.

Product Highlights

This evaporative cooler motor is well-suited for cooling applications requiring reliable performance and durability.

Product Information

Standard Information

• Brand: CENTURY
• Motor Application: HVAC/R

Technical Specifications

• Motor Sub Application: Evaporator Cooler
• Phase: Single
• Motor Design: Split-Phase
• HP: 1/2
• Nameplate RPM: 1,725
• No. of Speeds: 1
• Voltage: 115V AC
• Full Load Amps: 7.8 A
• Frame: 56Z
• Hz: 60
• Usable @ 208V: No
• Usable @ 200V: No
• Motor Service Factor: 1
• Motor Thermal Protection: Auto
• Ins. Class: B
• Max. Ambient Temp.: 40 °C
• Motor Shaft Rotation: CCWLE
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Type: Ring
• Shaft Length: 1-1/2 inches
• Shaft Dia.: 1/2 inches
• Overall Length: 9-7/16 inches
• Length Less Shaft: 7-15/16 inches
• Ring to Ring Center: 7-7/16 inches
• Resilient Ring Dia.: 2-1/2 inches
• Standards: CSA; UL
• MODEL: VB2054V1
• Manufacturer Name: REGAL REXNORD
• Manufacturer: Century
• Bearings: Ball
• Duty Cycle: Continuous
• Enclosure Material: Rolled Steel
• Insulation Class: B
• Maximum Ambient Temperature: 40 °C
• Motor Shell Length: 4.7 inches
• Mounting: Base
• Service Factor: 1.0
• Thermal Protection: Automatic
• Volts: 115
