Century Motors V1154BV1 Refrigeration Motor 1.5 HP 56Z Frame REPLACES V1154B

Product Description

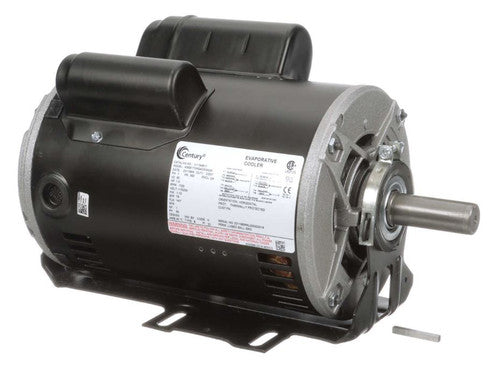

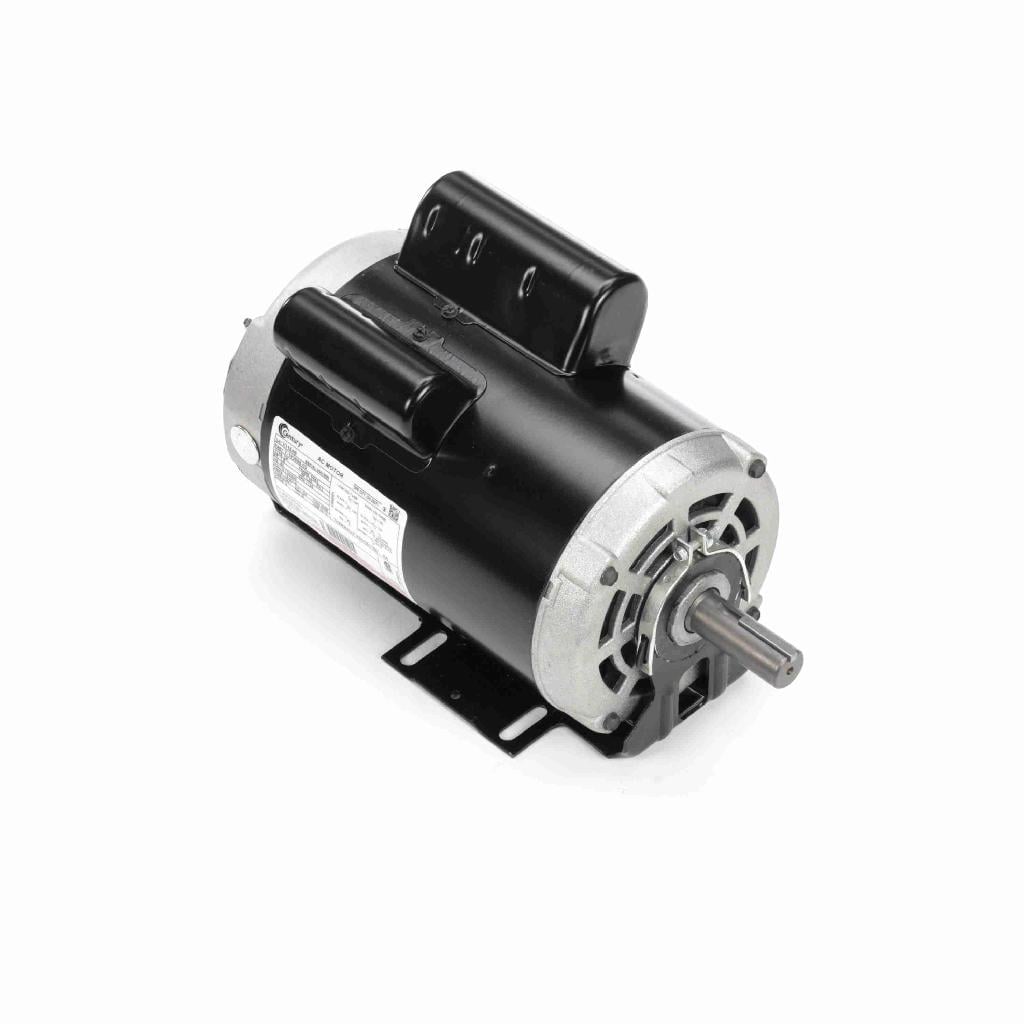

The CENTURY MOTORS V1154BV1 is a refrigeration motor operating at 1.5 HP, 115/230V and 1725 RPM. Designed with a 56Z frame and open drip-proof enclosure, this motor is suitable for evaporative coolers, pumps and other devices in high-moisture environments. It features a capacitor start/capacitor run design and is thermally protected.

• Designed for evaporative coolers and pumps
• Operates at 1.5 HP and 1725 RPM
• Features a 56Z frame and open drip-proof enclosure

Product Highlights

This Century refrigeration motor is designed for high-moisture environments and provides reliable power for various applications.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: V1154BV1
• Country of Origin: Mexico

Technical Specifications

• MPN: V1154BV1
• Brand: CENTURY MOTORS
• Output HP: 1.5 Hp
• Output KW: 1.1 kW
• Voltage: 115/230 V
• Speed: 1725 rpm
• Service Factor: 1
• Frame: 56Z
• Enclosure: Drip Proof
• Thermal Protection: Thermally Protected
• Efficiency: 75 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 14/7 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: Y
• Number of Speeds: 1
• Electrical Type: Capacitor Start Capacitor Run
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible
• Mounting: Resilient Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 13.32 in
• Frame Length: 8.65 in
• Shaft Diameter: 0.875 in
• Shaft Extension: 2.25 in
• UPC: 786674075031
• Phase: 1
• Motor Type: Capacitor-Start, Capacitor Run
• Base: Cradle Base
• Bearings: Ball Bearings
• Application: Evaporative coolers, pumps, and other devices in high-moisture environments
• Rated Load (HP): 1 1/2
• AC Frequency Rating: 60 Hz
• Enclosure Type: DP (Drip-Proof)
• Base RPM: 1800
• AC Motor Type: Induction/Asynchronous
• Nominal Rated Input Voltage: 115 V, 230 V
• Model: V1154BV1
• NEMA Frame Suffix: Z (Non-Standard NEMA Shaft)
• AC Phase: Single Phase
• Shaft dimensions (dia x len): 0.875" x 2.25"
• Full Load Amps: 14/7 A
• Mounting Type: Base-Mounted
• Reversible/Non-Reversible: Reversible
• Enclosure Material: Rolled Steel
• Product Type: Capacitor Start/Capacitor Run
• Volts: 230
