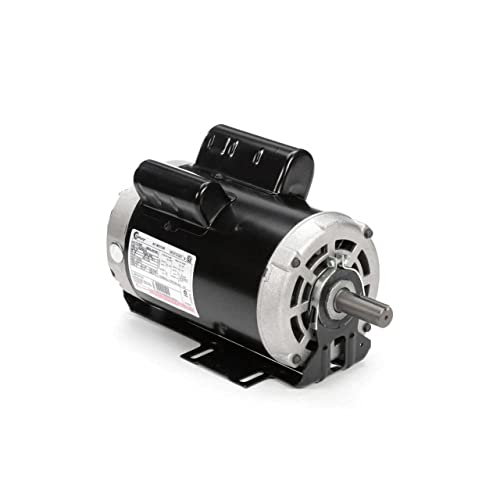

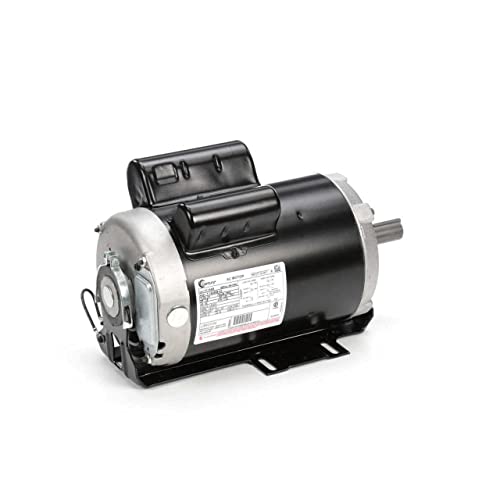

Century V1154B Evaporative Cooler Motor 1-1/2 HP 115/230V

Product Description

The Century V1154B evaporative cooler motor is a reliable choice for cooling applications. With a power rating of 1-1/2 HP and operating at 115/230V, it ensures efficient and consistent performance.

• Designed for evaporative coolers
• Open drip-proof enclosure
• Capacitor-start motor design

Product Highlights

This evaporative cooler motor features a 1-1/2 HP power rating and operates at 115/230V. It has a 56Z frame and a cradle base mounting type. The motor is protected with an automatic thermal protection system and operates with Class B insulation.

Product Information

Standard Information

• Brand: Century
• MPN: V1154B

Technical Specifications

• Power: 1-1/2 HP
• Voltage: 115/230V
• Frame: 56Z
• Frequency: 60 Hz
• Phase: 1
• Full Load Amps: 15.0/7.5
• Thermal Protection: Auto
• Insulation Class: B
• Shaft Rotation: CW/CCW
• Shaft Diameter: 7/8 inches
• Shaft Length: 2-1/4 inches
• Max Ambient Temperature: 40 degrees C
