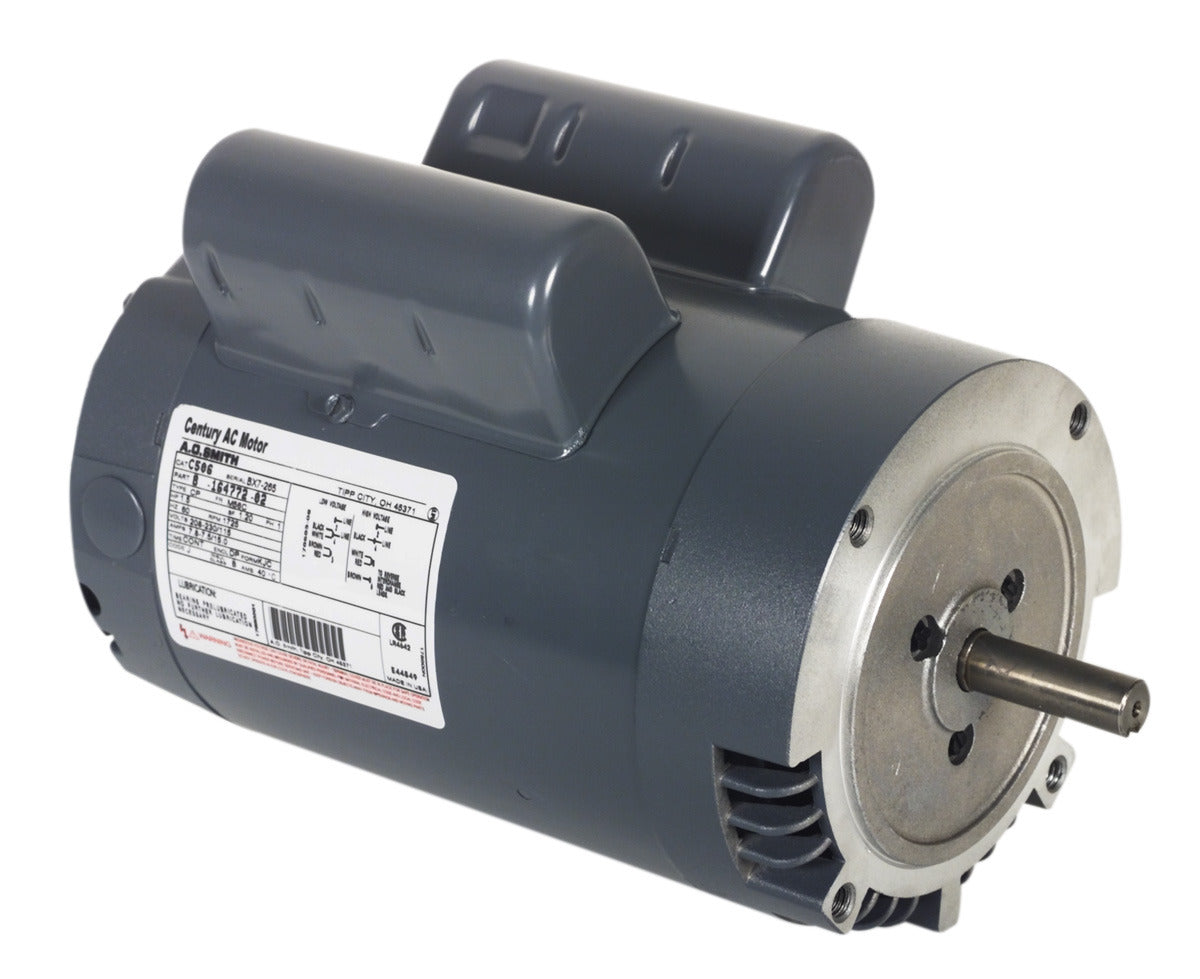

Century UV106 General Purpose Motor 2 HP 208-230/115V 1745 RPM

Product Description

The Century UV106 General Purpose Motor is designed for various industrial applications. This reliable motor offers a range of features that ensure its efficiency and durability.

• Capacitor Start, Capacitor Run
• 2 HP motor operating at 208-230/115V
• Drip proof enclosure for extended durability

Product Highlights

This Century motor is UL recognized and CSA certified, ensuring safety and quality. The motor's permanent lubrication and double-sealed bearings extend its lifespan. Its heavy-duty rolled steel construction enhances durability.

Product Information

Standard Information

• Brand: Century
• MPN: UV106
• Motor Type: General Purpose
• Phase: 1
• Voltage: 208-230/115
• Amperage: 10.0-10.2/20.4
• Enclosure: Drip Proof
• Material: Rolled Steel

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• HP: 2
• KW: 1.5
• RPM: 1745
• Frame: R145TC
• Rotation: Reversible Counterclockwise
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Shaft Type: Keyed
• Shaft Extension: 2.13 inches
• Shaft Diameter: 0.875 inches
• UL Recognition: Yes
• CSA Certification: Yes
• Ambient Temperature: 40 degrees Celsius
• Insulation Class: B
• Frequency: 60 Hz
• Service Factor: 1.15
• Number of Speeds: 1
