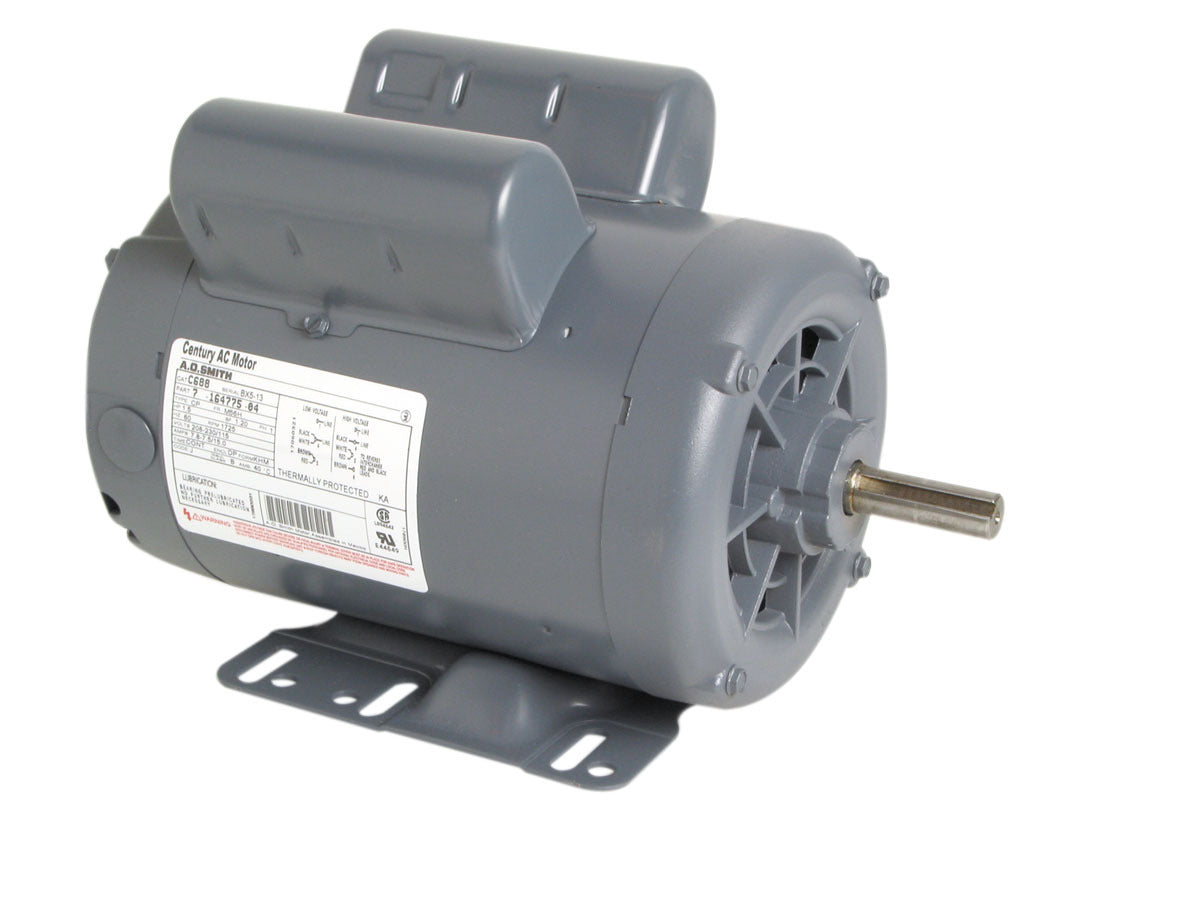

Century UV101 General Purpose Motor 1.5HP 1725RPM

Product Description

The Century UV101 General Purpose Motor is reliable and efficient with Capacitor Start Capacitor Run. With 1.5 horsepower and 1725 RPM, the UV101 excels in durability and performance thanks to its heavy-duty, rolled steel construction. UL recognition and CSA certification ensure this motor is safe for various applications.

• Capacitor Start Capacitor Run
• Heavy-duty rolled steel construction
• UL and CSA certified for safety

Product Highlights

Century UV101 General Purpose Motor features premium efficiency and permanently lubricated, double-sealed bearings for extended motor life. Operates at 115/208-230 volts @60Hz, with selective counterclockwise rotation.

Product Information

Standard Information

• Brand: Century
• MPN: UV101
• Type: General Purpose Motor
• Country of Origin: Mexico

Technical Specifications

• HP: 1.5
• RPM: 1725
• Voltage: 115/208-230
• Frame: 145T
• Enclosure: Drip Proof
• Phase: 1
• Amperage: 13.0/7.0-6.5
• Bearing DE Type: Ball
• Bearing ODE Type: Ball
• Mounting: Rigid Base
• Shaft Type: T
• Shaft Extension: 2.25 inches
• Shaft Diameter: 0.875 inches
• Certification: UL Recognized, CSA
