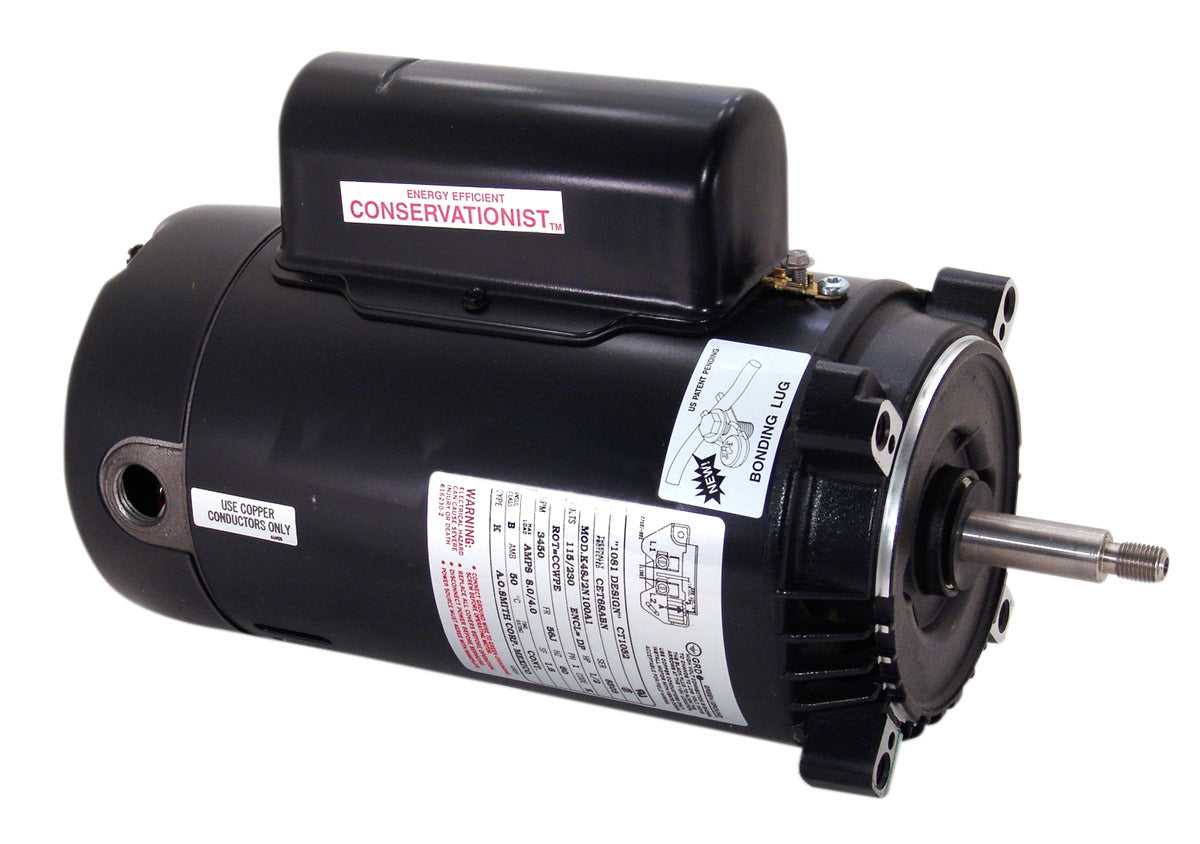

Century UST1252 Pool and Spa Motor 2 1/2 HP 208-230V

Product Description

The Century UST1252 Pool and Spa Motor, with the MPN UST1252, offers reliable and efficient performance for pool and spa applications. This motor provides the necessary power and durability to keep your water circulating smoothly.

• 2 1/2 HP
• Cap Start
• Single Phase

Product Highlights

This Century pool pump motor is designed for capacitor-start applications. It offers a power output of 2 1/2 HP and operates on a voltage range of 208-230V AC. The motor features a continuous duty cycle and open drip-proof enclosure, ensuring energy-efficient performance.

Product Information

Standard Information

• Brand: Century
• MPN: UST1252

Technical Specifications

• Electrical Type: Cap Start
• HP: 2 1/2
• Frame: 56J
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230V AC
• Rotation: CCWSE
• Overload: Auto
• Material: Rolled Steel
• Mounting: Round
• Amperage: 12.6-11.4
• Shaft Type: Single
• Height: 11 inches
• Weight: 24 pounds
• Length: 22 inches
• Width: 13 inches
• Standards: CSA, UL
• Max. Ambient Temperature: 50 Degrees C
• Body Diameter: 5.7 inches
• Motor Bearings Type: Ball
• Motor Efficiency: Energy Efficient
• Motor Enclosure Design: Open Dripproof
• Shaft Length: 2 9/16 inches
• RPM Range: 3,001-3,600
• Nameplate RPM: 3,450
• Shaft Material: Stainless Steel
• Shaft Diameter: 5/8 inches
• Overall Length: 15 5/8 inches
• Motor Design: Capacitor-Start/Run
• Motor Application: Pool/Spa Motor
