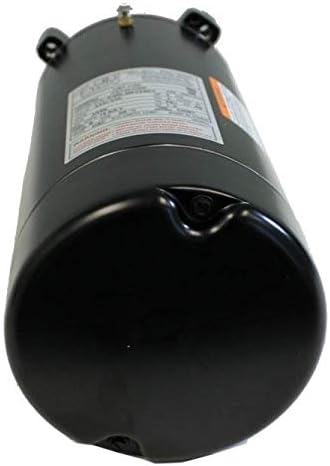

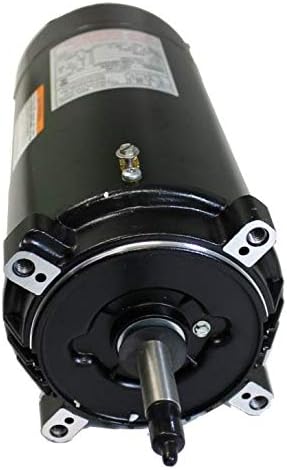

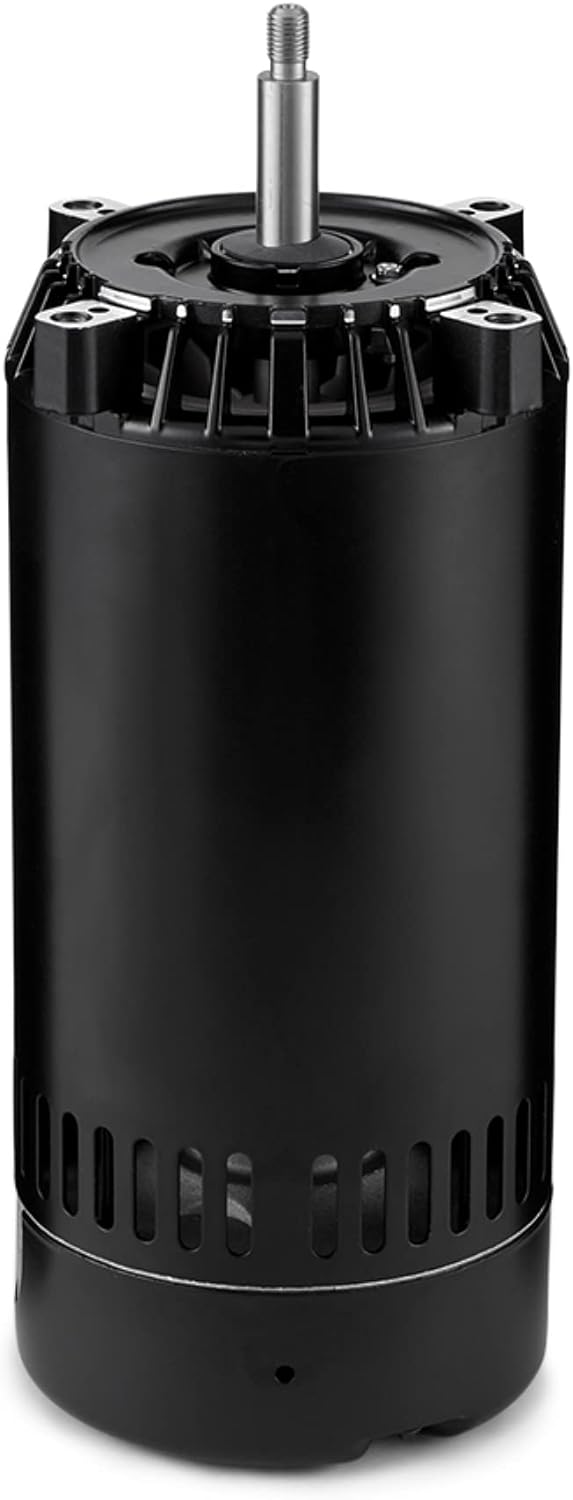

Century UST1152 Electric Motor 1.5 Horsepower 115/230 Volts 56J
Century UST1152 Electric Motor 1.5 Horsepower 115/230 Volts 56J
Century UST1152 Electric Motor 1.5 Horsepower 115/230 Volts 56J
Century UST1152 Electric Motor 1.5 Horsepower 115/230 Volts 56J
Century UST1152 Electric Motor 1.5 Horsepower 115/230 Volts 56J

Century UST1152 Electric Motor 1.5 Horsepower 115/230 Volts 56J

Brand: CENTURY MOTORS
SKU: UST1152
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$315.50
$315.50
$342.46
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Century UST1152 from A.O. Smith is a 1.5 horsepower electric motor designed for pool and spa applications. This motor operates on 115 or 230 volts and has a threaded shaft suitable for various pumps.

  • Auto Protector
  • Sealed Ball Bearings
  • Open Drip Proof

Product Highlights

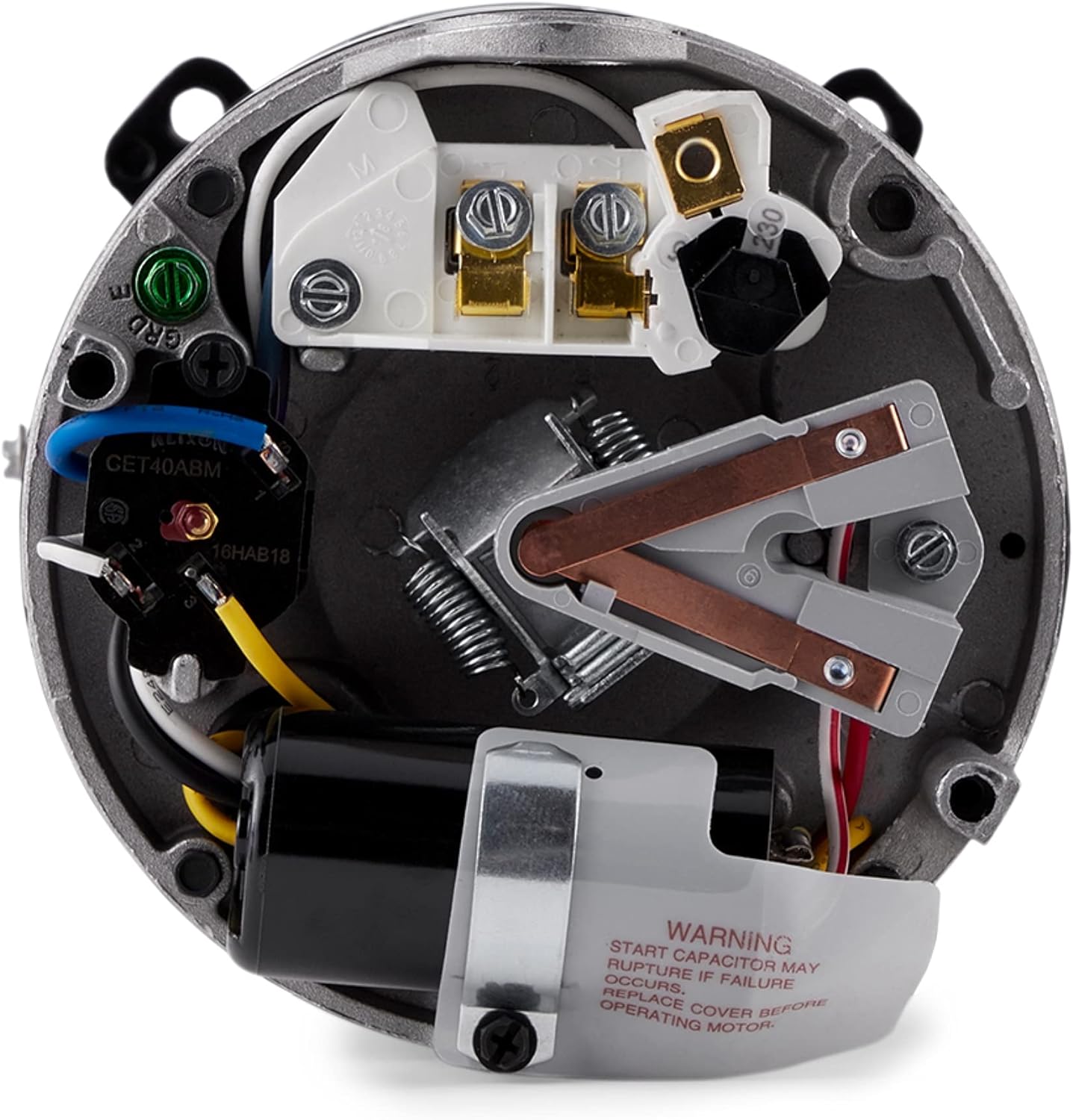

This motor features a 56J frame and is equipped with a capacitor start/capacitor run mechanism. It also includes a stainless steel shaft and operates at 3450 RPM.

Product Information

Standard Information

  • Brand: Century
  • MPN: UST1152
  • Voltage: 115/230 V
  • Horsepower: 1.5 hp

Technical Specifications

  • Frame Size: 56J
  • Amperage: 10.4-9.8/19.6
  • Rotation: CCW Pump End
  • Material: Rolled Steel
  • Diameter: 6.5 inches
  • Enclosure: Open Drip Proof
  • Phase: Single
  • Insulation Class: B
  • Ambient Temperature: 50 degrees C
  • Max Ambient Temperature (F): 122 F
  • RPM: 3450
  • Shaft Type: 7/16 Thread
