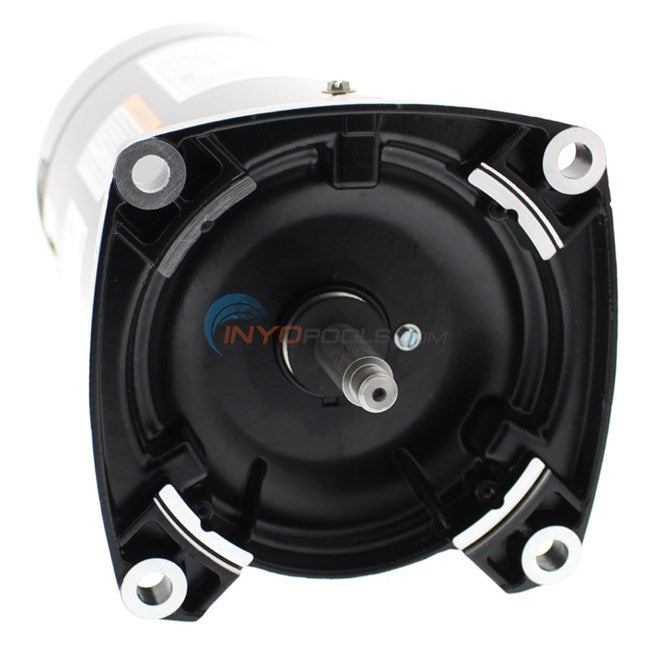

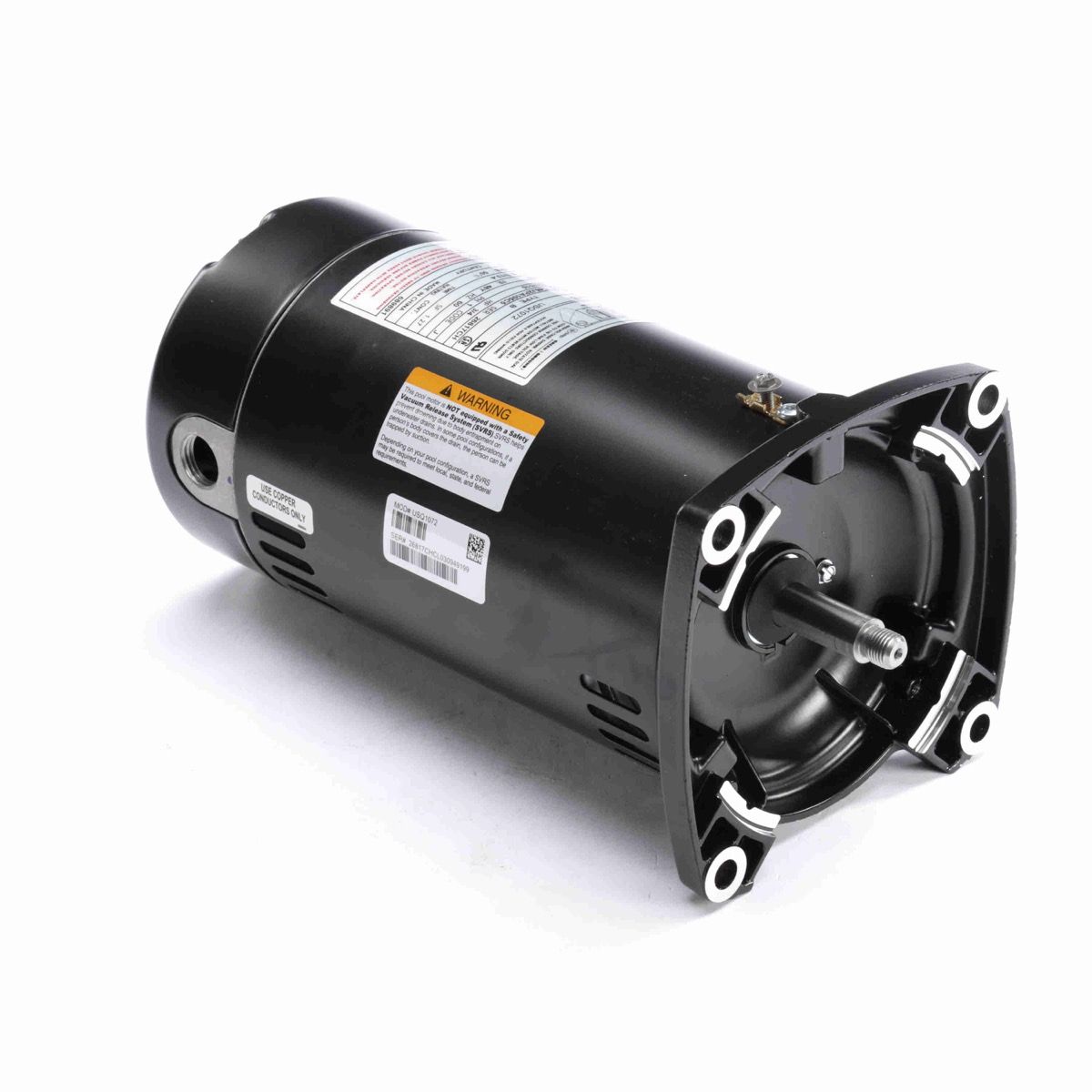

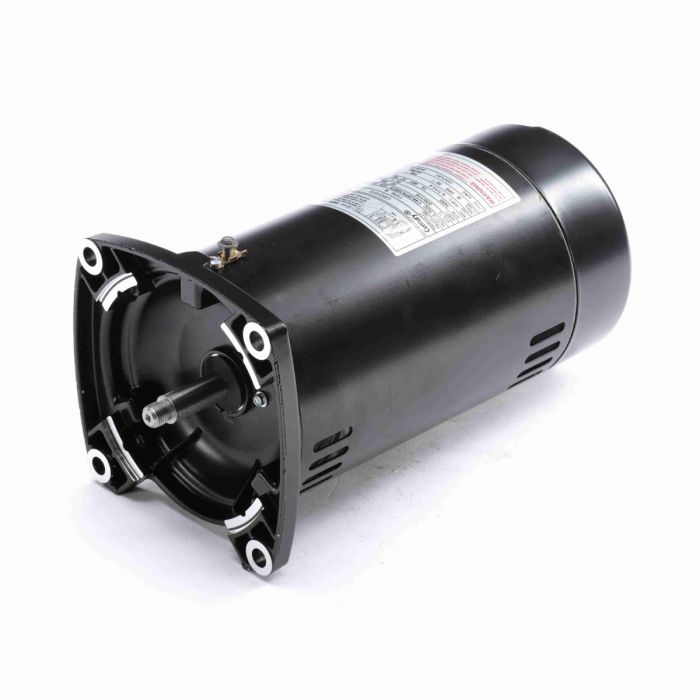

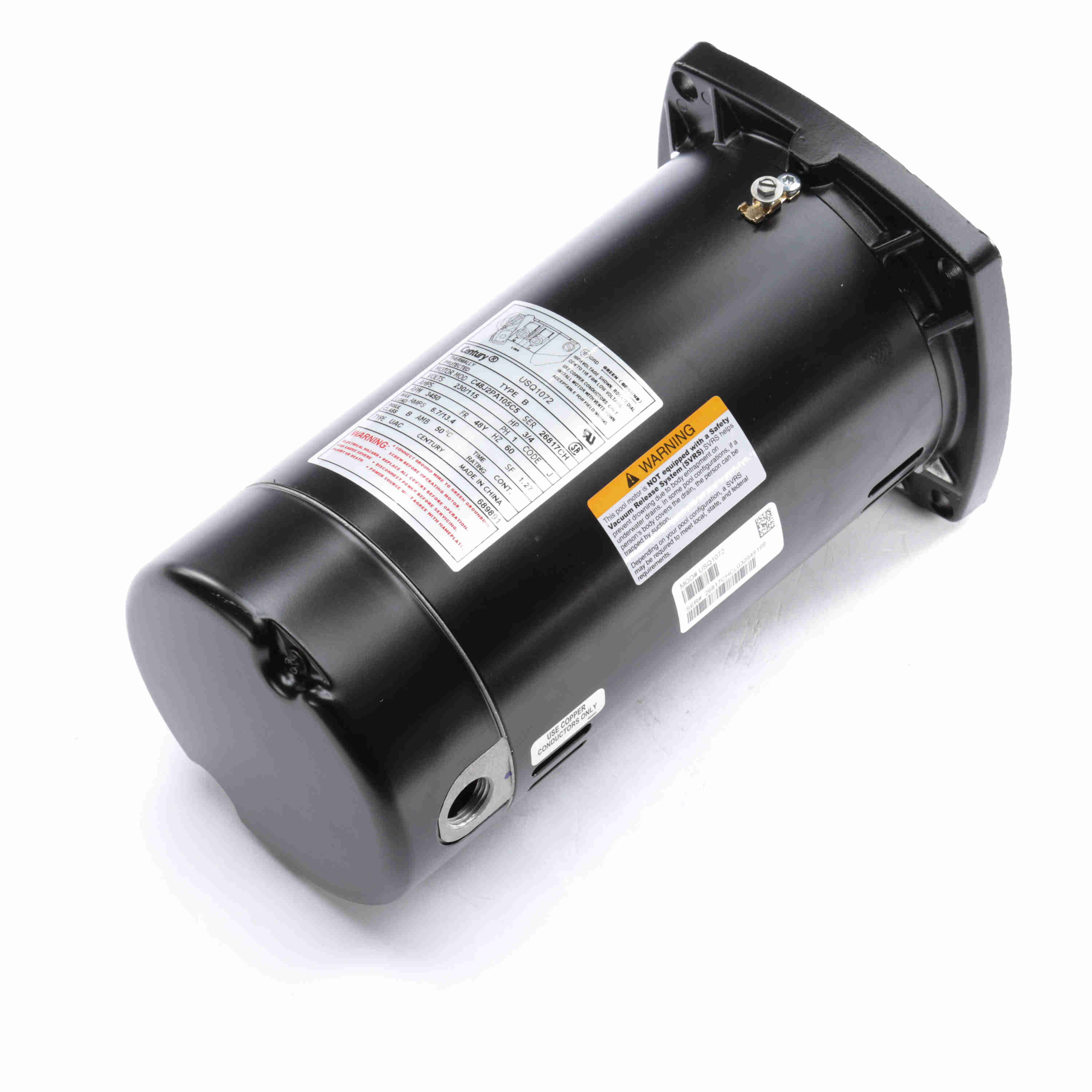

CENTURY MOTORS USQG1072A Pool Pump Motor

Product Description

The CENTURY MOTORS USQG1072A is a single-speed pool pump motor suitable for various pool applications. This model operates at three thousand four hundred fifty revolutions per minute (RPM) and features a forty-eight Y frame with a square flange mount. Protection from overload is built in, ensuring safe operation. The motor also includes sealed ball bearings for durability. The stainless steel threaded shaft and counter-clockwise rotation facing the shaft make it reliable for pool use.

• Operates at three thousand four hundred fifty RPM.
• Designed with a forty-eight Y frame and square flange mount.
• Includes automatic overload protection for safety.

Product Highlights

This motor is designed specifically for pool pump applications and ensures efficient operation through its technical specifications.

Product Information

Standard Information

• Brand: Century
• Manufacturer Part Number: USQ1072A

Technical Specifications

• Horsepower: three-fourths HP
• Voltage: one hundred fifteen / two hundred thirty V
• Amperage: thirteen point four / six point seven A
• RPM: three thousand four hundred fifty
• Frame: forty-eight Y
• Rotation: counter-clockwise
• Shaft Diameter: five-eighths
• Hertz: sixty Hz
• Service Factor: 1.27
• Phase: one
• Enclosure Type: Open/Drip Proof
• Mounting Location: Square Flange
• Bearing Type: Ball
• Motor Type: Capacitor Start
• Certifications: UL and CSA
• Ambient Temperature: fifty degrees Celsius
