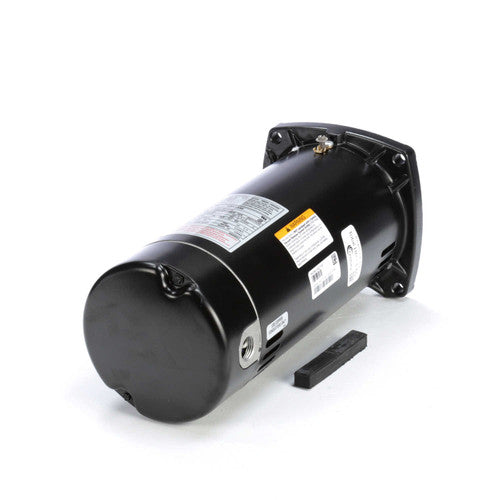

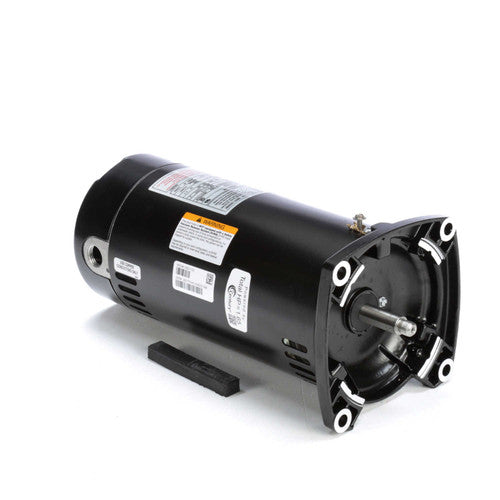

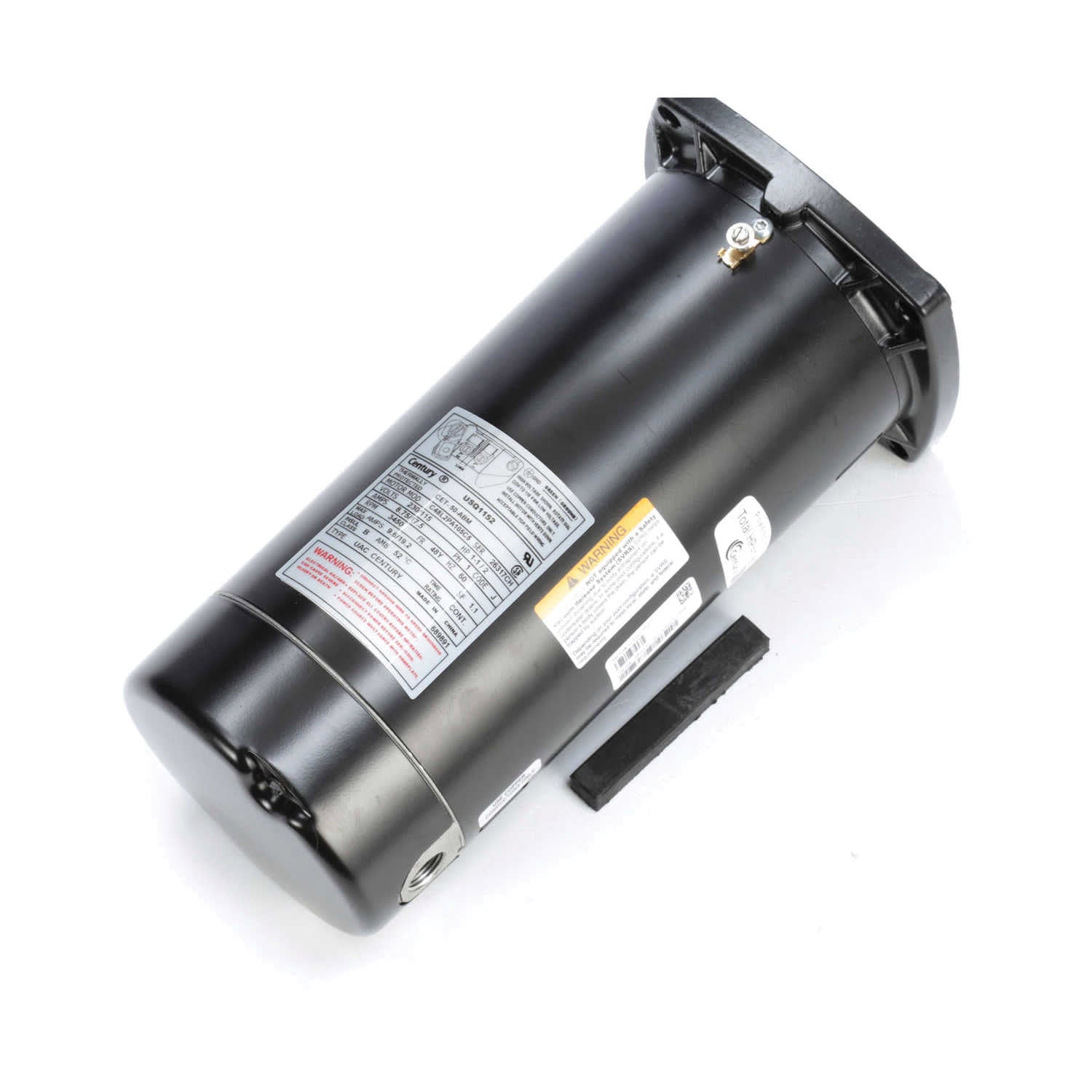

Century Motors USQ1152 centrifugal motor 1.5 hp 115/230V 1-speed 48Y frame square flange

Product Description

The CENTURY MOTORS USQ1152 is a 1.5 HP centrifugal motor designed for pool pump applications. Operating at 115/230V with a single speed of 3450 RPM, this motor features a 48Y frame and a 1.1 service factor. Its Open Drip Proof (ODP) enclosure and square flange mounting make it suitable for residential swimming pool systems, providing reliable water circulation for both in-ground and above-ground pools. This single-phase motor is engineered for efficient and consistent performance.

• 1.5 Horsepower with dual voltage (115/230V) and single speed operation.
• Features a 48Y frame, 1.1 service factor, and Open Drip Proof (ODP) enclosure.
• Designed with a square flange for pool pump applications, including residential in-ground and above-ground systems.

Product Highlights

This CENTURY MOTORS USQ1152 motor is a 1.5 HP, 115/230V, single-speed unit with a 48Y frame and square flange, ideal for pool pump replacement.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: USQ1152
• Country of Origin: United States

Technical Specifications

• Brand: CENTURY MOTORS
• MPN: USQ1152
• Horsepower: 1.5 HP
• Voltage: 115/230V
• Speed: 1-Speed
• Service Factor: 1.1
• Frame: 48Y
• Type: Centrifugal Motor
• UPC: 786674033253
• Global Trade Identification Number: 00786674033253
• RPM: 3450 RPM
• Material: Alloy Steel
• Phase: Single Phase
• Enclosure: Open Drip Proof (ODP)
• Frequency: 60 Hz
• Bearings: Ball Bearings
• Rotation: CCW Pump End
• Shaft Type: Threaded Shaft
• Current: 19.2/9.6 A
• Total Horsepower: 1.65 HP
• Flange Type: Square
• Output kW: 1.1 kW
• Thermal Protection: Automatic
• Ambient Temperature: 50 °C
• Duty: Continuous
• Insulation Class: B
• UL Certification: Recognized
• CSA Certification: Y
• Electrical Type: Cap Start Motor
• Starting Method: Across The Line
• Poles: 2
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 13.82 in
• Frame Length: 9.94 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 0.906 in
• Motor Diameter: 5.625 inches
