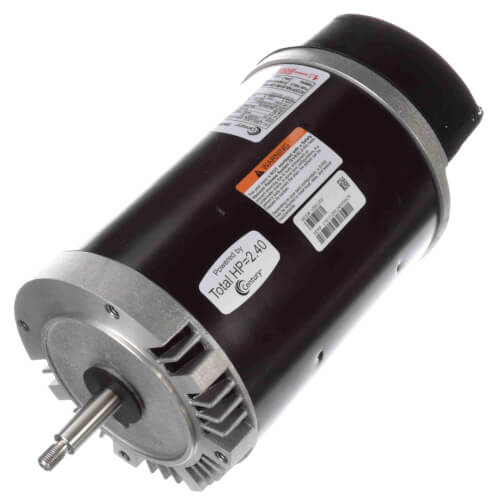

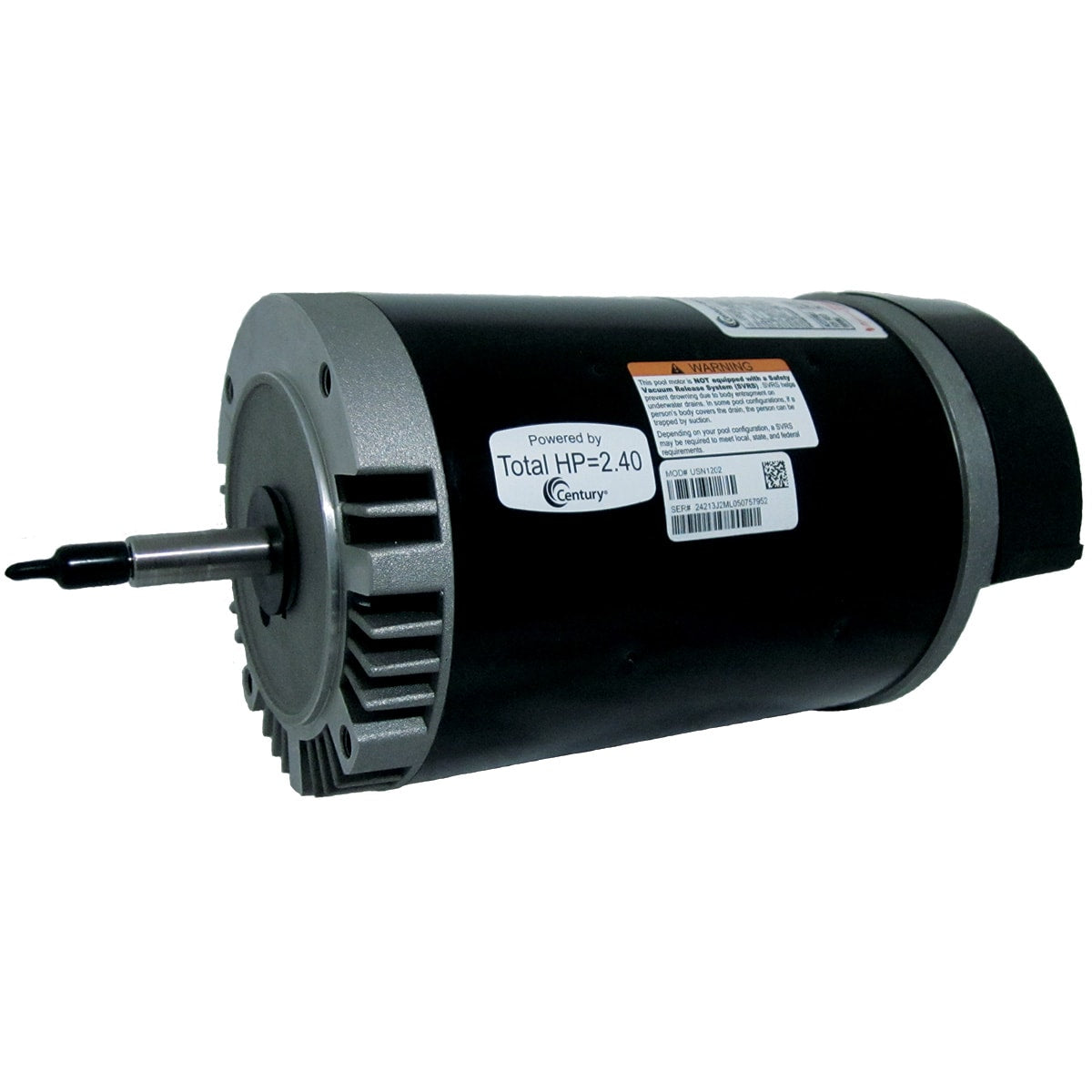

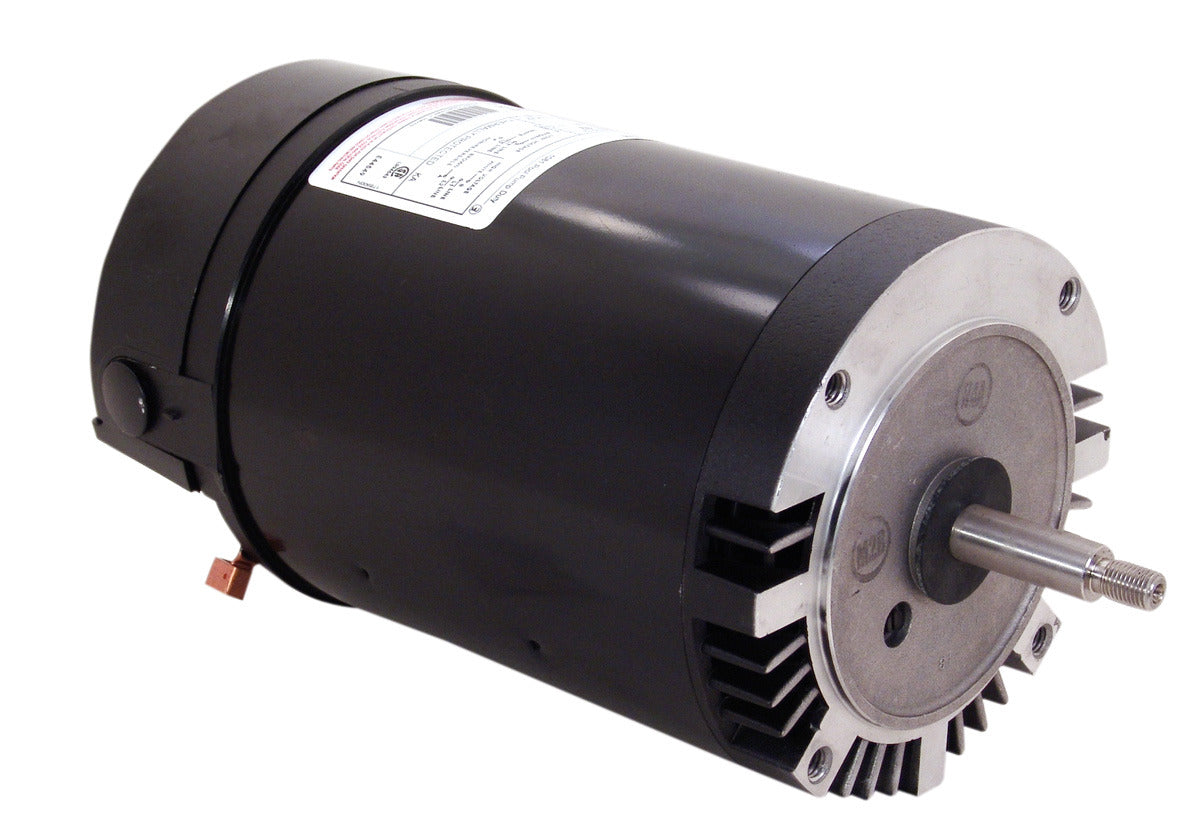

Century USN1202 Pool Pump Motor 2HP 1 Phase 60Hz 208-230/115V Y56J

Product Description

The Century USN1202 Pool Pump Motor is a robust 2HP motor designed for pool and spa applications. It operates on a single-phase power supply at 60Hz and is compatible with voltages ranging from 208-230V or 115V. Featuring a durable Y56J frame, this motor ensures reliable performance and long-lasting functionality.

• Energy efficient
• Low noise
• Switchless

Product Highlights

This Century pool pump motor boasts superior corrosion resistance and enhanced winding life thanks to its e-coated main frame and cool running design. It also features sealed ball bearings for greater durability.

Product Information

Standard Information

• Brand: Century
• MPN: USN1202

Technical Specifications

• Horsepower: 2 HP
• Voltage: 208-230V/115V
• Frame: Y56J
• Phase: 1
• Enclosure: ODP (Open Dripproof)
• Diameter: 6.5 inches
• Rotation: CCWSE
• Amperage: 13.0-11.8
• Shaft Type: Single
• Service Factor: 1.20
• Bearings: Ball
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 50 degrees Celsius
