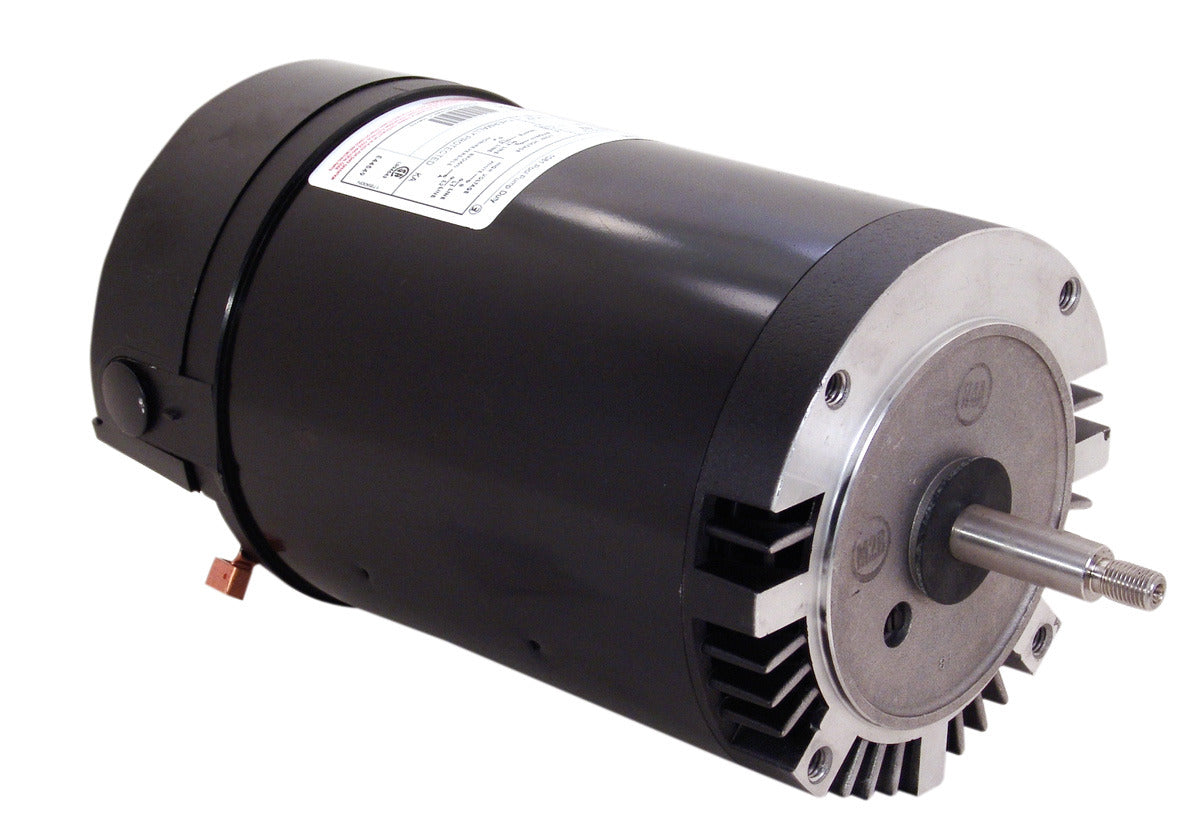

Century USN1152 Pool and Spa Motor 1 1/2 HP 56J Frame 3,450 RPM

Product Description

The Century USN1152 Pool and Spa Motor is designed for enhanced performance in pool and spa applications. Constructed from rolled steel, this motor provides durability and reliable operation. Operating on a single phase, it supports voltage configurations of 208-230/115V with automatic overload protection. With a counterclockwise rotation and C-Face mounting, it is suitable for various pump installations.

• 1 1/2 HP motor with 56J frame
• Open Drip Proof (ODP) enclosure
• Smooth operation with auto overload protection

Product Highlights

The Century USN1152 motor offers reliable performance for your pool and spa needs. Designed for continuous duty, it features a permanent split capacitor for energy efficiency and a robust rolled steel frame to withstand harsh environments.

Product Information

Standard Information

• Brand: Century
• Model: USN1152
• Use: Pool and Spa Motor

Technical Specifications

• Electrical Type: Cap Start
• HP: 1 1/2
• Frame: 56J
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230/115V
• Rotation: CCWSE
• Overload: Auto
• Material: Rolled Steel
• Mounting: C-Face
• Amperage: 11.0-10.2/20.4
• Shaft Type: Single, Threaded 7/16-20 UNF-2A RH
• Height: 9.5 inches
• Weight: 33 lb
• Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
• RPM Range: 3,001-3,600
• Standards: CSA, UL
• Nameplate RPM: 3,450
• Motor Design: Permanent Split Capacitor
• Max. Ambient Temp: 50 degrees C
• Shaft Length: 2 9/16 inches
• Motor Application: Pump
• Motor Bearings: Ball
• Motor Frame Material: Steel
• Motor Shaft Material: Stainless Steel
• Motor Thermal Protection: Auto
• Country of Origin: Mexico
