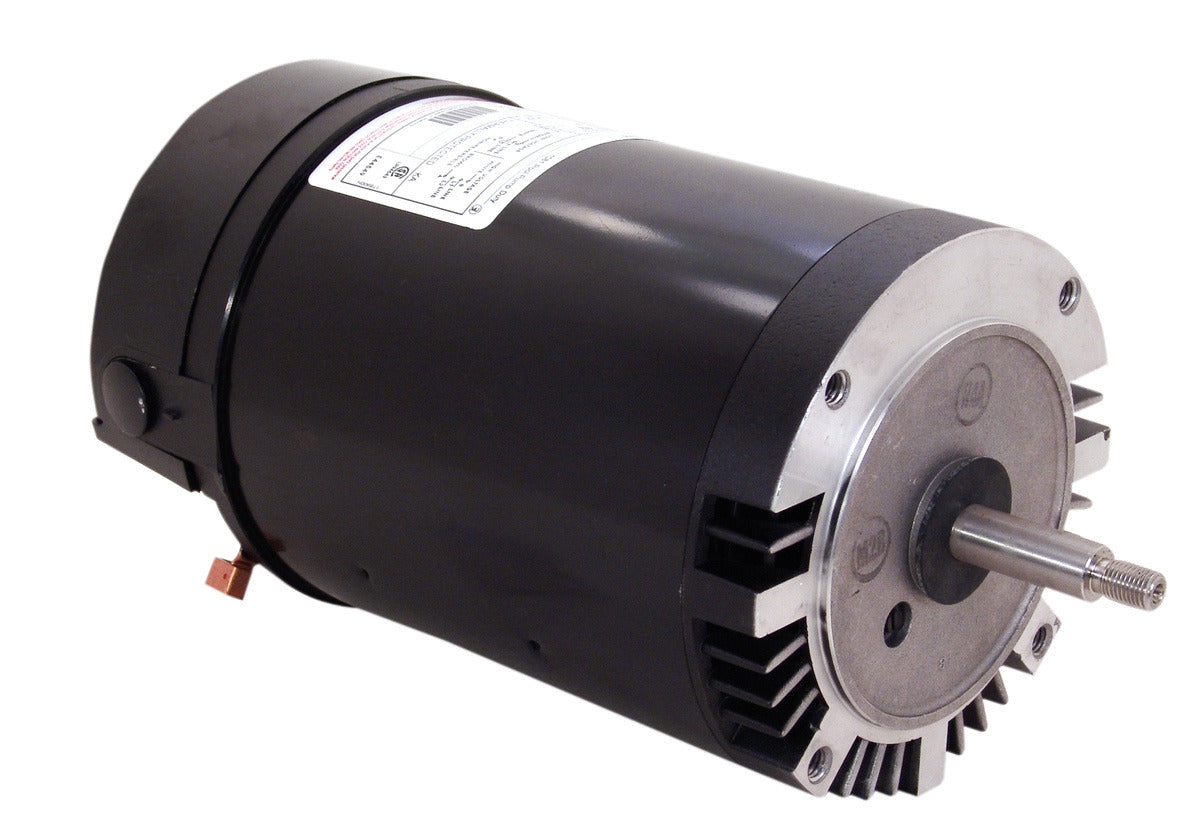

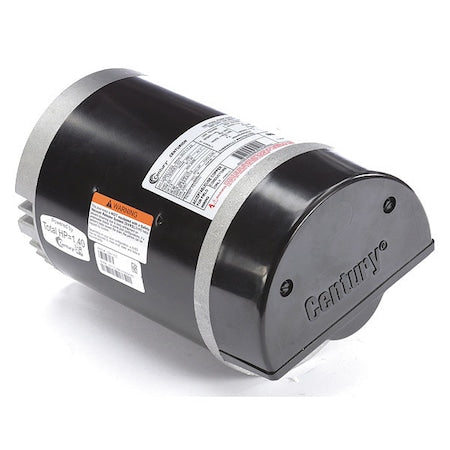

Century USN1102 Pool and Spa Motor 1 HP 56J Frame

Product Description

The Century USN1102 is a 1 HP Pool and Spa Motor. Designed for effective water circulation, it boasts a durable construction and reliable performance.

• Voltage: 208-230/115 V
• Single-phase motor with automatic overload protection
• Energy-efficient and continuous duty

Product Highlights

This 56J frame motor operates with a permanent split capacitor. It is suitable for residential and commercial pool and spa applications.

Product Information

Standard Information

• Brand: Century
• MPN: USN1102

Technical Specifications

• Electrical Type: Cap Start
• HP: 1
• Frame: 56J
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230/115 V
• Rotation: CCWSE
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting Type: C-Face
• Amperage: 8.5-7.8/15.6
• Shaft Type: Single
• Duty Cycle: Continuous
• Finish: Black
• Height: 9.5 inches
• Ins. Class: B
• Length Less Shaft: 10.5625 inches
• Max. Ambient Temp: 50 degrees C
• Motor Bearings: Ball
• Motor Design: Permanent Split Capacitor
• Motor Enclosure Design: Open Dripproof
• Motor Frame Material: Steel
• RPM Range: 3,001-3,600
• Nameplate RPM: 3,450
• No. of Speeds: 1
• Overall Length: 13.125 inches
• Shaft Length: 2.5625 inches
• Motor Shaft Rotation: CCWSE
• Motor Flange Material: Aluminum
• Motor Sub Application: Pool and Spa Pump
• Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
• Motor Efficiency Group: Energy Efficient
• Motor Mounting Position: Horizontal
• Motor Thermal Protection: Auto
• Country of Origin: Mexico
