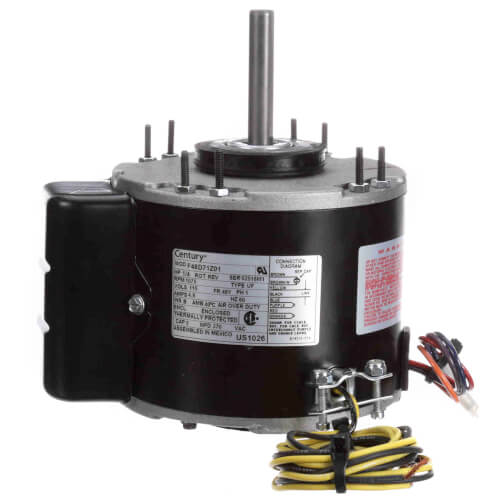

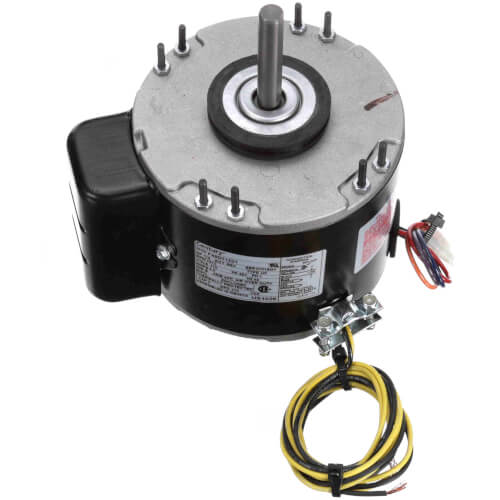

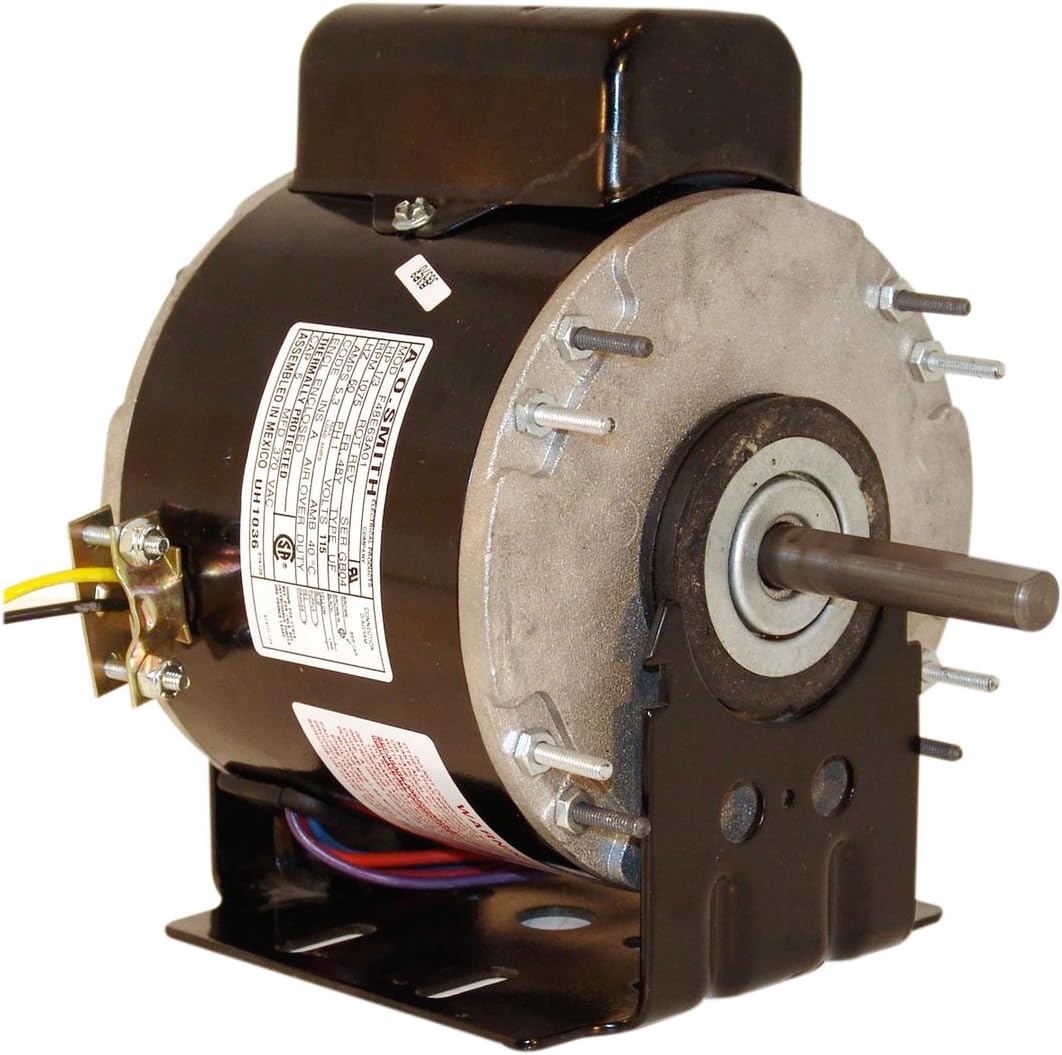

Century US1026 1/4 HP TEAO Enclosure 1075 RPM Sleeve Bearing Unit Heater Motor

Product Description

The Century US1026 is a 1/4 HP unit heater motor designed for various applications requiring reliable performance. This motor operates at 1075 RPM and is enclosed in a TEAO casing. With a reversible rotation and sleeve bearing construction, this motor is a versatile choice for HVAC systems and more.

• 1/4 HP motor
• 1075 RPM speed
• TEAO enclosure

Product Highlights

This unit heater motor features a thermally protected design, making it suitable for continuous duty and air-over operations. It is equipped with a sleeve bearing and operates at 115 volts.

Product Information

Standard Information

• Brand: Century
• MPN: US1026
• Model: US1026

Technical Specifications

• Horsepower: 1/4 HP
• Speed: 1075 RPM
• Voltage: 115V
• Amperage: 4.9 Amps
• Enclosure Type: TEAO
• Bearing Type: Sleeve
• Rotation: Reversible
• Mount: Extended Studs
• Frame: 48Y
• Hertz: 60 Hz
• Phase: 1
• Poles: 6
• Speeds: 1
• Motor Orientation: Horizontal
• Overload Protection: Automatic
• Max Ambient Temp: 104 degrees Fahrenheit
• Insulation Class: B
