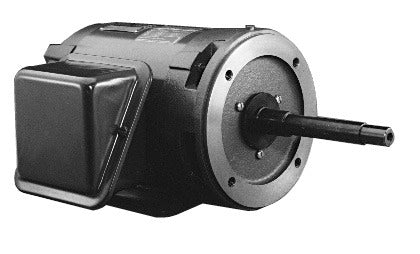

Century UP313 Close Coupled Pump Motor 7.5 HP 230V 1733 RPM

Product Description

The Century UP313 Close Coupled Pump Motor is a reliable solution for various pumping applications. This motor delivers 7.5 HP and operates at 230 volts with a speed of 1733 RPM. Crafted from rolled steel, it offers durability and comes with an open drip proof enclosure.

• 7.5 HP power
• 230 volts capacity
• 1733 RPM speed

Product Highlights

This motor is ideal for close coupled pump applications, providing consistent performance and reliability. It includes a rigid base for secure mounting and has ball bearings for smooth operation.

Product Information

Standard Information

• Brand: Century
• MPN: UP313
• Country of Origin: Mexico
• Weight: 123 lbs

Technical Specifications

• Electrical Type: Capacitor Start Capacitor Run
• Horsepower: 7.5 HP
• KW: 5.6
• RPM: 1733
• Frame: 215TCZ
• Enclosure: Open Drip Proof
• Phase: 1
• Voltage: 230
• Rotation: Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 34.5
• Shaft Type: Keyed
• Shaft Extension: 7.62
• Shaft Diameter: 1.25
• Duty: Continuous
• Frequency: 60
• Insulation Class: F
• Poles: 4
• Service Factor: 1.15
• Start Method: Across The Line
• Ambient Temperature: 40 degrees C
• Certifications: CE, CSA, UL Recognized
