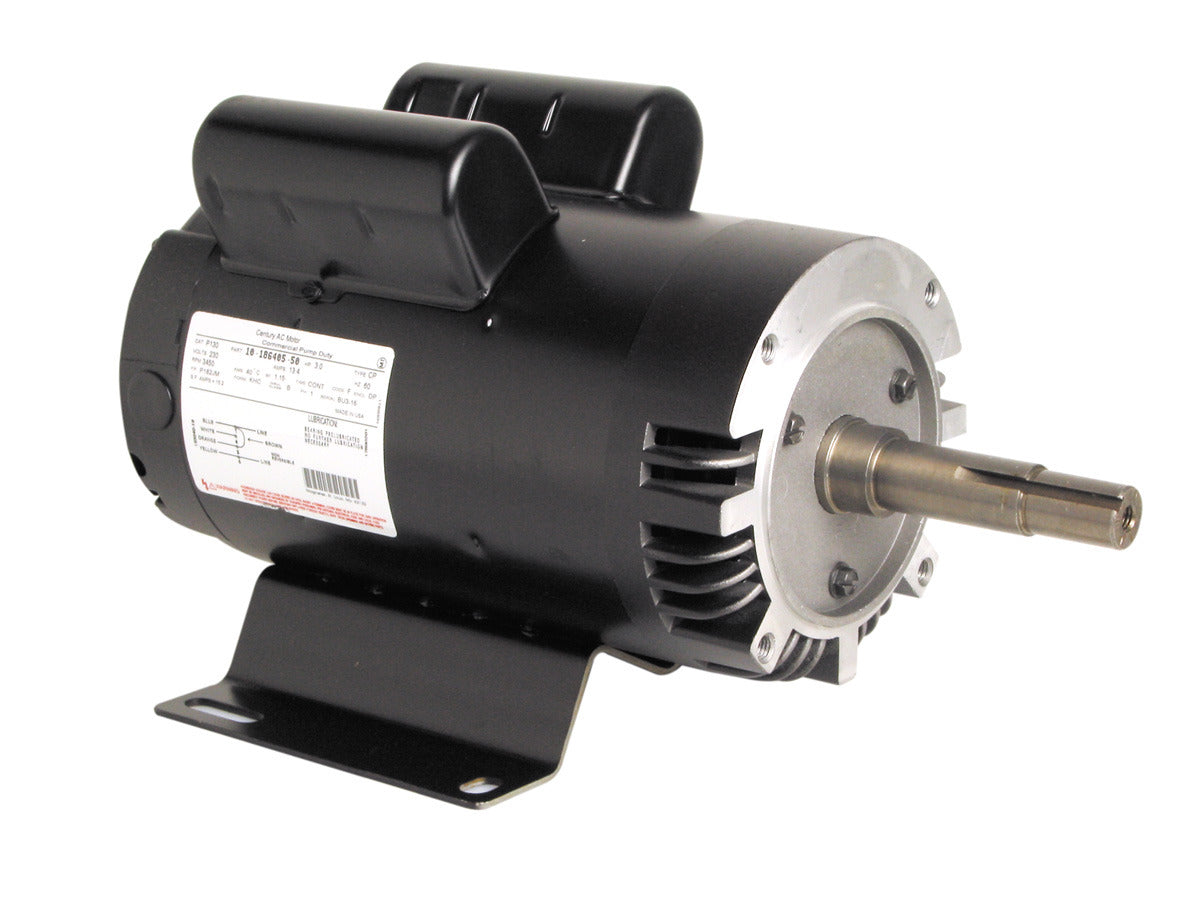

Century UP140 Close Coupled Pump Motor 5 HP (1 Unit)

Product Description

The Century UP140 is a five horsepower close coupled pump motor designed for various applications. It operates on a voltage of two hundred thirty volts with a single-phase, capacitor start, and capacitor run electrical type. The Y184JM frame ensures durability, while the drip-proof enclosure protects the unit from moisture.

• Motor type: Close coupled pump motor
• Speed: 3450 RPM
• Amperage: 20.0 A

Product Highlights

This motor features double-sealed ball bearings for long life and reliable performance. It is UL recognized and CSA certified, making it suitable for diverse applications. The Class F insulation supports a maximum temperature rating with a service factor of 1.15 on sinewave power.

Product Information

Standard Information

• Motor Type: Capacitor Start, Capacitor Run
• Phase: 1

Technical Specifications

• Power: 5 HP
• Voltage: 230 V
• Frame Size: Y184JM
• Speed: 3450 RPM
• Shaft Diameter: 1.25 inches
• Overload Protection: None
• Mounting Type: Rigid Base
• Weight: 53 lbs
