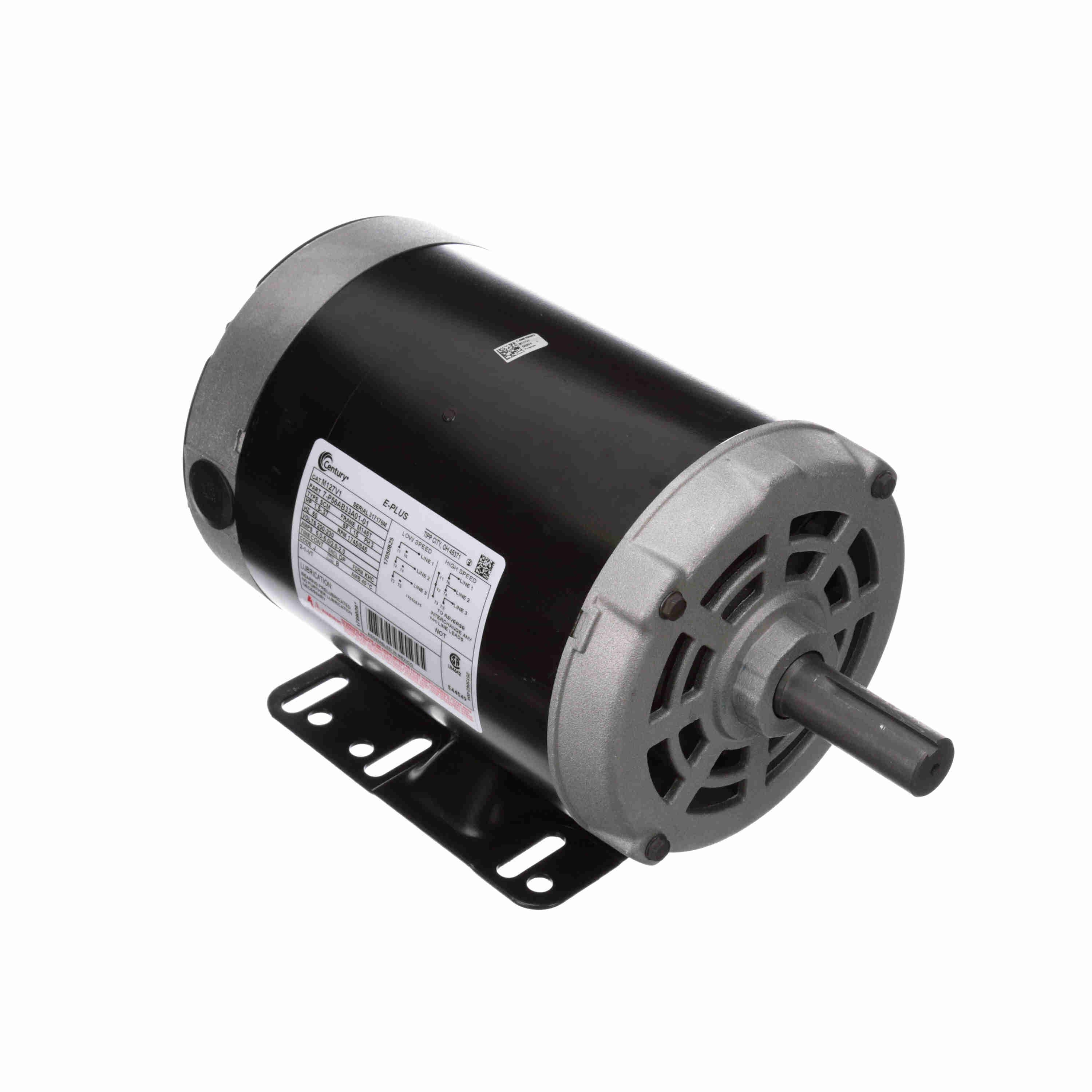

Century UM127V1 General Purpose Motor 1.5-.37 HP

Product Description

The Century UM127V1 is a general-purpose motor designed for high versatility and reliability. This three-phase motor operates at a voltage range of two hundred to two hundred thirty volts and has a power rating of one point five to zero point thirty-seven horsepower. It features a durable construction with a drip-proof enclosure.

• UL recognized and CSA certified for safe operation
• Permanently lubricated sealed bearings for extended lifespan
• Reversible counterclockwise rotation for flexible installation

Product Highlights

This motor is suitable for a variety of applications, ensuring consistent performance in demanding settings.

Product Information

Standard Information

• Brand: Century
• Frame Size: M145T

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Multi-Speed
• HP: 1.5-0.37
• KW: 1.1
• RPM: 1745
• Enclosure: Drip Proof
• Amperage: 5.0-5.0/2.0-2.0
• Shaft Diameter: 0.875 inches
• Shaft Length: 2.310 inches
• Material: Rolled Steel
• Mounting: Rigid Base
• Direction of Rotation: Reversible Counterclockwise
