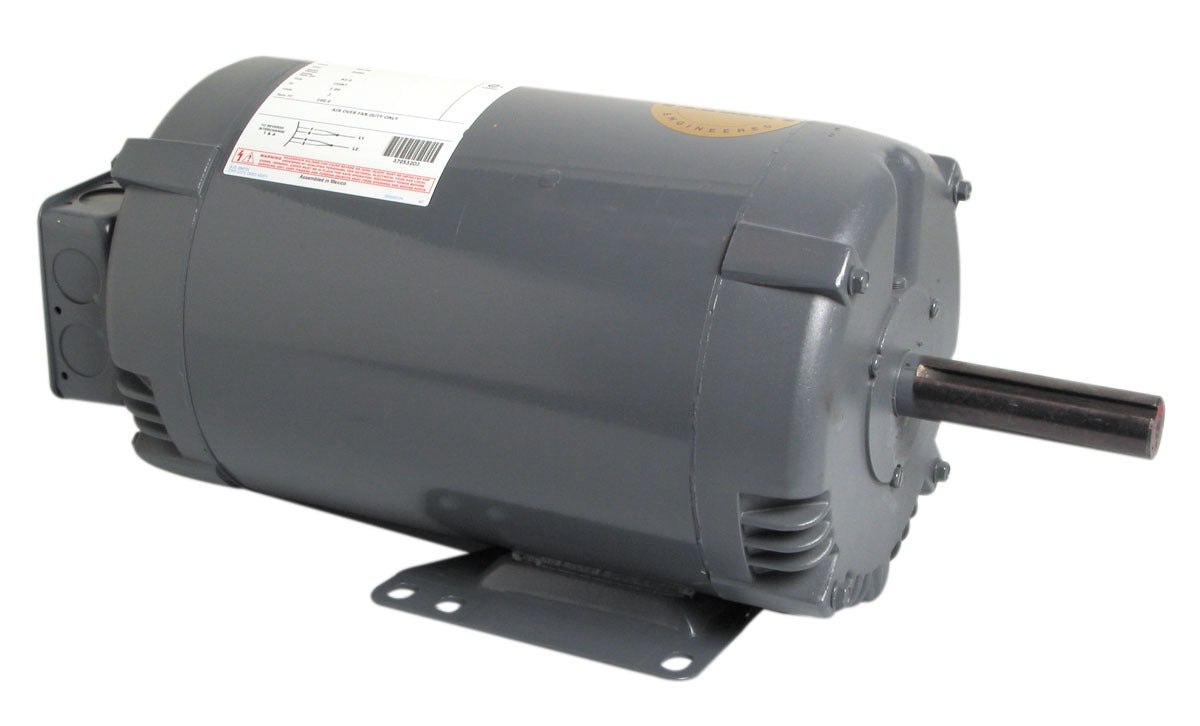

Century UK321 Crop Dryer Motor 10 HP 7.5 KW 3500 RPM 215TZ Frame

Product Description

The Century UK321 Crop Dryer Motor is a high-performance motor designed for industrial and agricultural applications. It features a permanent magnet DC electrical type, delivering 10 horsepower and 7.5 kilowatts of power. With a 215TZ frame and open drip proof enclosure, it ensures reliable operation in demanding environments.

• 10 HP and 7.5 KW power output
• 3500 RPM rotational speed
• Rigorous build with rolled steel material

Product Highlights

Ideal for crop drying and various farm duty applications, the Century UK321 motor emphasizes durability and efficiency. Its selective counterclockwise rotation and single phase operation make it a versatile choice for different setups.

Product Information

Standard Information

• Brand: Century
• MPN: UK321

Technical Specifications

• Electrical Type: DC Permanent Magnet
• Power: 10 HP
• KW: 7.5
• RPM: 3500
• Frame: 215TZ
• Enclosure: Open Drip Proof
• Phase: Single Phase Operation
• Voltage: 200-230
• Rotation: Selective Counterclockwise
• Overload Protection: None
• Material: Rolled Steel
• Bearings: Ball/Ball
• Amperage: 44.5-41
• Shaft Type: Single Special Extension
• Shaft Extension: 4.5 inches
• Shaft Diameter: 1.125 inches
• Ambient Temperature: 50°C
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: F
• Poles: 2
• Service Factor: 1
• Start Method: Across The Line
• Certification: UL Recognized, CSA Certified
