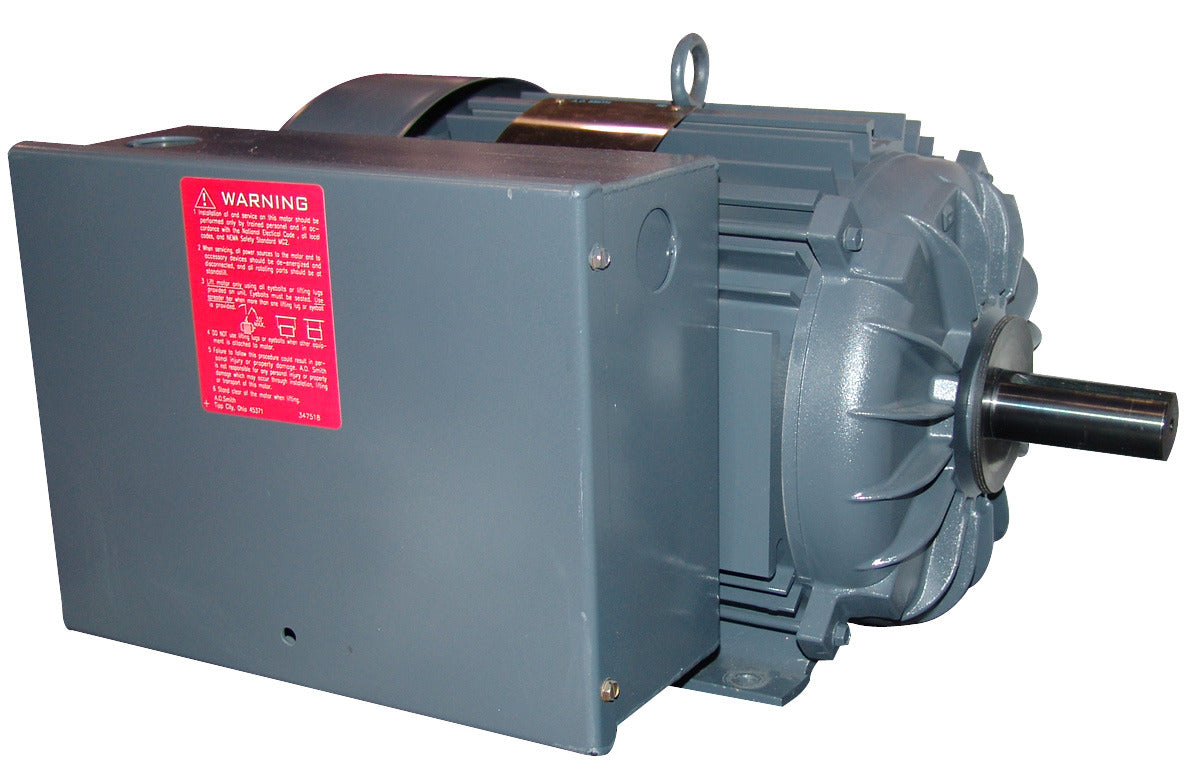

Century UK301 General Purpose Farm Duty Motor 7.5 HP 230V 1740 RPM

Product Description

The Century UK301 General Purpose Farm Duty Motor offers reliable performance for various agricultural applications. With a horsepower of 7.5, this motor runs at 1740 RPM and operates on 230V. Ideal for demanding farm environments, it combines efficient power with a sturdy build.

• High starting torque
• Removable condensate drain plugs
• Manual reset thermal protector

Product Highlights

Century's UK301 motor provides strong and reliable power for farm duty tasks. High starting torque and corrosion-resistant parts make it suitable for various applications.

Product Information

Standard Information

• Brand: Century
• MPN: UK301

Technical Specifications

• Electrical Type: Capacitor Start Capacitor Run
• Horsepower: 7.5
• KW: 5.6
• RPM: 1740
• Frame: F215TZ
• Enclosure: Totally Enclosed Fan Cooled
• Phase: 1
• Voltage: 230
• Rotation: Reversible
• Overload Protector: Manual
• Material: Aluminium
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 38.0
• Shaft Type: Flat
• Shaft Extension: 3.5 inches
• Shaft Diameter: 1.125 inches
• Duty : Continuous
• Frequency: 60
• Insulation Class: B
• Number of Poles: 4
• Service Factor: 1
• Starting Method: Across The Line
