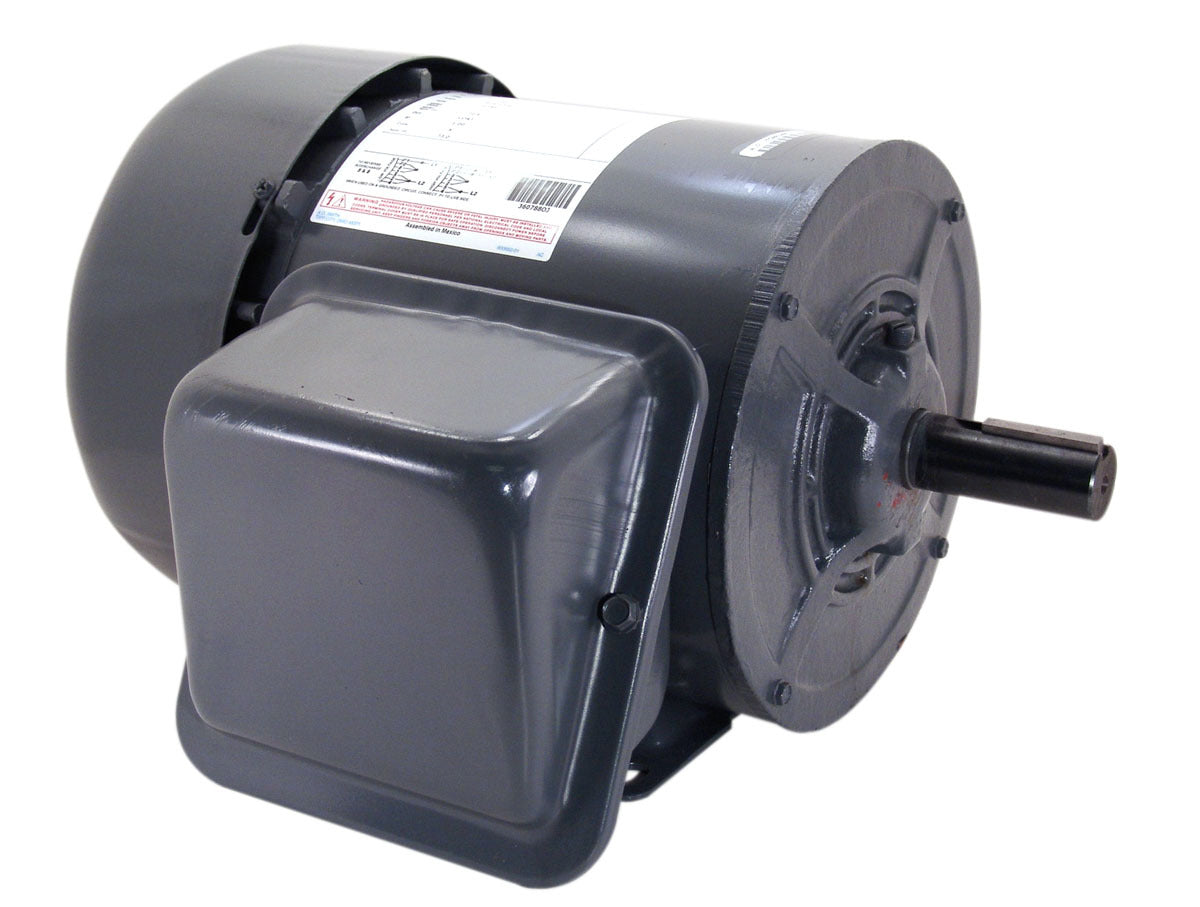

Century UK204 General Purpose Farm Duty Motor 2 HP 115/230V

Product Description

The Century UK204 is a General Purpose Farm Duty Motor with a power rating of two horsepower. This motor operates on a dual voltage of one hundred fifteen or two hundred thirty volts and runs at one thousand seven hundred forty RPM. It features a capacitor start induction design suited for various farm applications.

• High starting torque for demanding tasks
• Manual reset thermal protector for safety
• All parts are corrosion resistant

Product Highlights

The Century UK204 motor is ideal for farm and agricultural uses, providing reliable performance in tough conditions.

Product Information

Standard Information

• Brand: Century
• MPN: UK204

Technical Specifications

• Power: 2 HP
• Voltage: 115/230 V
• Frame Size: 182TZ
• Amperage: 24.8/12.4 A
• Weight: 65 lbs
• Enclosure: Totally Enclosed Fan Cooled
• Rotation: Counterclockwise
• Mounting Type: Rigid Base
• Shaft Diameter: 0.875 inches
• Bearings Type: Ball
• Duty Type: Continuous
• Ambient Temperature: 40°C
• Efficiency: Class F
• Number of Speeds: 1
