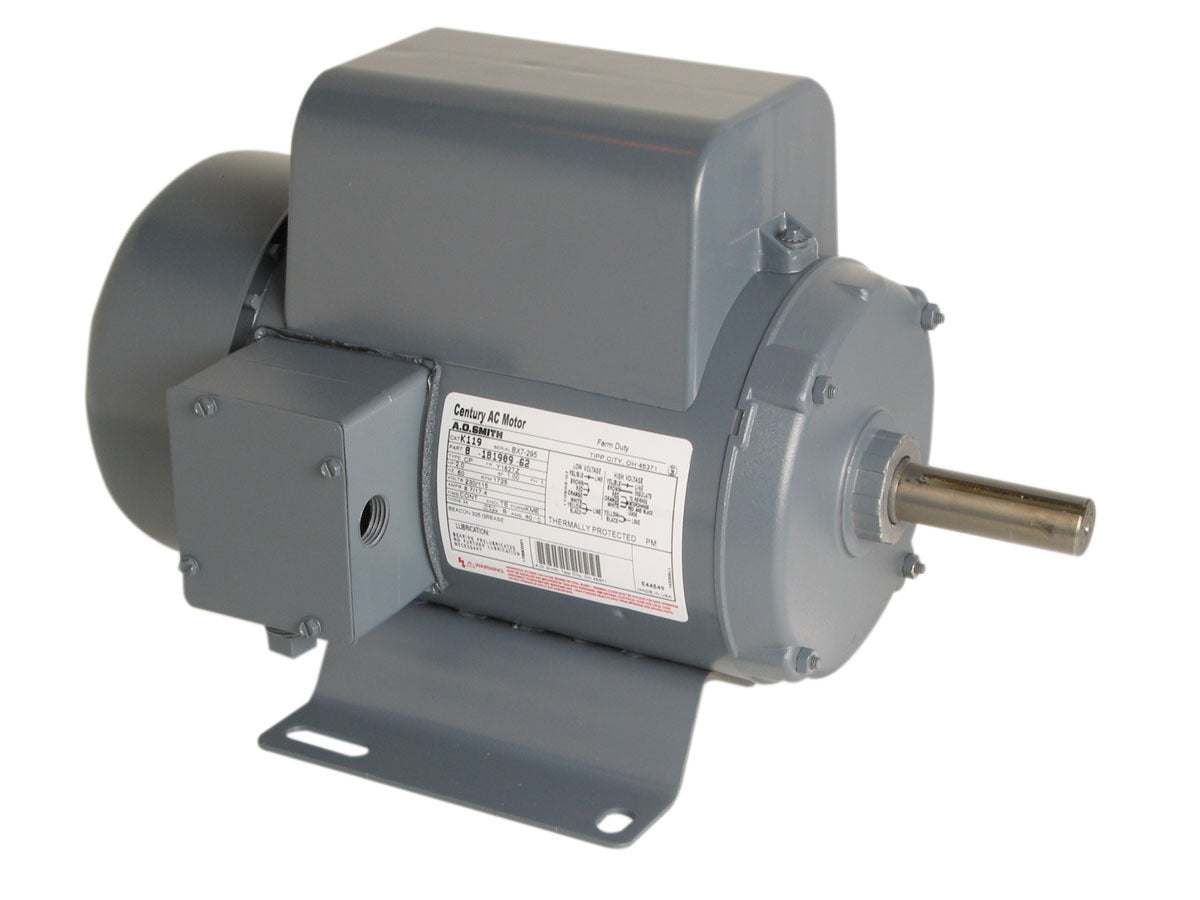

Century UK119 High Torque Motor 2.0 HP 1725 RPM Y182TZ

Product Description

The Century UK119 High Torque Motor offers reliable performance for demanding farming applications. This motor, identified by MPN UK119, features a 2.0 horsepower (HP) capacity and operates at 1725 rotations per minute (RPM).

• Capacitor Start, Capacitor Run
• Thermally Protected
• Totally Enclosed Fan Cooled

Product Highlights

Century UK119 provides solid performance with a keyed shaft and ball bearings. Suitable for harsh environments, it handles temperatures from -20°F to 350°F and includes features such as condensation drains and shaft flingers.

Product Information

Standard Information

• Brand: Century
• MPN: UK119

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• HP: 2.0
• RPM: 1725
• Frame: Y182TZ
• Enclosure: Totally Enclosed Fan Cooled
• Phase: 1
• Voltage: 230/115
• Rotation: Reversible Counterclockwise
• Overload: Thermally Protected
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 8.7/17.4
• Shaft Type: Keyed
• Shaft Extension: 2.07 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Diameter: 0.875 inches
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 4
• Service Factor: 1
• C Dimension: 15.11 inches
• Ambient Temperature: 40°C
• Certifications CE: N
• Certifications CSA: Y
• Certifications UL: Recognized
