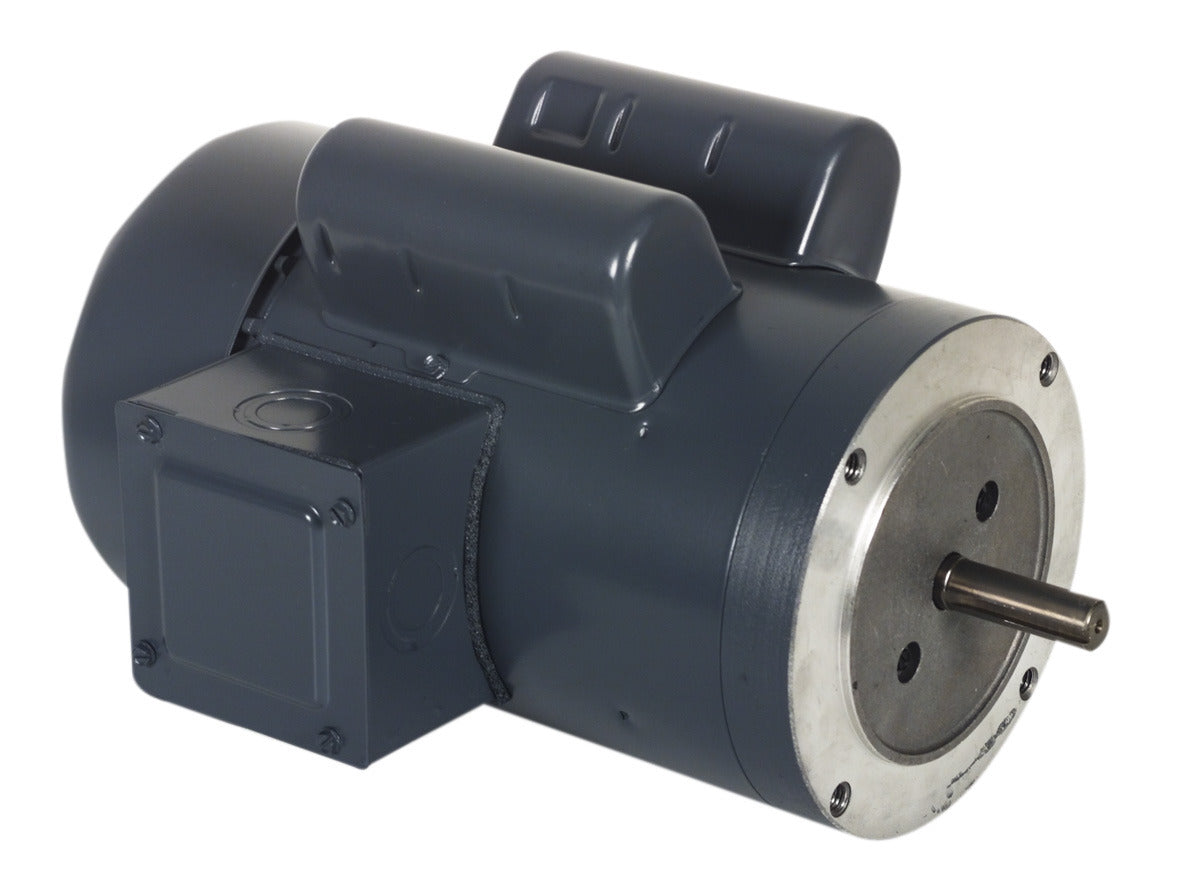

Century UK108 General Purpose Motor 208-230/115V 0.75HP 1140RPM

Product Description

The Century UK108 General Purpose Motor is designed for versatile use in various applications. This motor features a horsepower of 0.75 and runs at 1140 RPM. It has a capacitor start, capacitor run, single or dual voltage capability, making it flexible for different power needs.

• UL recognized and CSA certified
• Continuous duty cycle design
• Heavy-duty rolled steel construction

Product Highlights

This motor's capacitor start design optimizes torque and efficiency. Permanently lubricated sealed bearings ensure a long lifespan. The motor is enclosed in a totally enclosed fan-cooled casing to protect internal components.

Product Information

Standard Information

• Brand: Century
• MPN: UK108

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• HP: 0.75
• RPM: 1140
• Frame: L145TC
• Enclosure: Totally Enclosed Fan Cooled
• Phase: 1
• Voltage: 208-230/115
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Round
• Amperage: 4.6-4.4/8.8
• Shaft Type: Keyed
• Shaft Extension: 2.13
• Shaft Diameter: 0.875
• Duty: Continuous
• Frequency: 60
• Insulation Class: B
• Poles: 6
• Service Factor: 1.15
