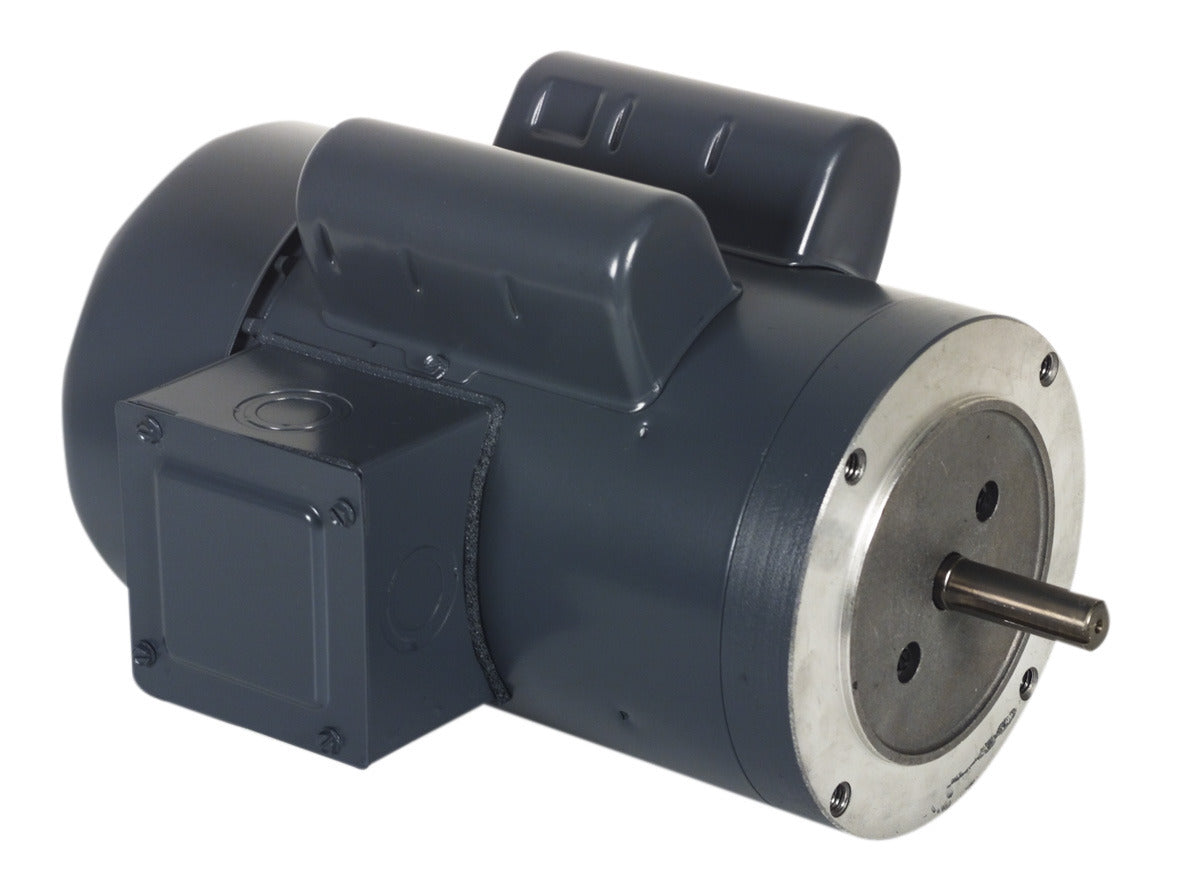

Century UK107 General Purpose Motor 2.0 HP 115/208-230

Product Description

The Century UK107 is a two horsepower general-purpose motor designed for reliable performance in various applications. This motor features a capacitor start and capacitor run system, suitable for both single and dual voltage setups. Its robust construction ensures durability and a long operational life.

• Continuous duty cycle for maximum operation efficiency.
• Permanently lubricated sealed bearings reduce maintenance.
• Reversible counterclockwise rotation adds flexibility in usage.

Product Highlights

Effective motor for HVAC systems, pumps, and other industrial applications with a focus on energy efficiency.

Product Information

Standard Information

• Brand: Century
• MPN: UK107

Technical Specifications

• Power: 2.0 HP
• Voltage: 115/208-230 V
• RPM: 1745
• Phase: 1
• Amperage: 17.8/9.6-8.9 A
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame Size: P145TC
• Shaft Diameter: 0.875 inches
• Mounting Type: Round
• Material: Rolled Steel
• Bearings Type: Ball
• Weight: 46 lbs
• Dimensions: 19 inches (Length) x 12 inches (Width) x 10 inches (Height)
