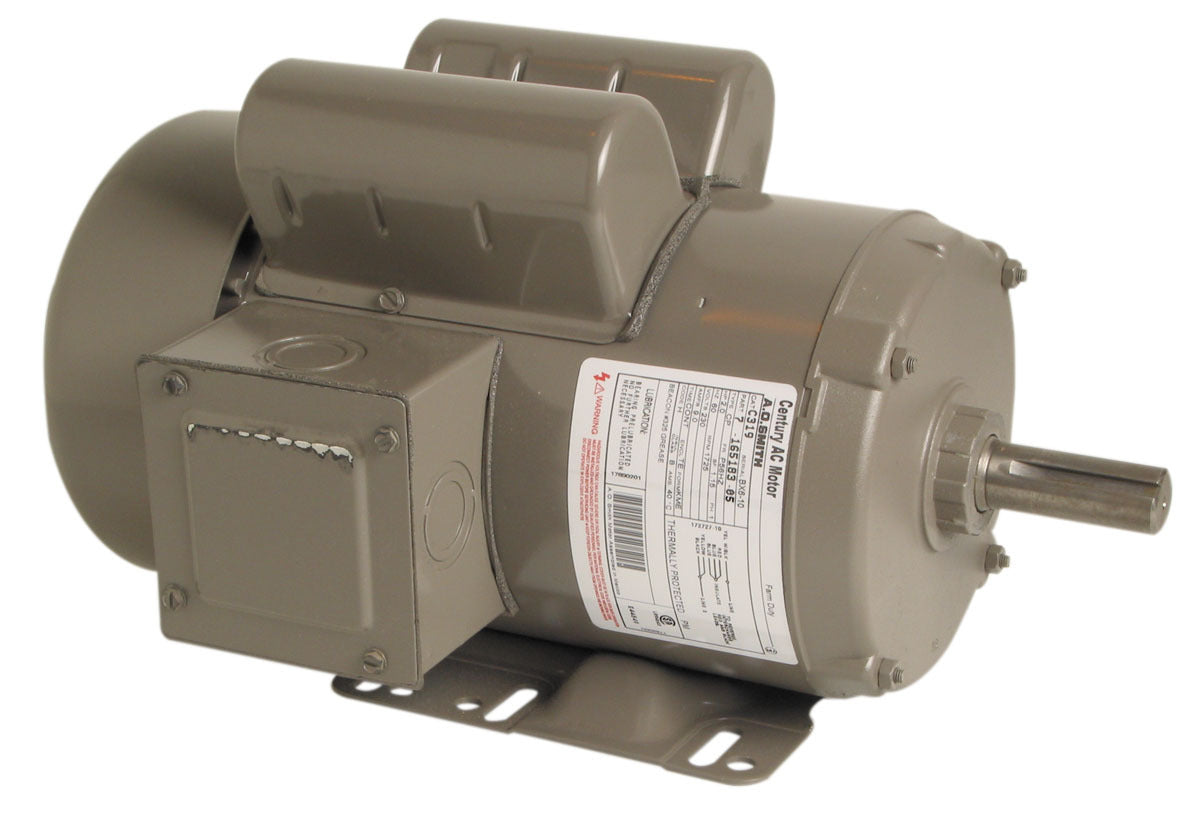

Century UK104 High Torque Motor 1.5 HP 1725 RPM 56HZ

Product Description

The Century UK104 is a high torque motor designed for various industrial applications. With a power rating of one and a half horsepower and a speed of one thousand seven hundred twenty-five RPM, this motor offers a reliable solution for demanding tasks.

• Capacitor start and capacitor run electrical type
• Thermally protected for enhanced safety
• Double-shielded bearings for extended service life

Product Highlights

This motor features a rigid base for stable mounting and operates efficiently at both one hundred fifteen and two hundred thirty volts. The totally enclosed fan-cooled design protects the motor from dust and moisture, ensuring durability in varying conditions.

Product Information

Standard Information

• Brand: Century
• Type: Farm Duty Motor

Technical Specifications

• HP: 1.5
• RPM: 1725
• Frame: 56HZ
• Voltage: 115/230
• Amperage: 12.6/6.3
• Shaft Diameter: 0.875 inches
• Bearings Type: Ball
• Dimensions: 15.5 inches (Length) x 10.5 inches (Width) x 10 inches (Height)
• Weight: 43 lbs
• Material: Rolled Steel
