Product Description

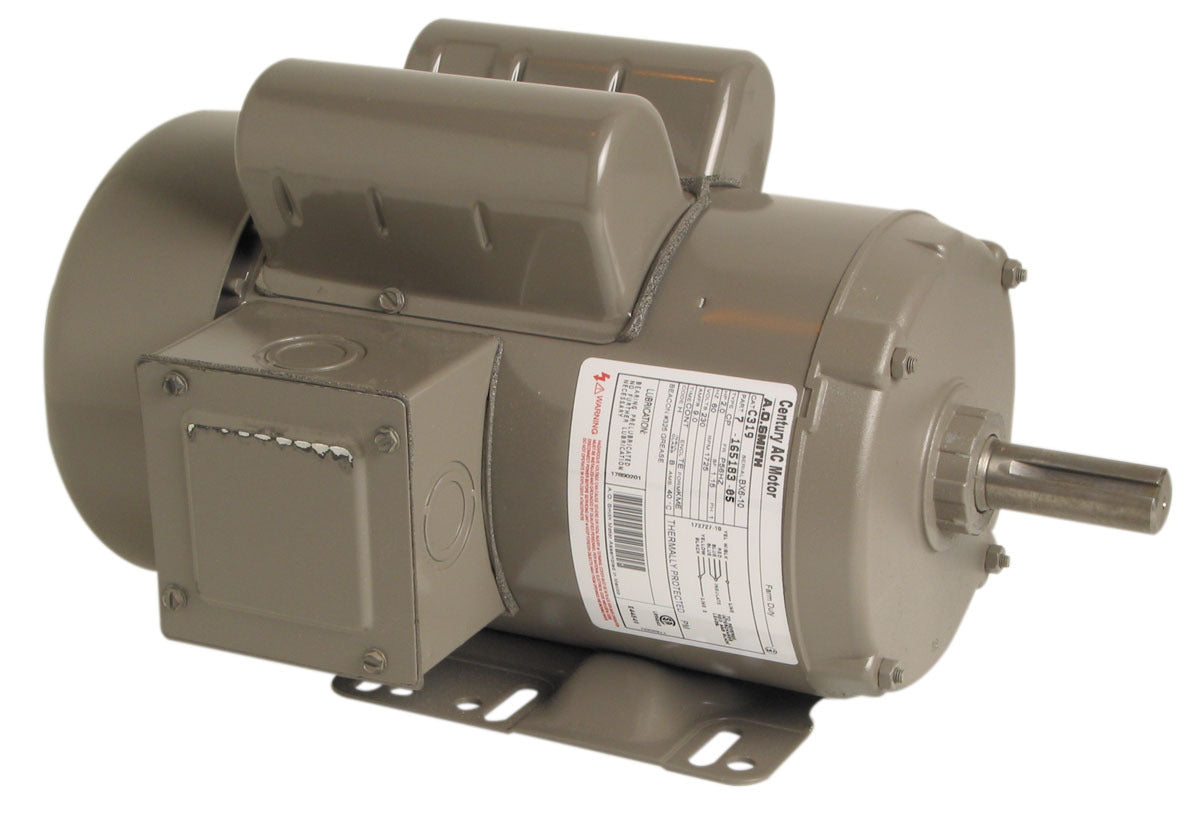

The Century UK103 electric motor is a single-phase motor designed for a variety of applications. Featuring a power output of 1.1KW and operating at 115/230V, this motor delivers reliable performance for demanding tasks.
- 1.5 horsepower
- 1725 RPM
- Thermally protected
Product Highlights
This electric motor by Century includes essential features like a totally enclosed fan-cooled structure and double-shielded ball bearings, which enhance durability and extend service life.
Product Information
Standard Information
-
Brand: Century
-
Model: UK103
Technical Specifications
-
Power: 1.1KW
-
Horsepower: 1.5HP
-
Voltage: 115/230V
-
Amperage: 14.2/7.1
-
RPM: 1725
-
Frame: 145
-
Phase: Single
-
Enclosure: Totally Enclosed Fan Cooled
-
Shaft Diameter: 0.875 inches
-
Shaft Extension: 2.25 inches
-
Bearings DE Type: Ball
-
Bearings ODE Type: Ball
-
Overload Protection: Thermally Protected
-
Material: Rolled Steel
-
Mounting Type: Rigid Base
-
Shaft Type: NEMA 56
-
Frequency: 60Hz
-
Efficiency: 78.5%
-
Service Factor: 1
-
Insulation Class: B
-
Poles: 4
-
Country of Origin: Mexico
