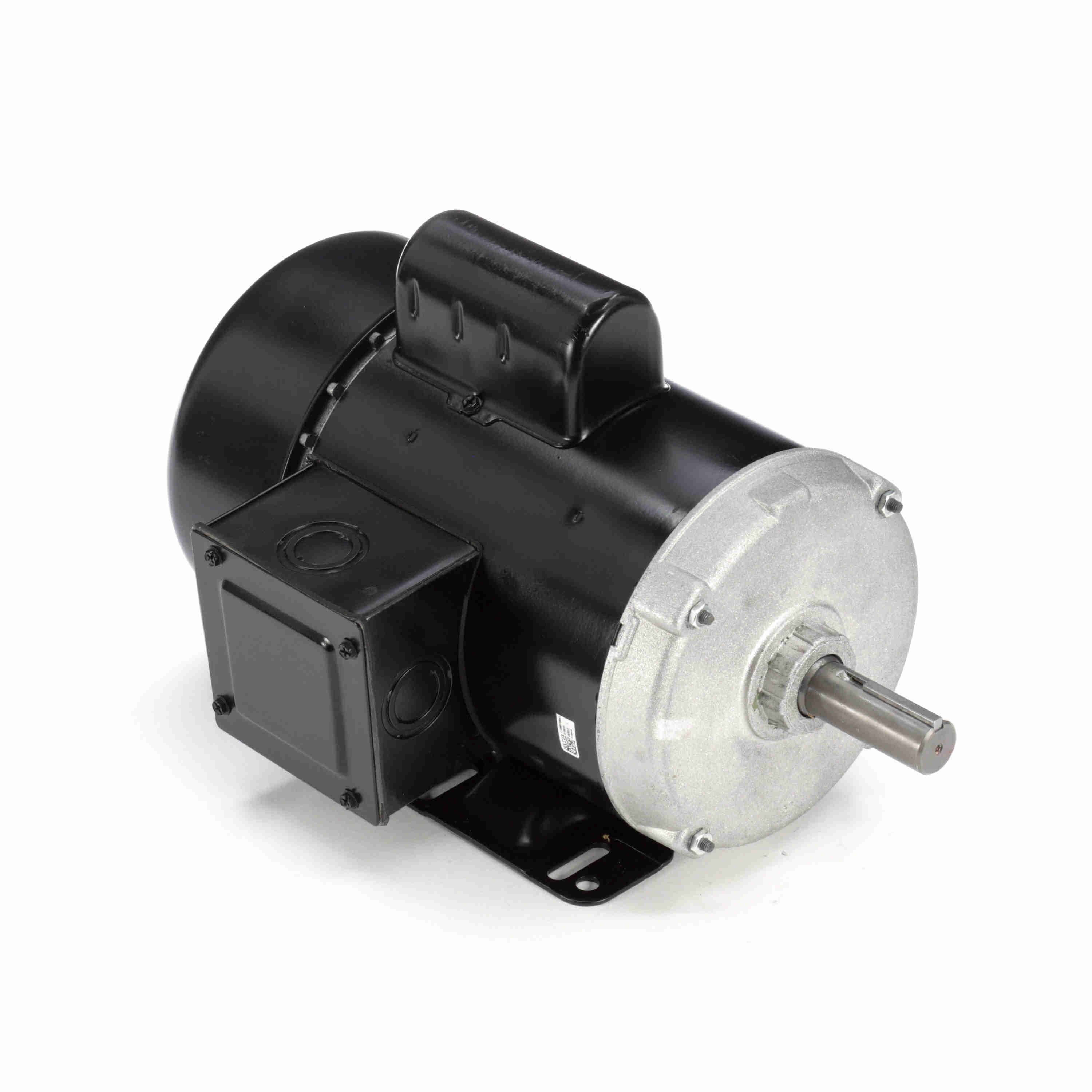

Century UK100V1 General Purpose Motor 1 HP (208-230/115V) 120025.00

Product Description

The Century UK100V1 is a general-purpose motor designed for various applications. This capacitor start motor operates at one horsepower and features a reversible counterclockwise rotation. With a robust construction and efficient design, it is suitable for continuous duty cycles.

• UL recognized component with CSA certification.
• Heavy-duty rolled steel body for durability.
• Permanently lubricated sealed bearings enhance longevity.

Product Highlights

This motor is ideal for HVAC systems, pumps, and other equipment requiring reliable performance.

Product Information

Standard Information

• Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage
• Amperage: 7.7-7.5/15.0
• Voltage: 208-230/115
• Rotation: Reversible Counterclockwise
• Frame Size: M143T

Technical Specifications

• HP: 1
• KW: 0.75
• RPM: 1745
• Material: Rolled Steel
• Bearings Type: Ball
• Shaft Type: Keyed
• Shaft Diameter: 0.875 inches
• Dimensions: 17 x 11 x 11 inches
• Weight: 40 lbs
