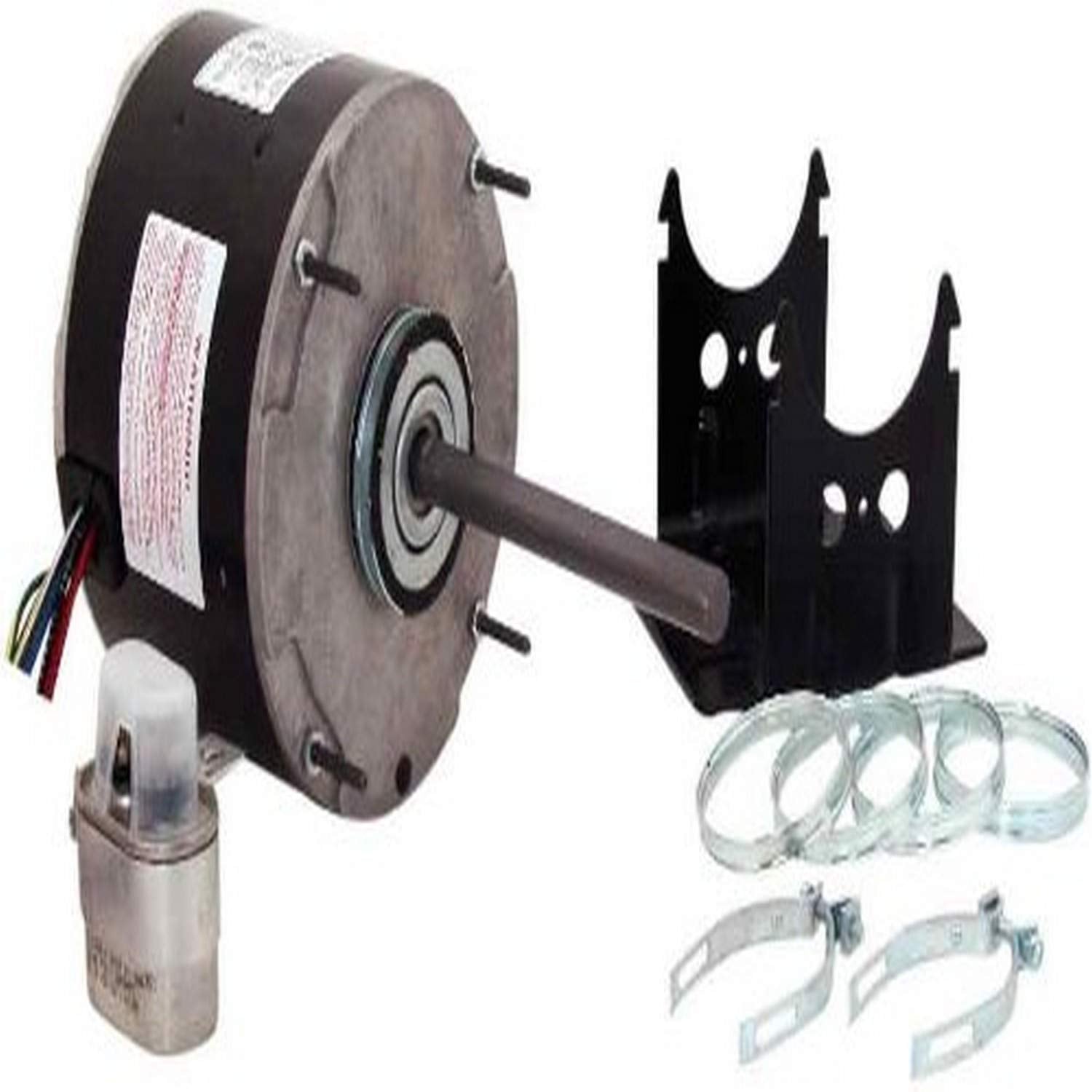

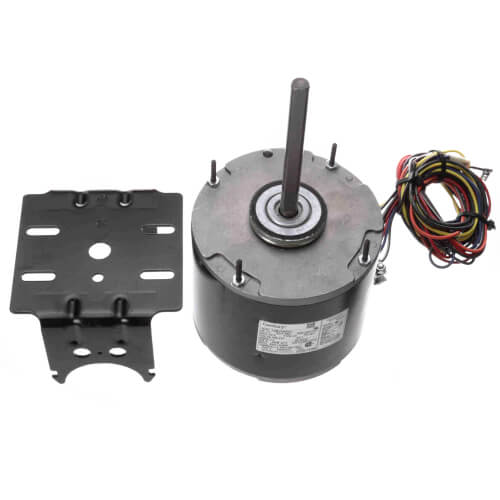

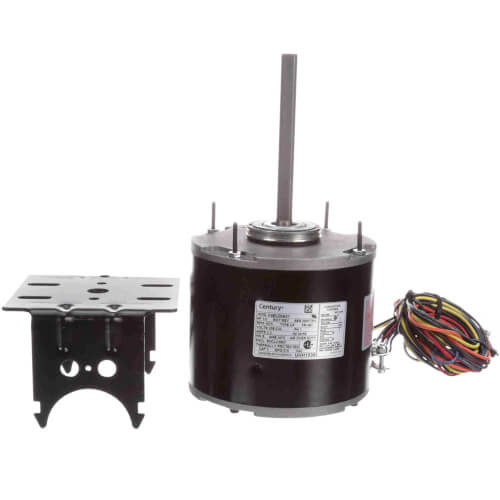

Century UHH1036 Unit Heater Motor 208-230V 1075RPM 1/3HP

Product Description

The Century UHH1036 Unit Heater Motor is designed for industrial applications. This motor operates at 208-230 volts, delivering 1/3 horsepower and reaching 1075 RPM. The model UHH1036 features a totally enclosed, air-over design with ball bearings, ensuring reliable performance and durability.

• Single phase, 1/3 HP motor
• Voltages ranging 208-230
• Operational speed at 1075 RPM

Product Highlights

This motor is ideal for HVAC systems and other industrial uses. Its durable construction and efficient operation provide long-lasting performance. It features a reversible rotation and automatic overload protection.

Product Information

Standard Information

• Brand: Century
• MPN: UHH1036
• UPC: 786674033031
• Manufacturer: Regal Rexnord - Century Motors

Technical Specifications

• Electrical Type: PSC
• Horse Power: 1/3
• KW: 0.25
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: TEAO
• Voltage: 208-230
• Amperage: 2.2
• Phase: Single
• Rotation: Reversible
• Bearing Type: Ball
• Shaft Extension: 5.500 inches
• Insulation Class: B
• Ambient Temperature: 40°C
• Shaft Diameter: 0.500 inches
• Mounting: Resilient Ring / Extended Studs
• Number of Poles: 6
• Weight: 17 lbs
