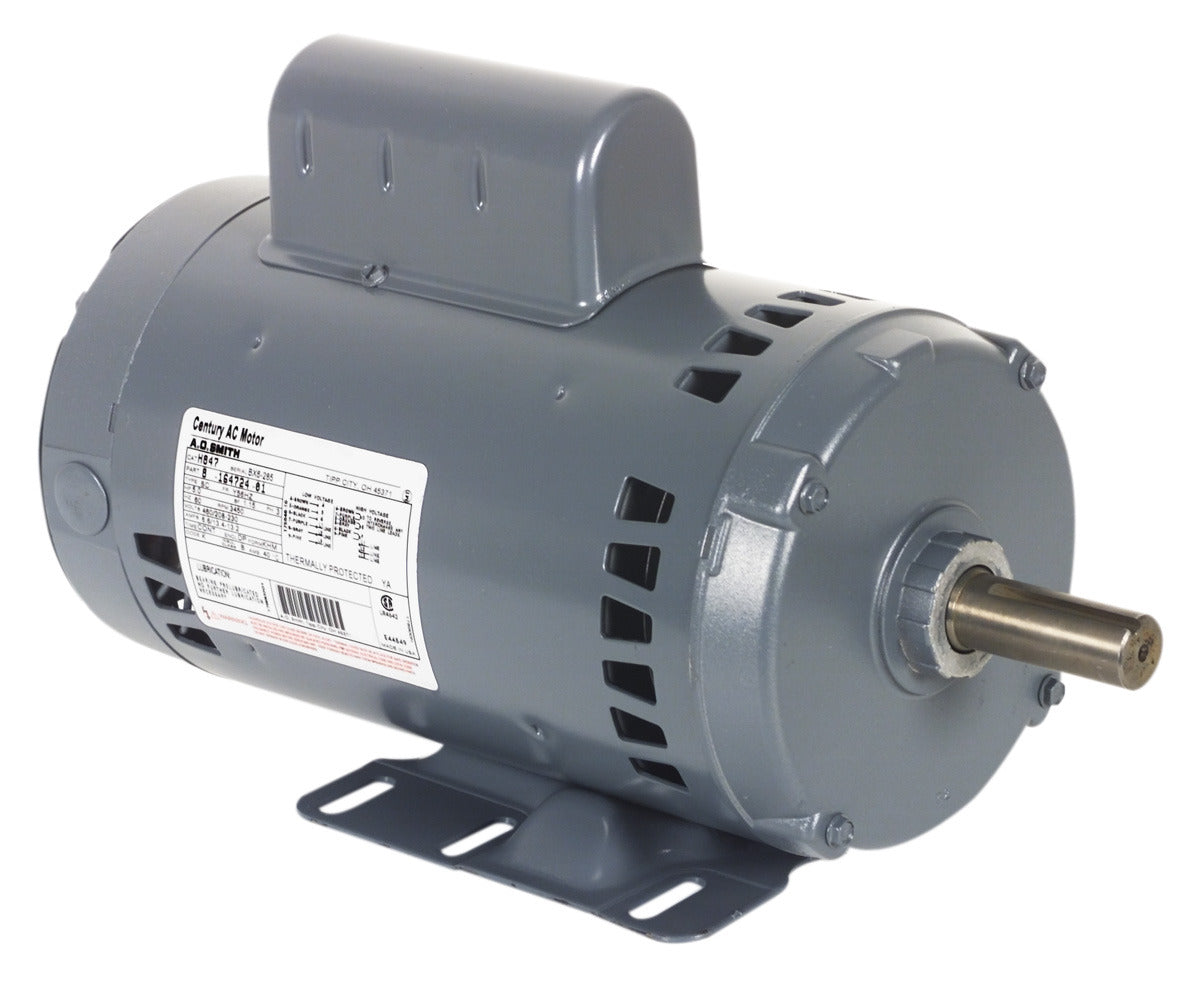

Century UH956 General Purpose Motor 5 HP Drip Proof

Product Description

The Century UH956 General Purpose Motor is a reliable and efficient polyphase induction motor. It features a power rating of 5 HP and operates at a voltage of 575. This motor is designed with a rigid base mounting, making it suitable for various applications.

• UL recognized and CSA certified
• Premium efficiency for improved reliability
• Heavy-duty rolled steel construction

Product Highlights

Experience the reliability and efficiency of the Century UH956 General Purpose Motor. This motor's heavy-duty construction and permanently lubricated sealed bearings ensure a long service life. It's thermally protected and suitable for various industrial applications.

Product Information

Standard Information

• Brand: Century
• Model: UH956

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single or Dual Voltage
• Power: 5 HP (3.7 kW)
• Frame: Y56HZ
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: Three
• Voltage: 575
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 5.4
• Shaft Type: Keyed
• Shaft Extension: 2.31 inches
• Shaft Diameter: 0.875 inches
• RPM: 3450
• Overload Protection: Thermally Protected
• Certifications: UL Recognized, CSA
