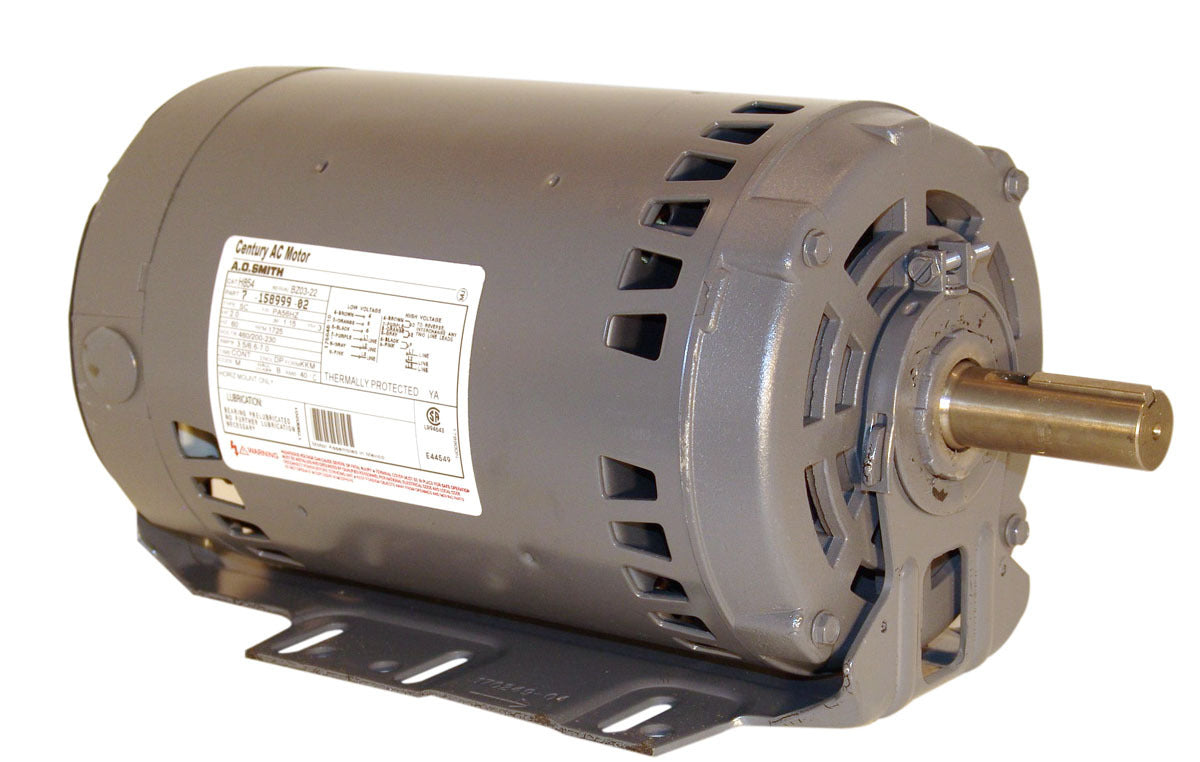

Century UH954 General Purpose Motor 3 HP Polyphase 575 Volt Open Enclosed

Product Description

The Century UH954 General Purpose Motor offers reliable performance for various applications. With a 3 HP polyphase induction design, this motor is suitable for numerous industrial tasks. It features a reversible counterclockwise rotation and is thermally protected.

• 3 horsepower polyphase motor
• Keyed shaft with ball bearings
• Thermally protected

Product Highlights

Century's UH954 motor is ideal for general-purpose use. It is built with robust rolled steel and equipped with a cushion base for easy mounting. The open enclosed design ensures optimal performance and protection.

Product Information

Standard Information

• Brand: Century
• MPN: UH954
• Type: Motor > General Purpose Motor
• Class: General Purpose Motor

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• HP: 3
• Frame: P56HZ
• Diameter: 6.5
• Enclosure: Open Enclosed
• Phase: Three
• Voltage: 575
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Mounting: Cushion Base
• Amperage: 3.6
• Shaft Type: Keyed
• KW: 2.2
• RPM: 3450
• Shaft Diameter: 0.875
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 2.31
• Overload: Thermally Protected
