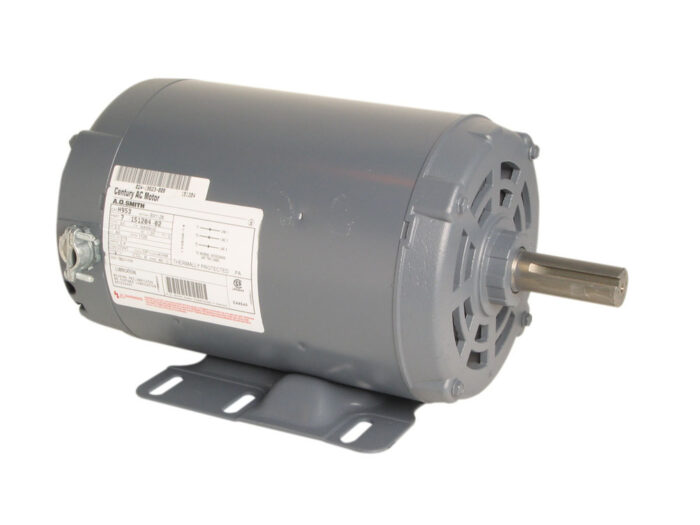

CENTURY MOTORS UH953 General Purpose Motor 2.0 HP

Product Description

The CENTURY MOTORS UH953 is a three-phase induction motor suited for general-purpose needs. It features a rigid base for mounting and a balanced design for smooth operation. This motor includes thermal overload protection and allows for reversible counter-clockwise rotation. The construction is robust, utilizing rolled steel, and it is fitted with a keyed shaft.

• Type: Polyphase, Induction, Single or Dual Voltage
• Enclosure Type: Drip Proof
• Protection: Thermally Secure Overload

Product Highlights

This motor is designed for reliable performance in various applications, ensuring durability and efficiency in operation.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UH953

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• Phase: 3
• Horsepower: 2.0
• Speeds: 1
• Enclosure: DP (Drip Proof)
• Voltage: 575
• RPM: 1725
• Material: Rolled Steel
• Rotation: Reversible CCW
• Output Current: 2.6
• Frequency: 60
• Service Factor: 1.2
• Overload Protector: Thermally Protected
• Certifications: CE, CSA, UL Recognized
• Shaft Type: Keyed
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.31 inches
• Mounting Type: Rigid Base
• Dimensions: 16.00 inches (Length), 8.00 inches (Width), 10.00 inches (Height)
• Weight: 36.00 lb
• C: 13.06 inches
• Frame Length: 7.25 inches
