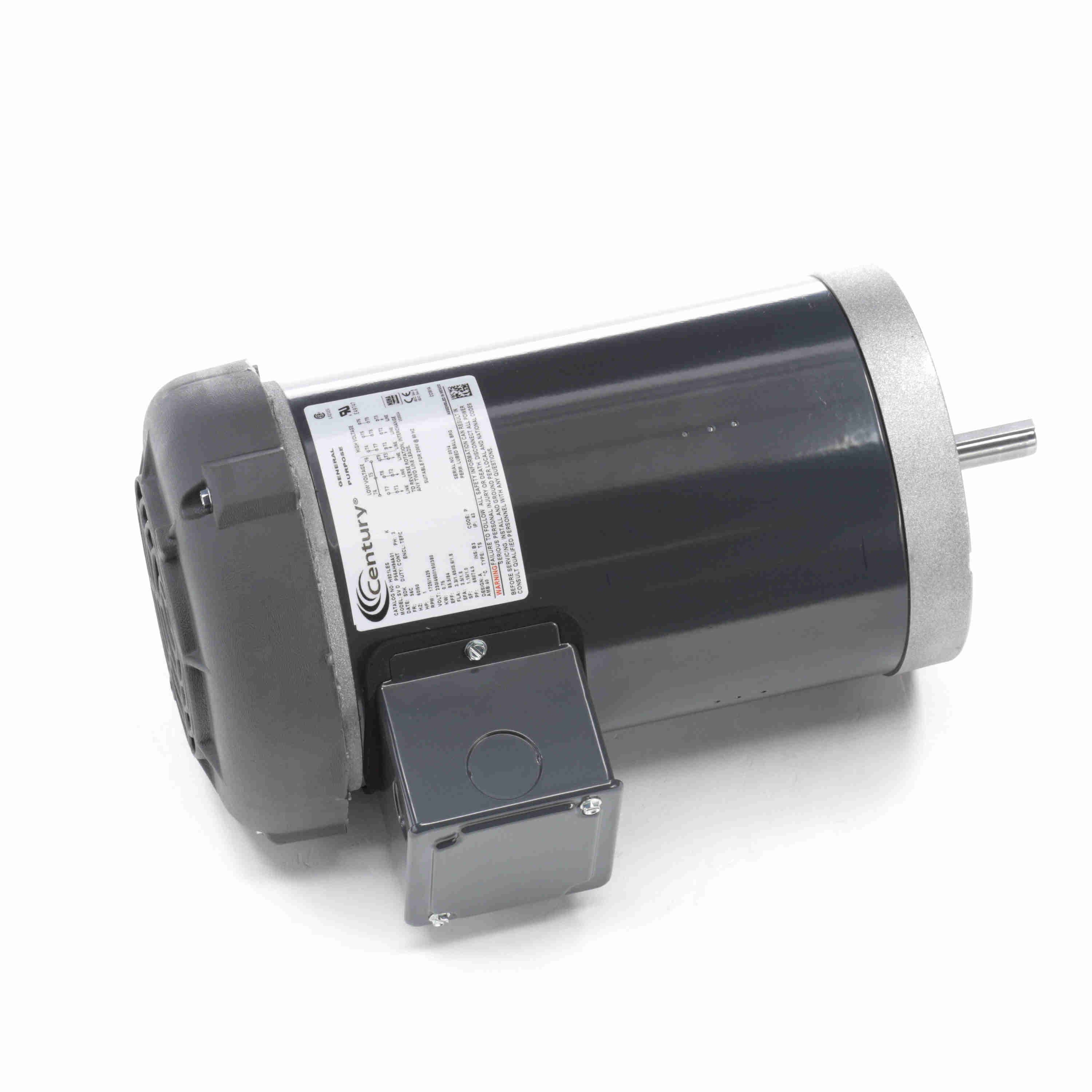

Century UH921LES General Purpose Motor 1 HP 3 Phase 1725 RPM 56C Frame

Product Description

The Century UH921LES General Purpose Motor is designed for reliable performance across various applications. This motor features three-phase power with a 1 HP output and operates at 1725 RPM. It has a NEMA 56C frame and a totally enclosed fan-cooled (TEFC) enclosure.

• 1 HP, three-phase motor
• 1725 RPM operating speed
• NEMA 56C frame

Product Highlights

This motor is suitable for multiple industrial and commercial uses. The permanently lubricated, double-sealed bearings increase its longevity, while the Class B insulation protects it under high temperatures. It is UL recognized and CSA certified for safety.

Product Information

Standard Information

• Brand: Century
• MPN: UH921LES

Technical Specifications

• Electrical Type: Three Phase
• HP: 1
• KW: 0.75
• RPM: 1725
• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Three
• Voltage: 230/460
• Rotation: Reversible
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Round
• Amperage: 3.3/1.65
• Shaft Type: NEMA 56
• Shaft Extension: 2.06 inches
• Shaft Diameter: 0.625 inches
