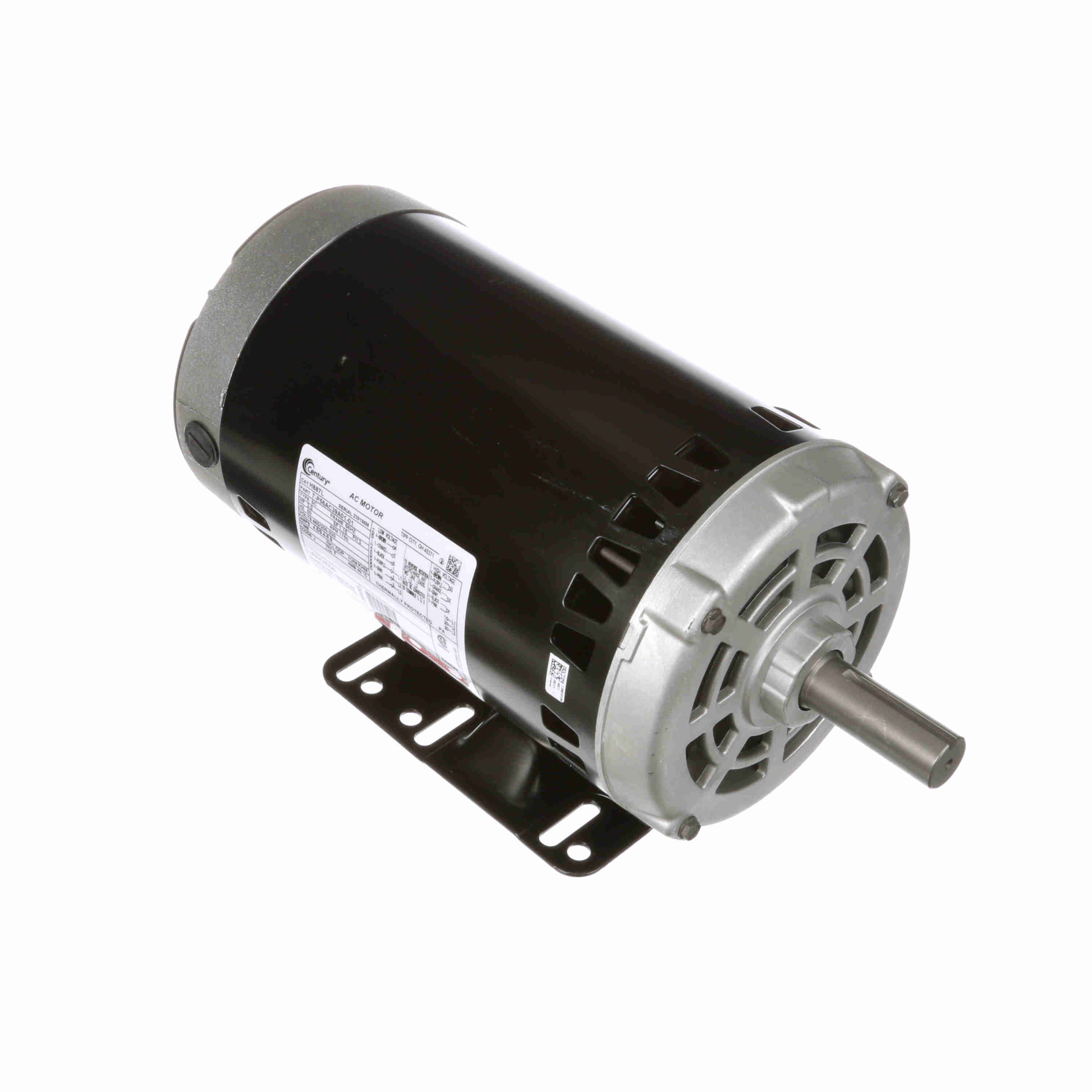

Century UH887L General Purpose Motor 3.0 HP 1750 RPM 230/460V

Product Description

The Century UH887L General Purpose Motor is a versatile motor designed for multiple applications. With a power rating of 3.0 HP and operating at 1750 RPM, this motor is suitable for diverse industrial uses.

• UL and CSA listed for safety
• Thermally protected
• Constructed from rolled steel for durability

Product Highlights

This motor features a 230/460V voltage capacity, reversible counterclockwise rotation, and a rigid base mounting. It uses ball bearings for smooth operation and is built to last with its rolled steel construction.

Product Information

Standard Information

• Brand: Century
• MPN: UH887L

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• HP: 3.0
• KW: 2.2
• RPM: 1750
• Frame: 56HZ
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof
• Phase: Three
• Voltage: 230/460
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 9/4.5
• Shaft Type: Keyed
• Shaft Extension: 2.310 inches
• Shaft Diameter: 0.875 inches
• Overload: Thermally Protected
• Efficiency: 78.5
• Frequency: 60 Hz
• Insulation Class: F
• Service Factor: 1
• Start Method: Across The Line
• Duty: Continuous
