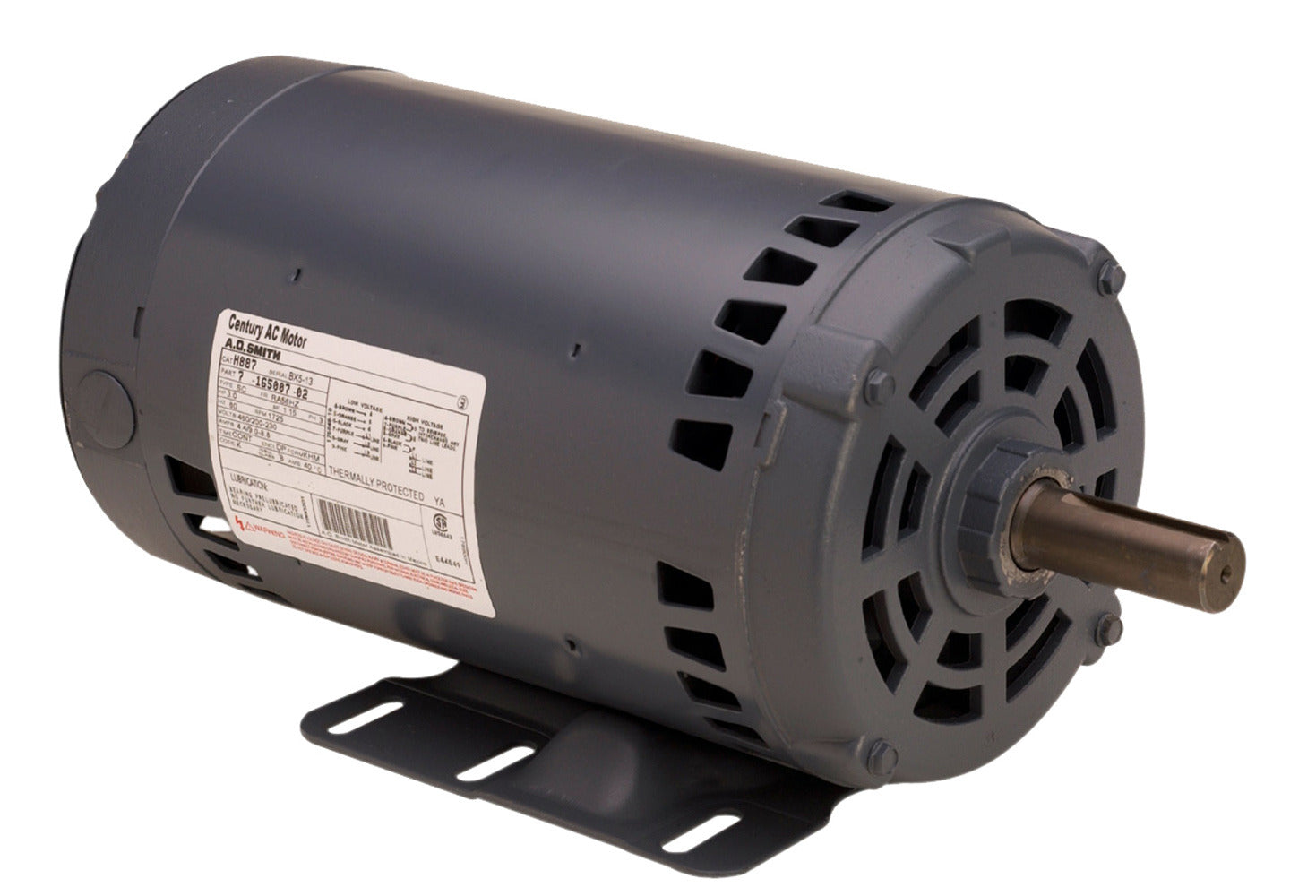

Century UH885L General Purpose Motor 1.5 HP 1725 RPM 460/200-230V

Product Description

The Century UH885L General Purpose Motor is a versatile and sturdy choice for various industrial applications. Featuring a power output of 1.5 horsepower and a rotational speed of 1725 RPM, this motor delivers reliable performance. It operates on a voltage of 460/200-230V and utilizes a polyphase, induction type electrical system.

• 1.5 horsepower motor
• 1725 RPM speed
• 460/200-230V voltage

Product Highlights

This general-purpose motor is built from heavy-duty rolled steel for durability. It includes permanently lubricated sealed bearings, ensuring longer life and reduced maintenance. The UL and CSA certifications provide safety assurance for varied applications.

Product Information

Standard Information

• Brand: Century
• MPN: UH885L
• Type: General Purpose Motor

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• HP: 1.5
• KW: 1.1
• RPM: 1725
• Frame: U56HZ
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: 3
• Voltage: 460/200-230V
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 2.8/5.0-5.6
• Shaft Type: Keyed
• Shaft Extension: 2.31 inches
• Shaft Diameter: 0.875 inches
• Overload: Thermally Protected
• Certification: UL Recognized, CSA Certified
