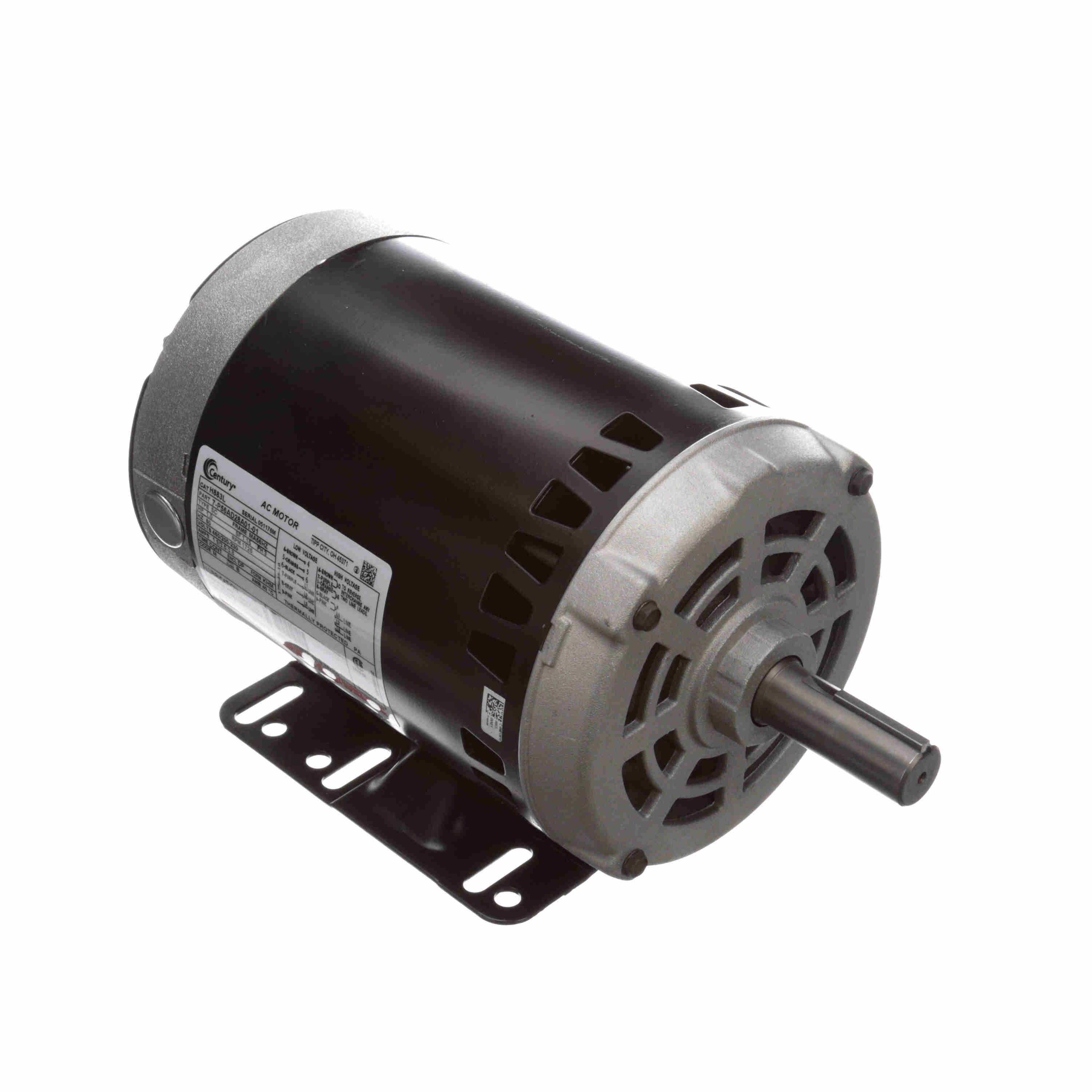

Century UH883L General Purpose Motor 1HP 460/200-230V

Product Description

The Century UH883L General Purpose Motor is a versatile motor designed for various applications. It features 1 horsepower, 460/200-230 volts, and reversible counterclockwise rotation. This motor adheres to USA mandated efficiency standards, ensuring reliable performance and longevity.

• 1 horsepower motor
• 460/200-230 volts
• Polyphase induction type

Product Highlights

This Century motor includes features like thermally protected overload, rolled steel construction, and permanently lubricated sealed bearings for extended motor life.

Product Information

Standard Information

• Brand: Century
• MPN: UH883L

Technical Specifications

• Electrical Type: Polyphase, Induction
• Horsepower: 1
• KW: 0.75
• RPM: 1725
• Frame: MA56HZ
• Enclosure: Drip Proof
• Phase: Three
• Voltage: 460/200-230
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Amperage: 1.9/3.5-3.8
• Shaft Extension: 2.31 inches
• Shaft Diameter: 0.875 inches
• Overload Protection: Thermally Protected
• Mounting: Rigid Base
• Weight: 27 pounds
