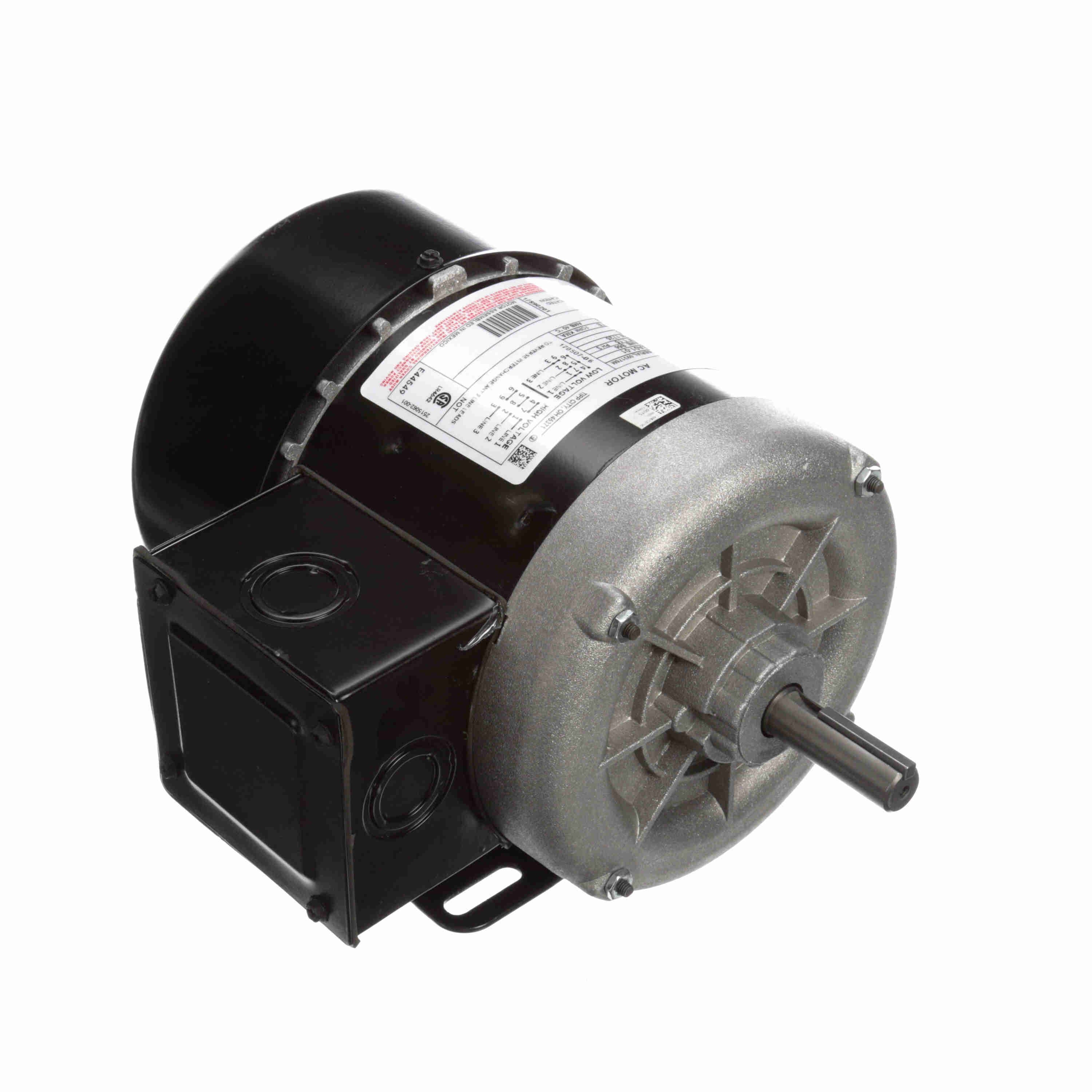

Century UH869L General Purpose Motor 3/4 HP 200-230/460V 1725 RPM

Product Description

The Century UH869L General Purpose Motor provides reliable performance for various applications. This motor features a 3/4 HP rating, operates at 1725 RPM, and is compatible with both 200-230V and 460V power sources.

• UL recognized and CSA certified
• Continuous duty cycle design
• Permanently lubricated, double-sealed bearings

Product Highlights

This motor is ideal for trade professionals working in HVAC, plumbing, and electrical fields, offering durability and dependable functionality.

Product Information

Standard Information

• Brand: Century
• Model: UH869L

Technical Specifications

• Electrical Type: Polyphase, Induction Type
• Horsepower: 3/4
• RPM: 1725
• Frame: B56
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Three
• Voltage: 200-230/460V
• Rotation: Reversible Counterclockwise
• Amperage: 2.5-2.4/1.2
• Material: Rolled Steel
• Shaft Type: Keyed
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.940 inches
• Bearings Type: Ball
• Mounting: Rigid Base
• Insulation Class: B
• Duty: Continuous
• Service Factor: 1.15
