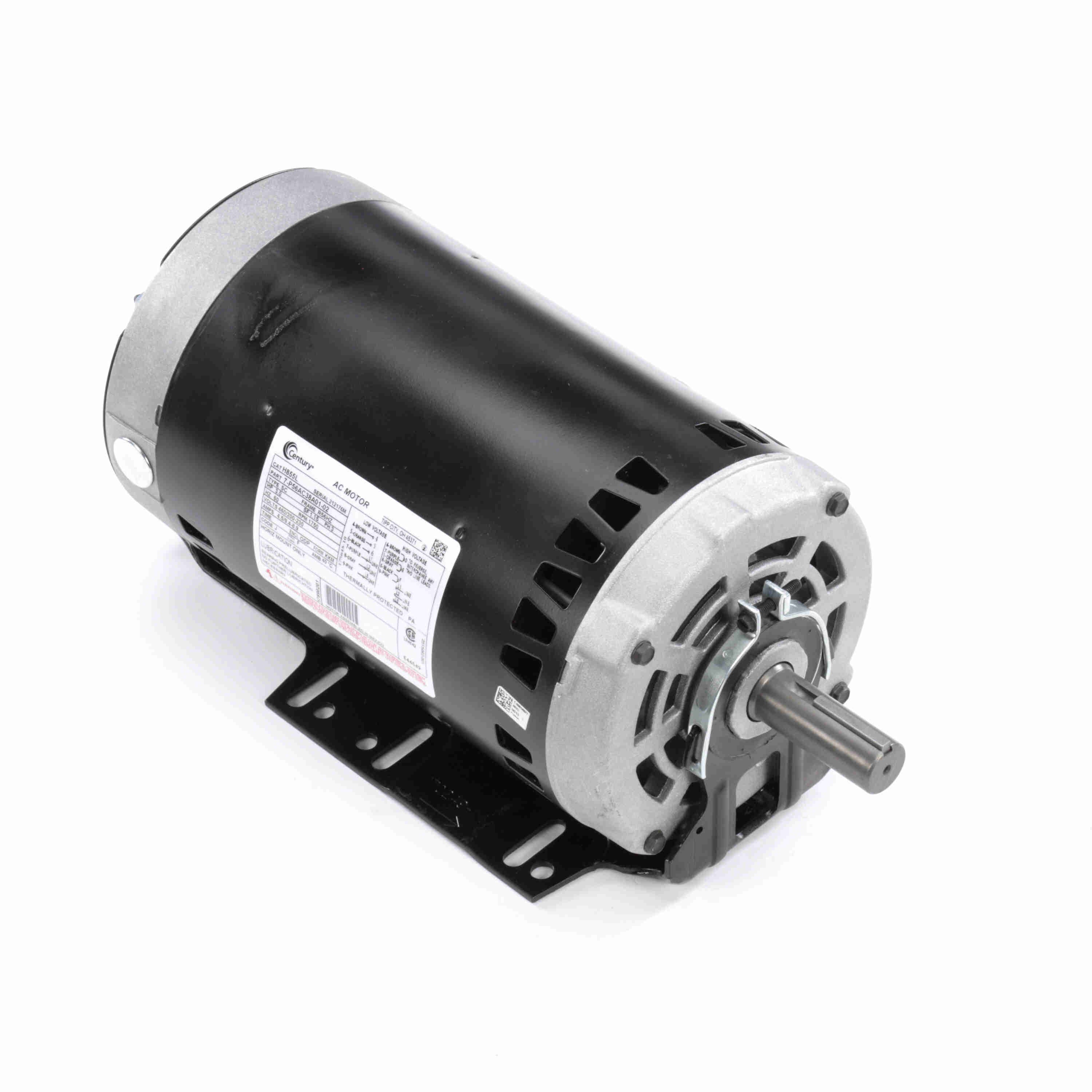

Century UH855L Fan and Blower Motor Three Phase 3 HP 56HZ REV

Product Description

The Century UH855L is a three-phase fan and blower motor designed for consistent and efficient performance. With a power rating of 3 horsepower, this motor operates at 1750 RPM and accommodates a voltage range of 460/200-230. The motor features a cushion base mounting and a rolled steel enclosure for durability.

• Three-phase electrical type
• 3 HP power output
• 1750 RPM speed

Product Highlights

The Century UH855L fan and blower motor is suitable for HVAC applications, providing reliable performance for air circulation and ventilation systems.

Product Information

Standard Information

• Brand: Century
• MPN: UH855L
• Country of Origin: Mexico
• Weight: 44.44 lbs
• Dimensions: 19 inches (Length) x 8 inches (Width) x 11 inches (Height)
• UPC: 787000000000

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 3
• KW: 2.2
• RPM: 1750
• Frame: 56HZ
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Three
• Voltage: 460/200-230
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: Cushion Base
• Amperage: 4.5/9.4-8.9
• Shaft Type: Keyed
• Shaft Extension: 2.31 inches
• Shaft Diameter: 0.875 inches
• Duty: Continuous
• Efficiency: 78.5%
• Insulation Class: F
• Poles: 4
• Service Factor: 1.15
• Start Method: Across The Line
