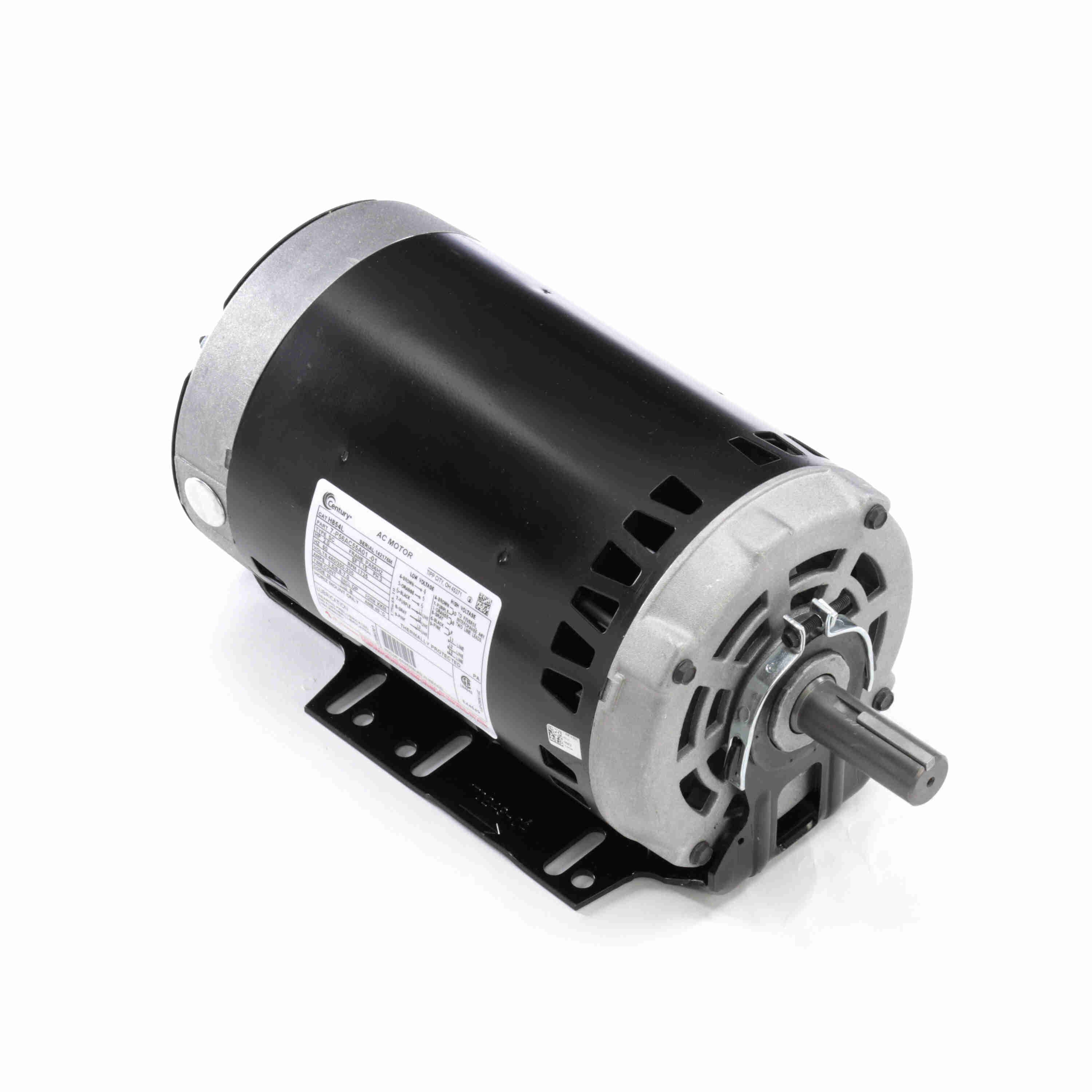

Century UH854L Fan and Blower Motor 2 HP 1725 RPM ODP Rolled Steel

Product Description

The Century UH854L is a fan and blower motor designed for use in HVAC systems. This motor, with MPN UH854L, operates with a power of 2 HP and an RPM of 1725. It uses a three-phase electrical system and is enclosed in rolled steel with an open drip-proof (ODP) configuration.

• Three-phase electrical type
• 2 HP and 1725 RPM
• ODP Enclosure

Product Highlights

This Century UH854L motor is built for fan and blower applications. It comes with a cushion base mounting and operates at voltages 460/200-230. Keyed shaft and ball bearings ensure efficient performance.

Product Information

Standard Information

• Brand: Century
• MPN: UH854L
• Type: Motor > HVAC/R Motor > Fan and Blower Motor
• UPC Number: 7.87E+11
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Three Phase
• HP: 2
• KW: 1.5
• RPM: 1725
• Frame: 56HZ
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Three
• Voltage: 460/200-230
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Shaft Type: Keyed
• Shaft Extension: 2.31 inches
• Shaft Diameter: 0.875 inches
• Mounting: Cushion Base
• Amperage: 3.5/6.6-7.0
• Duty: Continuous
• Insulation Class: B
• Poles: 4
• Service Factor: 1.15
• Start Method: Across The Line
