Product Description

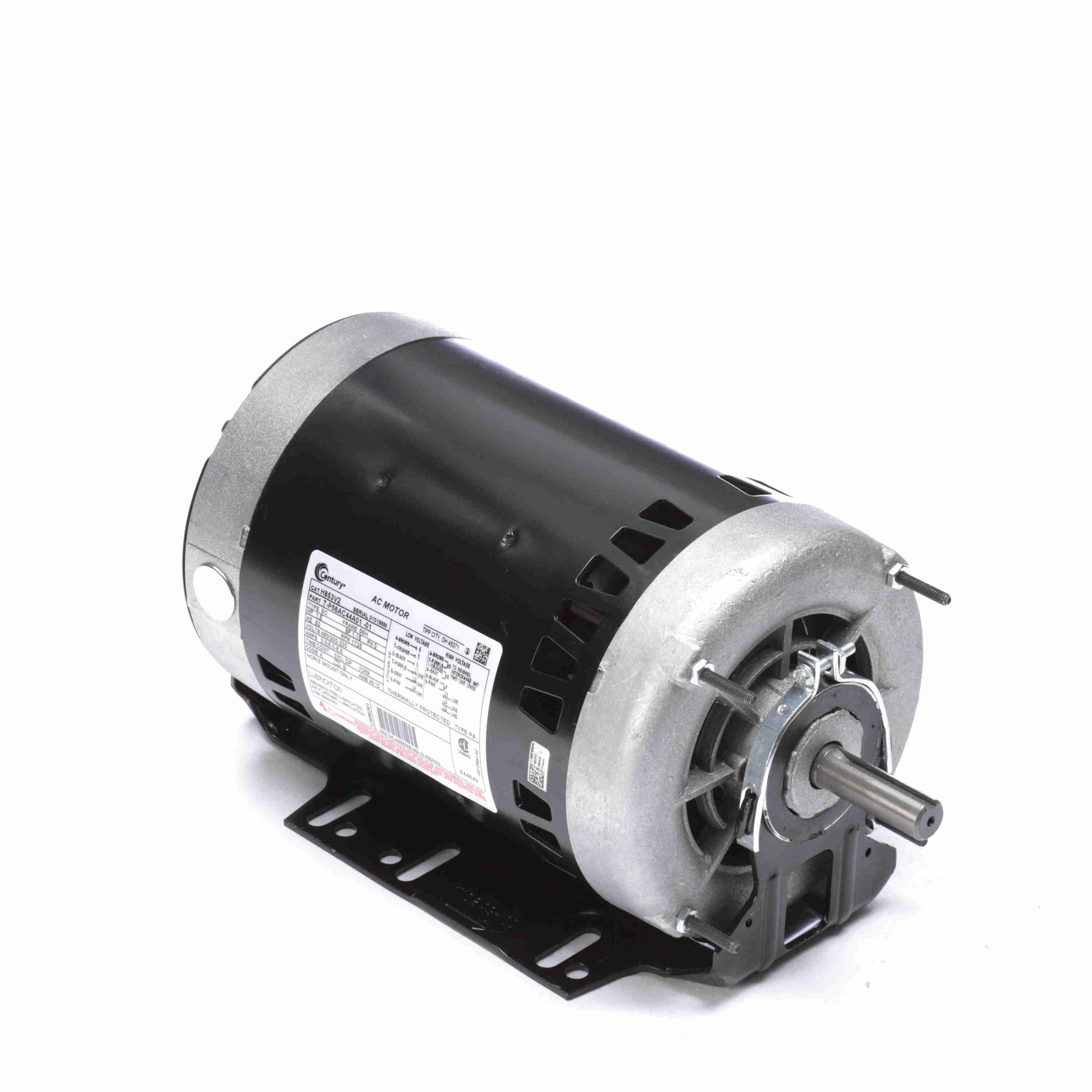

The Century UH853V2 is a three-phase fan and blower motor designed for HVAC applications. This motor operates at one and a half horsepower with a rated speed of one thousand seven hundred twenty-five RPM. It features a rolled steel construction ensuring durability and robustness in various environments. The motor comes with a cushion base for flexible mounting and uses ball bearings for smooth operation. Ideal for a range of industrial and commercial applications, this motor is a reliable choice in enhancing airflow in heating, ventilation, and air conditioning systems.
- Operates at three-phase voltage of four hundred sixty or two hundred-twenty to two hundred thirty volts
- Features a shaft diameter of zero point six two five inches with a shaft extension of one point nine four inches
- Complies with CSA standards and is UL recognized
Product Highlights
The Century UH853V2 combines efficiency and performance for optimal airflow in HVAC systems.
Product Information
Standard Information
-
Brand: Century
-
MPN: UH853V2
Technical Specifications
-
Electrical Type: Three Phase
-
Horsepower: 1 1/2
-
KW: 1.1
-
RPM: 1725
-
Frame: 56H
-
Diameter: 6.5 inches
-
Enclosure: ODP
-
Voltage: 460/200-230
-
Rotation: REV
-
Material: Rolled Steel
-
Bearings Type: Ball / Ball
-
Mounting: Cushion Base
-
Amperage: 2.8/5.0-5.6
-
Shaft Type: Keyed
-
Shaft Extension: 1.940 inches
-
Shaft Diameter: 0.625 inches
