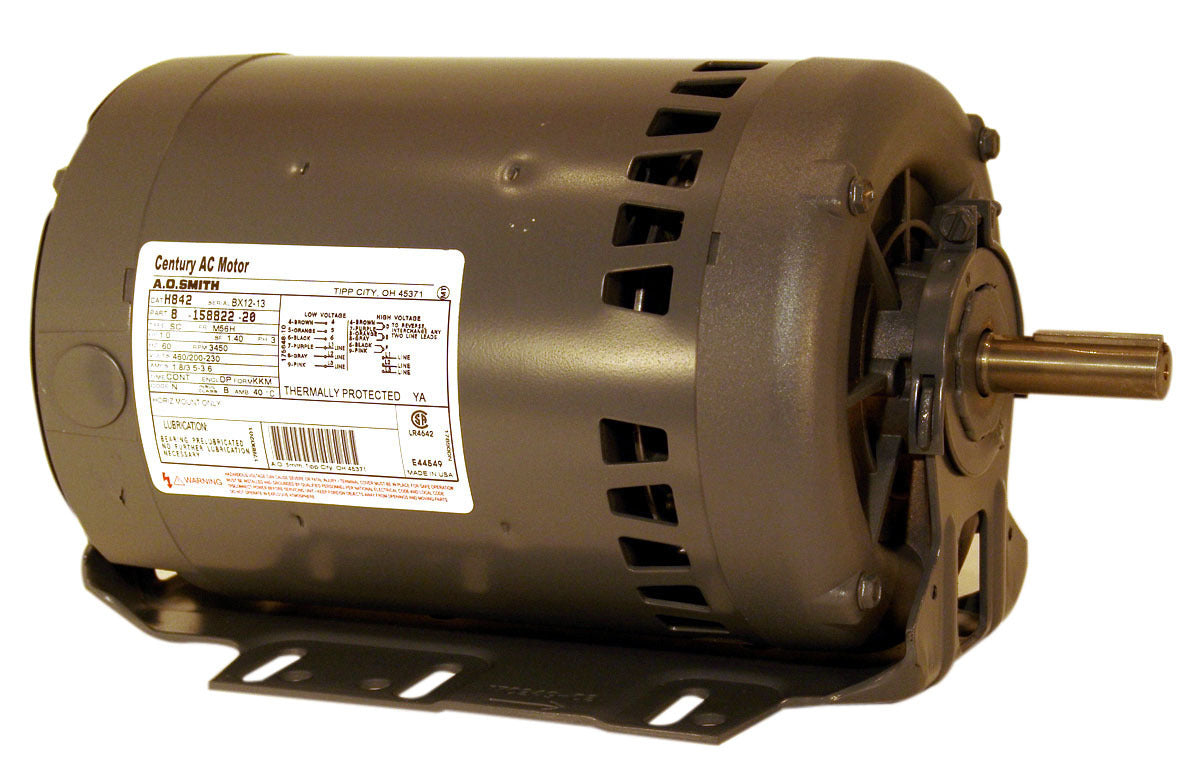

Century UH842 General Purpose Motor 1 HP 460/200-230V 3450 RPM

Product Description

The Century UH842 General Purpose Motor is a versatile motor designed for various applications. It offers reliable performance and durability.

• UL recognized and CSA certified
• Premium efficiency
• Heavy-duty rolled steel construction

Product Highlights

This motor features a thermally protected design and reversible counterclockwise rotation. It is suitable for polyphase, induction type, single or dual voltage use.

Product Information

Standard Information

• Brand: Century
• MPN: UH842

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• HP: 1
• Frame: M56H
• Diameter: 6.5
• Enclosure: Drip Proof
• Phase: Three
• Voltage: 460/200-230
• Rotation: Reversible Counterclockwise
• Overload Protection: Thermally Protected
• Material: Rolled Steel
• Mounting: Cushion Base
• Amperage: 1.8/3.5-3.6
• Shaft Type: Keyed
• Power: 0.75 KW
• RPM: 3450
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.94 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Duty: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 2
• Service Factor: 1.4
• Shaft Length: 12.69 inches
