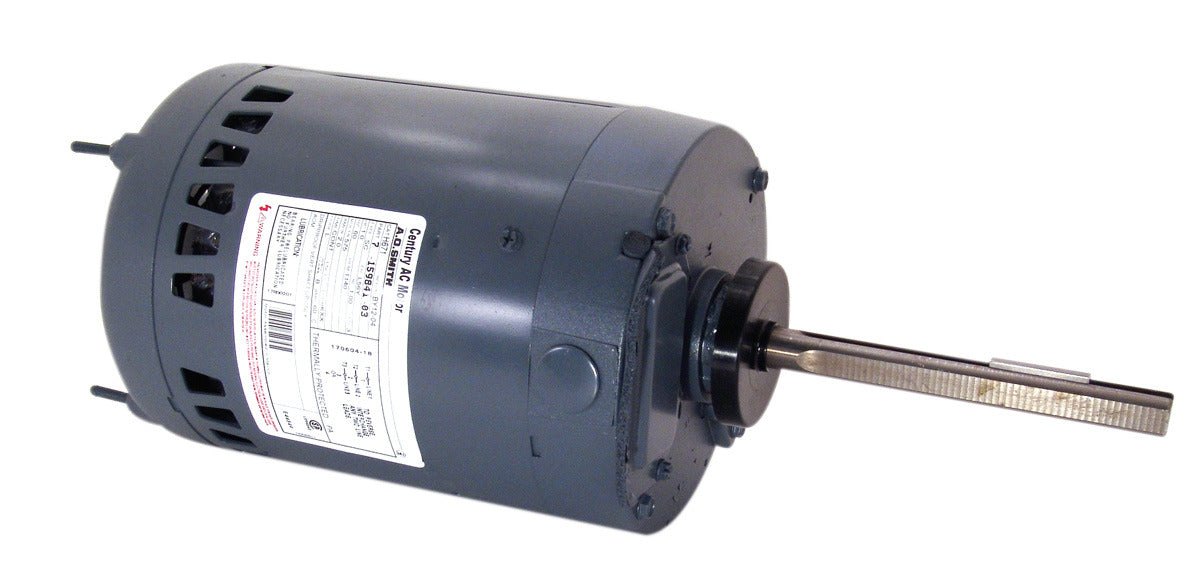

Century UH767 Condenser Fan Motor 1 1/2 HP 200-230/460V

Product Description

The Century UH767 Condenser Fan Motor is designed to meet the demands of HVAC systems. Rated at 1 1/2 HP, it operates efficiently at various voltages (200-230/460) and ensures a consistent performance with its three-phase configuration.

• Horsepower: 1 1/2 HP
• Voltage: 200-230/460V
• Three-phase

Product Highlights

This condenser fan motor by Century is built with a rolled steel body for durability and a keyed shaft for secure mounting. It operates at 1140 RPM and features ball bearings for smooth functioning.

Product Information

Standard Information

• Brand: Century
• Model: UH767

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 1 1/2
• KW: 1.1
• RPM: 1140
• Frame: 56Y
• Diameter: 6.5
• Enclosure: OAO
• Voltage: 200-230/460
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: Round
• Amperage: 5.1-5.0/2.5
• Shaft Type: Keyed
• Shaft Extension: 6.190
• Shaft Diameter: 0.625
• Certification CSA: Y
• Certification UL: Recognized
• Country of Origin: Mexico
