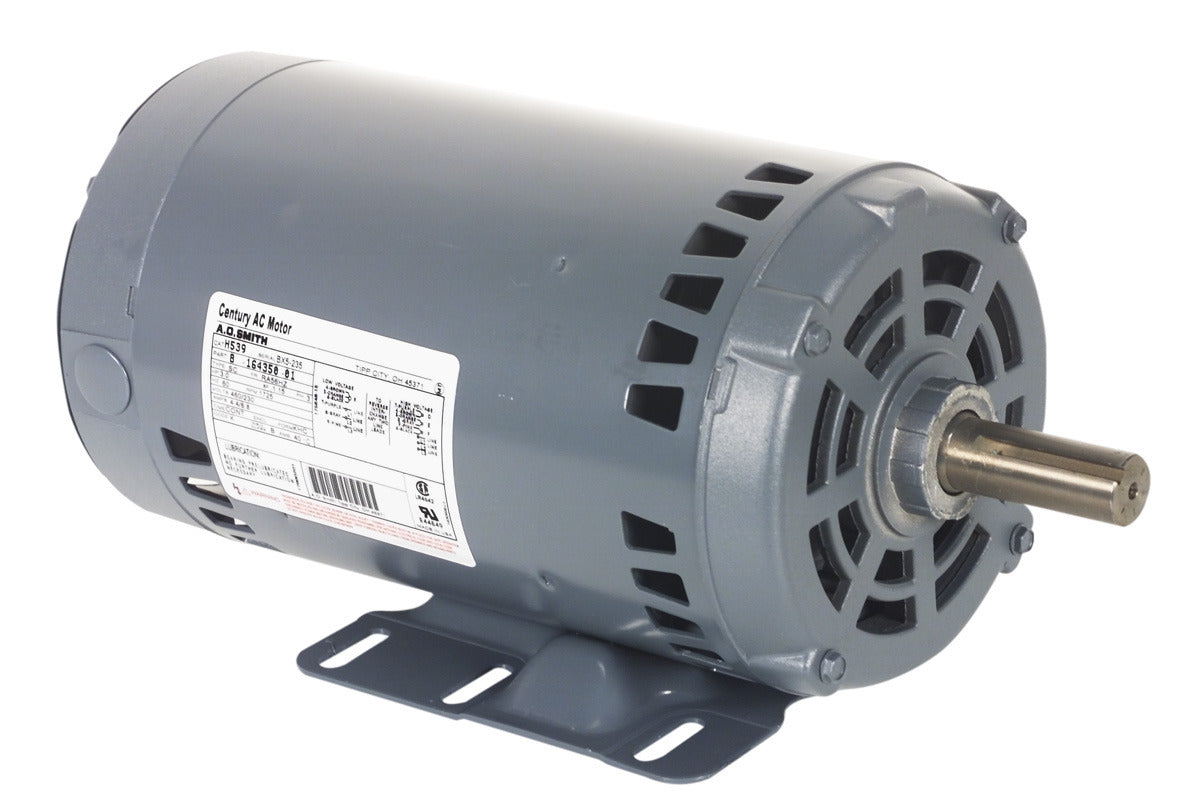

Century UH757 General Purpose Motor 3.0 HP P56HZ

Product Description

The Century UH757 General Purpose Motor is a three-phase motor designed for versatility and reliability. It operates at a voltage of four hundred sixty or two hundred to two hundred thirty volts and delivers a power of three horsepower. This motor is thermally protected, ensuring safety in a variety of electrical applications.

• Heavy-duty rolled steel construction.
• Permanently lubricated sealed bearings.
• Reversible counterclockwise rotation.

Product Highlights

The Century UH757 motor is suitable for applications requiring continuous duty. Its design allows for efficient operation with premium energy efficiency at eighty-two point five percent.

Product Information

Standard Information

• Type: General Purpose Motor
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single or Dual Voltage
• Frame: P56HZ
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Rotation: Reversible Counterclockwise
• Amperage: 4.3/9.0-8.6
• RPM: 3450
• Shaft Diameter: 0.875 inches
