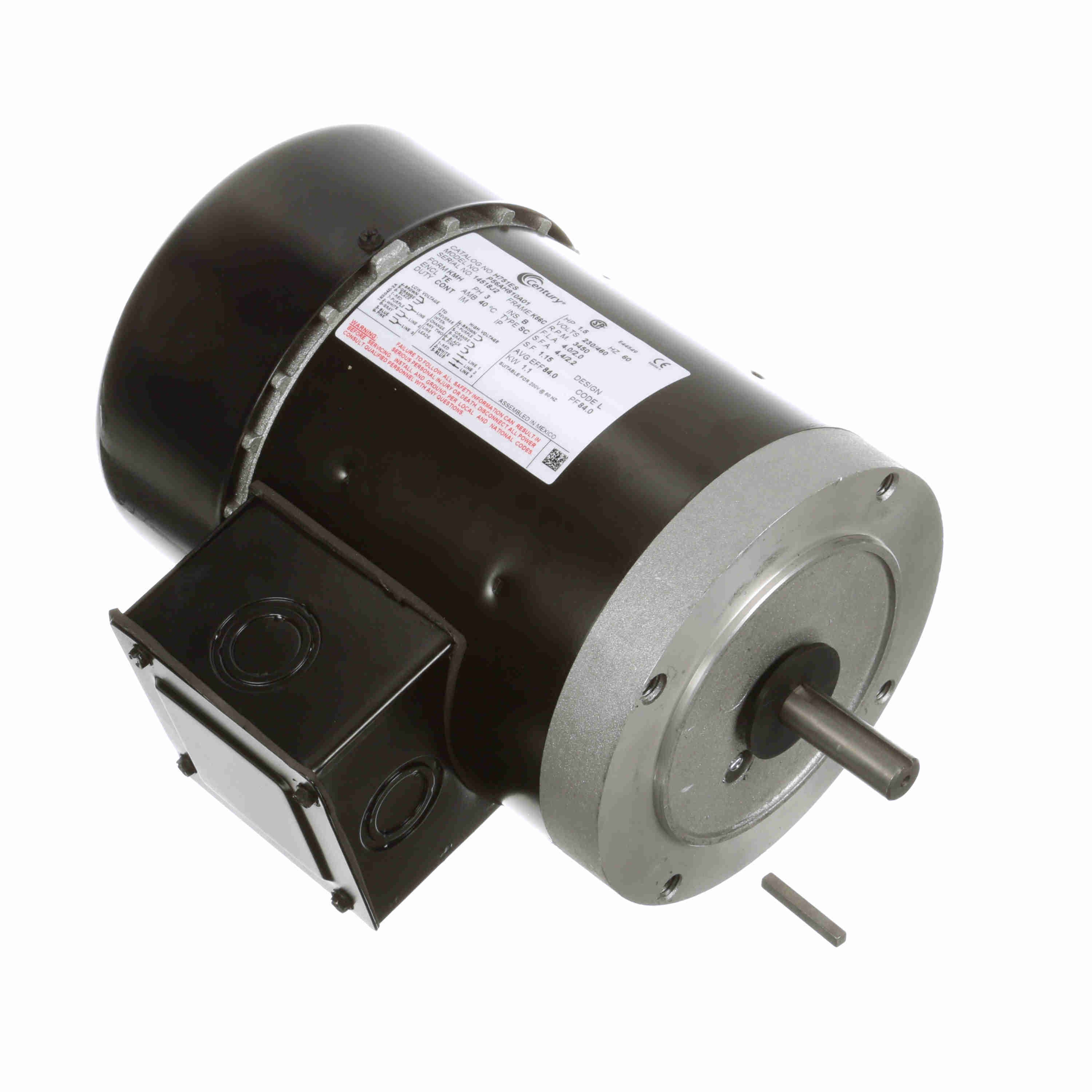

Century UH751ES General Purpose Motor 1.5 HP 3450 RPM 230/460V

Product Description

The Century UH751ES General Purpose Motor is designed for versatile applications. With 1.5 horsepower and a speed of 3450 RPM, it is suitable for various industrial tasks. The motor operates on three-phase power, compatible with 230 or 460 volts.

• 1.5 horsepower for powerful performance
• 3450 RPM speed
• Three-phase power for industrial use

Product Highlights

This motor offers reliable performance with a totally enclosed fan-cooled design. It features a continuous duty cycle and is constructed with rolled steel for durability.

Product Information

Standard Information

• Brand: Century
• MPN: UH751ES

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single or Dual Voltage
• Horse Power: 1.5
• Frame: K56C
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Three
• Voltage: 230/460
• RPM: 3450
• Material: Rolled Steel
• Shaft Type: Keyed
• Shaft Extension: 2.07 inches
• Shaft Diameter: 0.625 inches
• Insulation Class: B or F
• Amperage: 4.0/2.0
• Bearings Type: Ball / Ball
