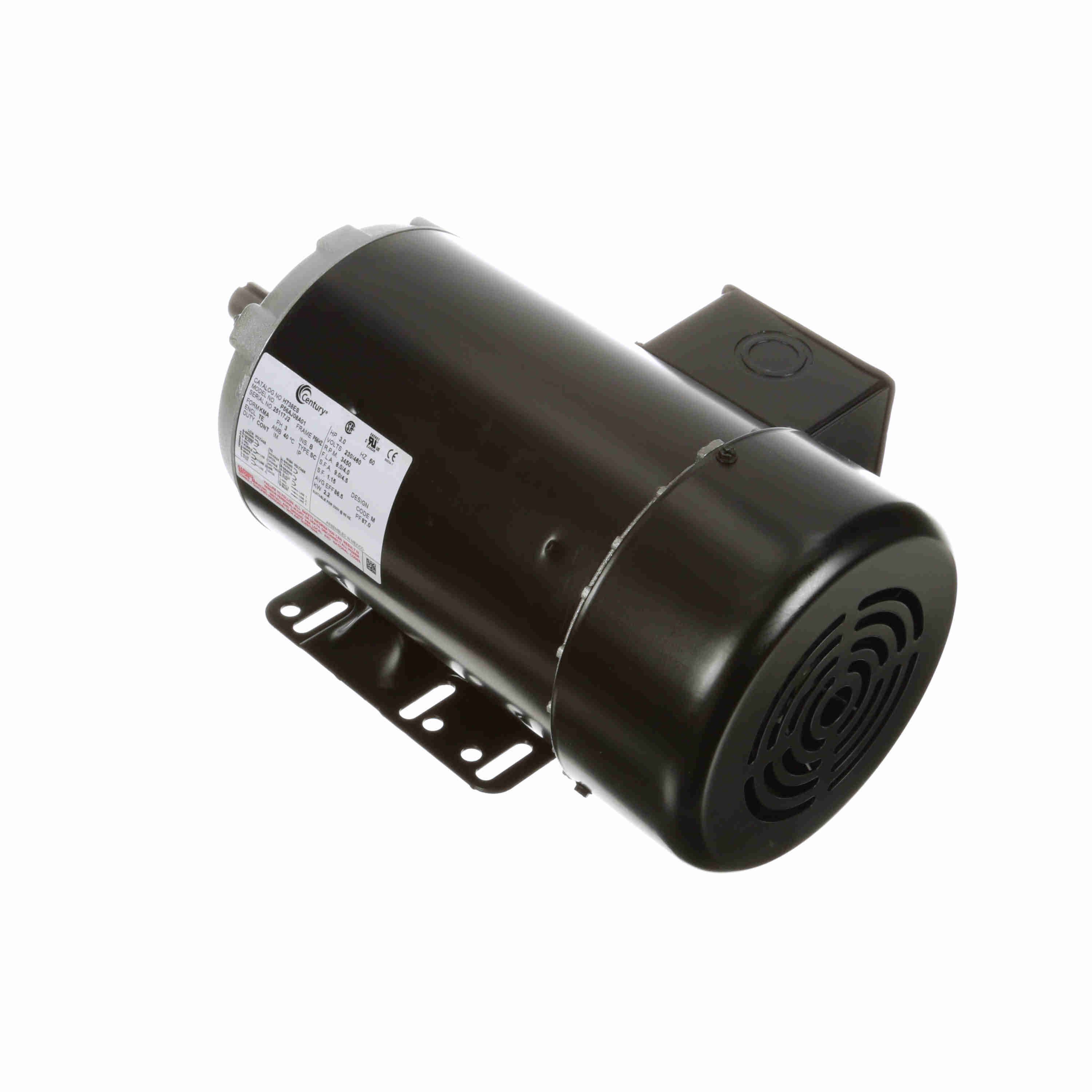

Century UH738ES General Purpose Motor 3 HP 230/460V 3450 RPM P56HZ

Product Description

The Century UH738ES is a three horsepower general purpose motor designed for multiple applications. It features a polyphase induction type construction and operates at a voltage of 230/460 at 3450 RPM.

• UL recognized component listing and CSA certified
• Continuous duty cycle design
• Class B or F insulation protection

Product Highlights

This motor ensures safety with its UL and CSA certifications, allowing it to be used in various settings. Its continuous duty cycle design supports maximum operation at rated power. The Class B or F insulation provides protection for maximum temperature ratings. Permanently lubricated, double-sealed bearings extend the motor's lifespan.

Product Information

Standard Information

• Brand: Century
• MPN: UH738ES
• Product Type: General Purpose Motor

Technical Specifications

• Electrical Type: Polyphase, Induction Type
• Horsepower: 3 HP
• Voltage: 230/460
• RPM: 3450
• Frame: P56HZ
• Enclosure: Totally Enclosed Fan Cooled
• Phase: 3
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 8.0/4.0
• Shaft Type: Keyed
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.31 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Duty: Continuous
• Insulation Class: B
• Efficiency: 86.5
• Frequency: 60 Hz
• Poles: 2
• Service Factor: 1.15
• Ambient Temperature: 40°C
