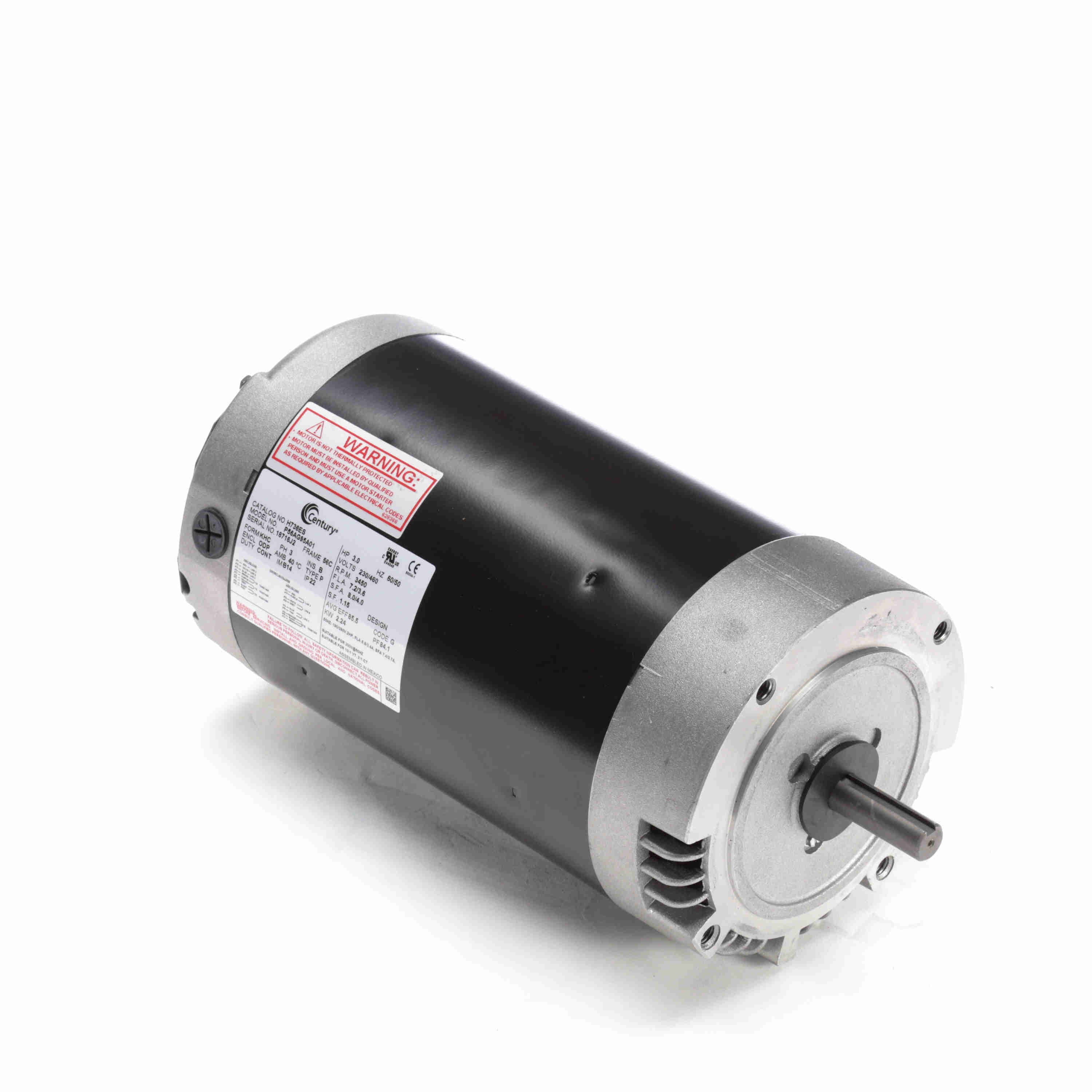

Century UH736ES 3 HP Motor Polyphase 230/460V 3450 RPM

Product Description

The Century UH736ES 3 HP Motor is a reliable solution for various industrial applications. With a 3 HP power rating and polyphase electrical type, it operates efficiently at 3450 RPM. This motor is built with a 56C frame and an open drip proof enclosure, ensuring durability and performance.

• 3 HP power
• 56C frame size
• 230/460V voltage

Product Highlights

This Century UH736ES motor is suitable for continuous duty cycles and features a keyed shaft type for secure mounting. The reversible rotation and ball bearings on both ends enhance its versatility and longevity.

Product Information

Standard Information

• Brand: Century
• MPN: UH736ES
• Country of Origin: Mexico
• UPC Number: 787256000000
• Certification UL: Recognized
• Certification CE: Yes

Technical Specifications

• Voltage: 230/460
• Horsepower: 3
• RPM: 3450
• Frame Size: 56C
• Amperage: 7.2/3.6
• Enclosure: Open Drip Proof
• Bearing Type: Ball
• Mounting Type: Round
• Rotation: Reversible
• Efficiency: 85.5
• Service Factor: 1.15
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.07 inches
• Material: Rolled Steel
• Insulation Class: B
• Frequency: 60/50 Hz
• Service Factor Amperage: Primary
• Duty: Continuous
• Ambient: 40°C
