Product Description

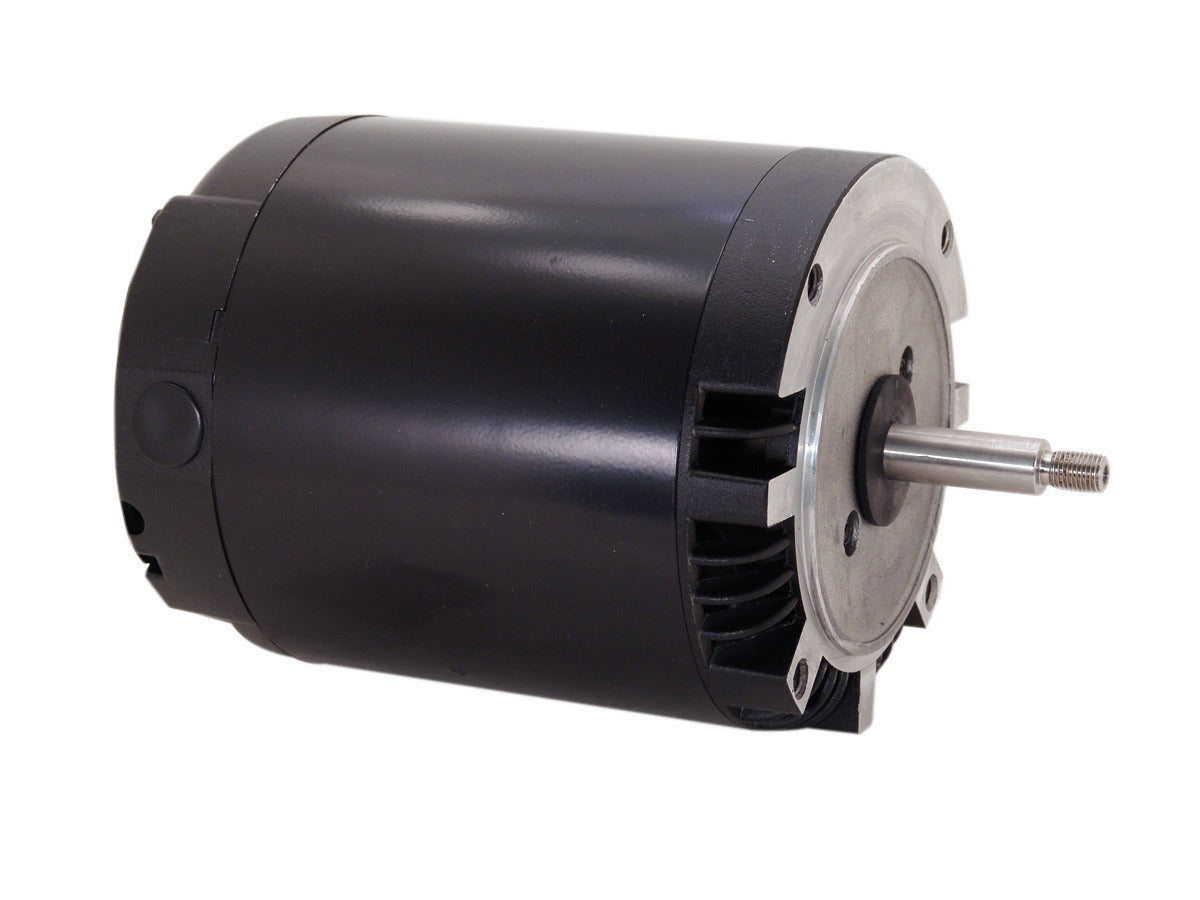

The Century UH734 General Purpose Pump Motor is a reliable solution for your pump systems. This motor is designed for various applications requiring a 3 HP, 3450 RPM motor. Built with quality components, it ensures durability and long-lasting performance.
- Polyphase, Induction Type
- Rolled Steel Material
- Reversible Clockwise Rotation
Product Highlights
This motor is versatile and suitable for many general-purpose pump applications. It features a 3 HP power rating, drip-proof enclosure, and operates at 200-230/460 volts. Suitable for professionals in HVAC, plumbing, and other trades.
Product Information
Standard Information
-
Brand: Century
-
MPN: UH734
-
Country of Origin: China
Technical Specifications
-
HP: 3
-
KW: 2.2
-
Frame: N56J
-
Diameter: 6.5
-
Enclosure: Drip Proof
-
Phase: Three
-
Voltage: 200-230/460
-
Rotation: Reversible Clockwise
-
Amperage: SF 9.8-9.6/4.8
-
Shaft Type: Threaded
-
Shaft Extension: 2.6
-
Shaft Diameter: 0.625
-
RPM: 3450
-
Material: Rolled Steel
-
Bearings Type: Ball / Ball
-
Bearings SE Type: Ball
-
Bearings OSE Type: Ball
-
Mounting Type: Round
-
Overload Protection: No Protection
-
Ambient Temperature: 40°C
-
Service Factor: 1.15
-
Efficiency: 82.8
-
Frequency: 60
-
Insulation Class: B
-
Pole: 2
-
Service Factor Amperage: 9.8-9.6/4.8
-
Starting Method: Across The Line
-
Shaft Diameter: 0.625
-
Shaft Extension: 2.6
