Product Description

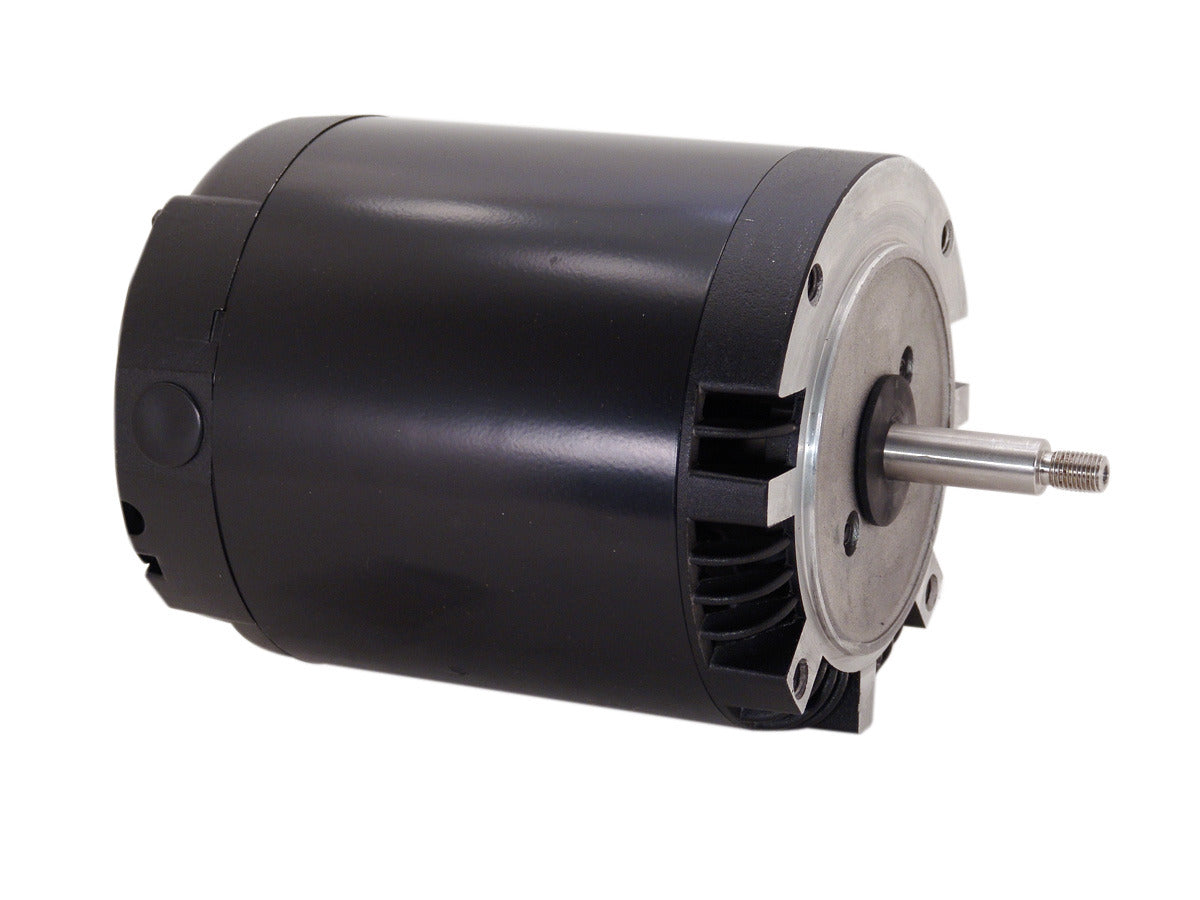

The Century UH733 General Purpose Pump Motor is an efficient solution for various applications. Designed for both single and dual voltage, it offers flexibility and robust performance. Featuring a polyphase, induction type, it ensures reliable operation.
- 2 Horsepower
- Three-phase induction
- Drip-proof enclosure
Product Highlights
This motor is suitable for various industrial and commercial applications. Its reversible clockwise rotation and robust build make it a versatile choice for different settings.
Product Information
Standard Information
-
Brand: Century
-
MPN: UH733
Technical Specifications
-
Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
-
Horsepower: 2
-
KW: 1.5
-
Frame: N56J
-
Diameter: 6.5 inches
-
Enclosure: Drip Proof
-
Phase: Three
-
Voltage: 200-230/460 volts
-
Rotation: Reversible Clockwise
-
Material: Rolled Steel
-
Bearings Type: Ball / Ball
-
Mounting: Round
-
Amperage: SF 6.8-6.6/3.3
-
Shaft Type: Threaded
-
Shaft Extension: 2.6 inches
-
Shaft Diameter: 0.625 inches
-
RPM: 3450
-
Service Factor: 1.2
-
Duty: Continuous
-
Frequency: 60/50 Hz
-
Insulation Class: B
-
Ambient Temperature: 40°C
-
Certifications: UL Recognized, CSA Certified
