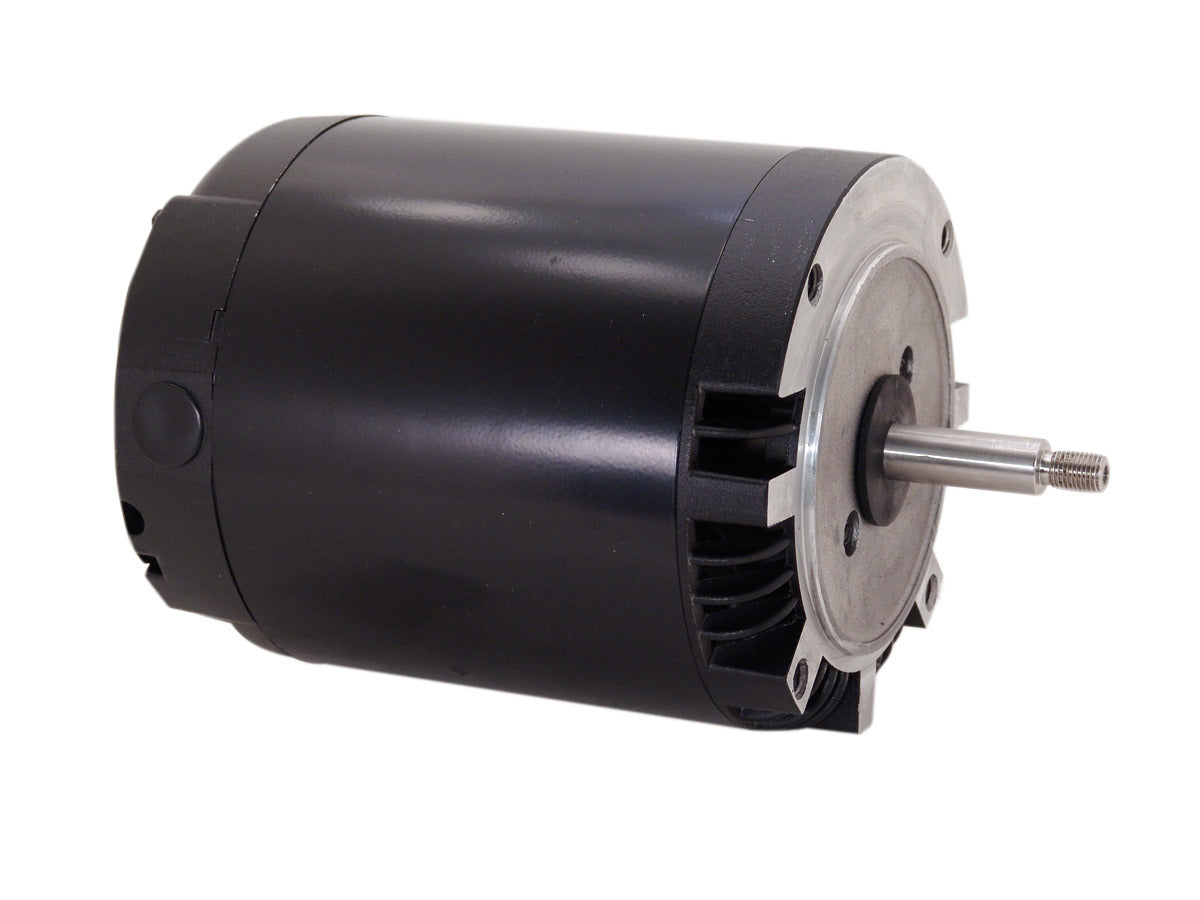

Century UH714 Motor 2.2kW 575V Three-Phase N56J Frame

Product Description

The Century UH714 Motor delivers a power rating of 2.2kW and operates at 575 volts. It features a three-phase design and is enclosed in a drip-proof case. This motor is built with a N56J frame and includes mechanically locked bearings on the shaft end and double sealed ball bearings.

• 2.2kW power rating
• Operates at 575 volts
• Includes N56J frame

Product Highlights

This motor has a reversible counterclockwise rotation, rolled steel construction, and a continuous duty rating. The shaft diameter is 0.625 inches, and it has a 2.57-inch shaft extension.

Product Information

Standard Information

• Brand: Century
• MPN: UH714

Technical Specifications

• Power Rating: 2.2kW
• Voltage: 575V
• Phase: Three
• Frame: N56J
• Enclosure: Drip Proof
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Amperage: SF 3.4
• Bearing Type: Double Sealed Ball Bearings
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.57 inches
• Service Factor: 1.15
• Frequency: 60Hz
• Duty: Continuous
• Weight: 25 lbs
• Length: 16 inches
• Width: 9 inches
• Height: 8 inches
• Country of Origin: Mexico
