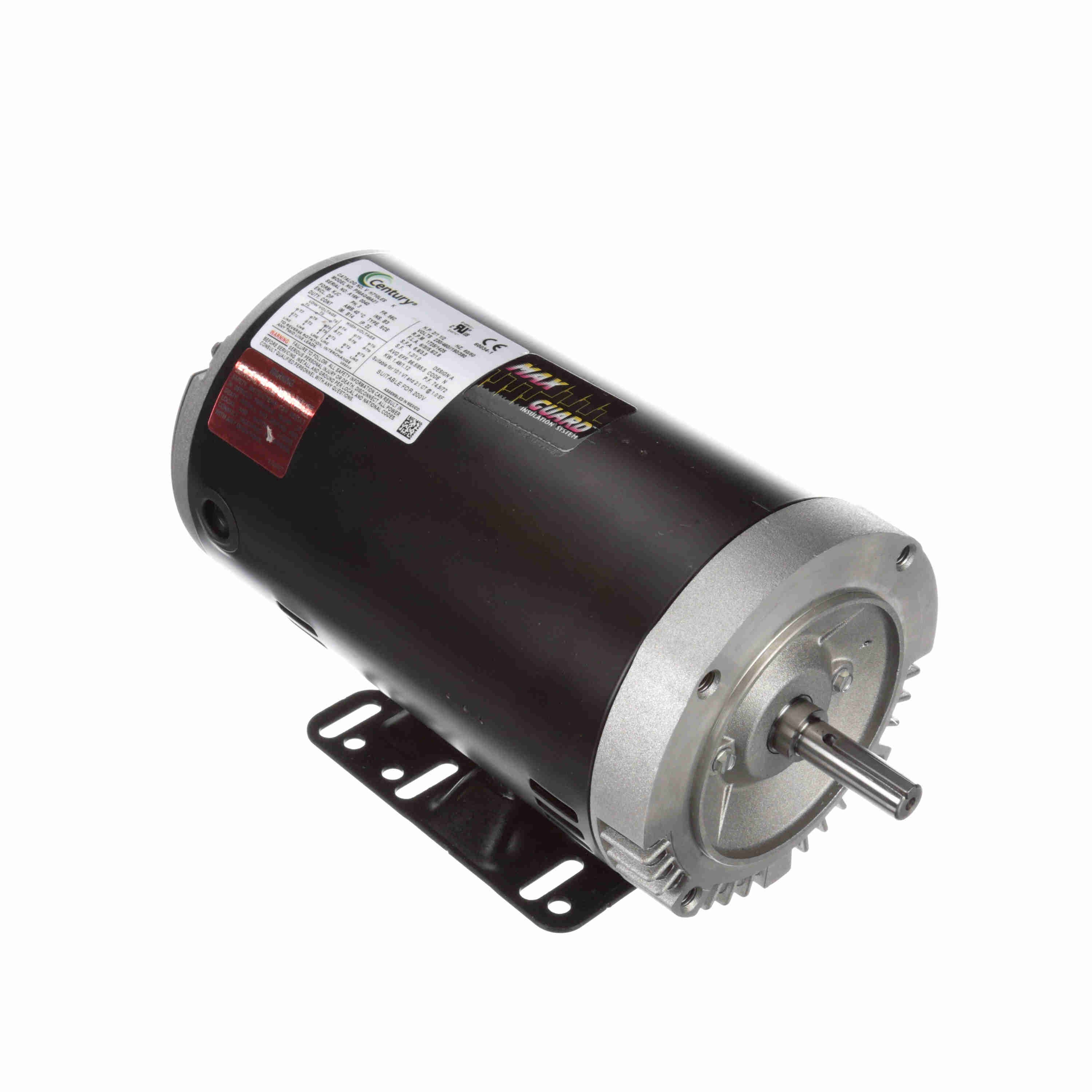

Century UH710LES General Purpose Motor 2.0 HP 1725 RPM 230/460V

Product Description

The Century UH710LES General Purpose Motor offers high reliability and efficiency for various applications. Built with rolled steel, it is designed to withstand tough conditions and ensure long-lasting performance. This motor is suitable for use in HVAC systems, industrial equipment, and more.

• Voltage: 230/460V
• HP: 2.0
• RPM: 1725

Product Highlights

The Century UH710LES is built with a heavy-duty rolled steel construction. It includes permanently lubricated sealed bearings and is UL recognized.

Product Information

Standard Information

• Brand: Century
• MPN: UH710LES
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 2.0
• KW: 1.5
• RPM: 1725
• Frame: 56C
• Enclosure: Drip Proof
• Voltage: 230/460
• Rotation: Reversible
• Bearings Type: Ball / Ball
• Shaft Type: Keyed
• Shaft Extension: 2.06 inches
• Shaft Diameter: 0.625 inches
• Material: Rolled Steel
• Amperage: 6.0/3.0
• Efficiency: 86.5%
• Insulation Class: B
• Service Factor: 1.2
• Frequency: 60 Hz
• Ambient Temperature: 40°C
• Length: 16 inches
• Width: 8 inches
• Height: 10 inches
• Weight: 46 lbs
• Certifications: UL Recognized, CE:
