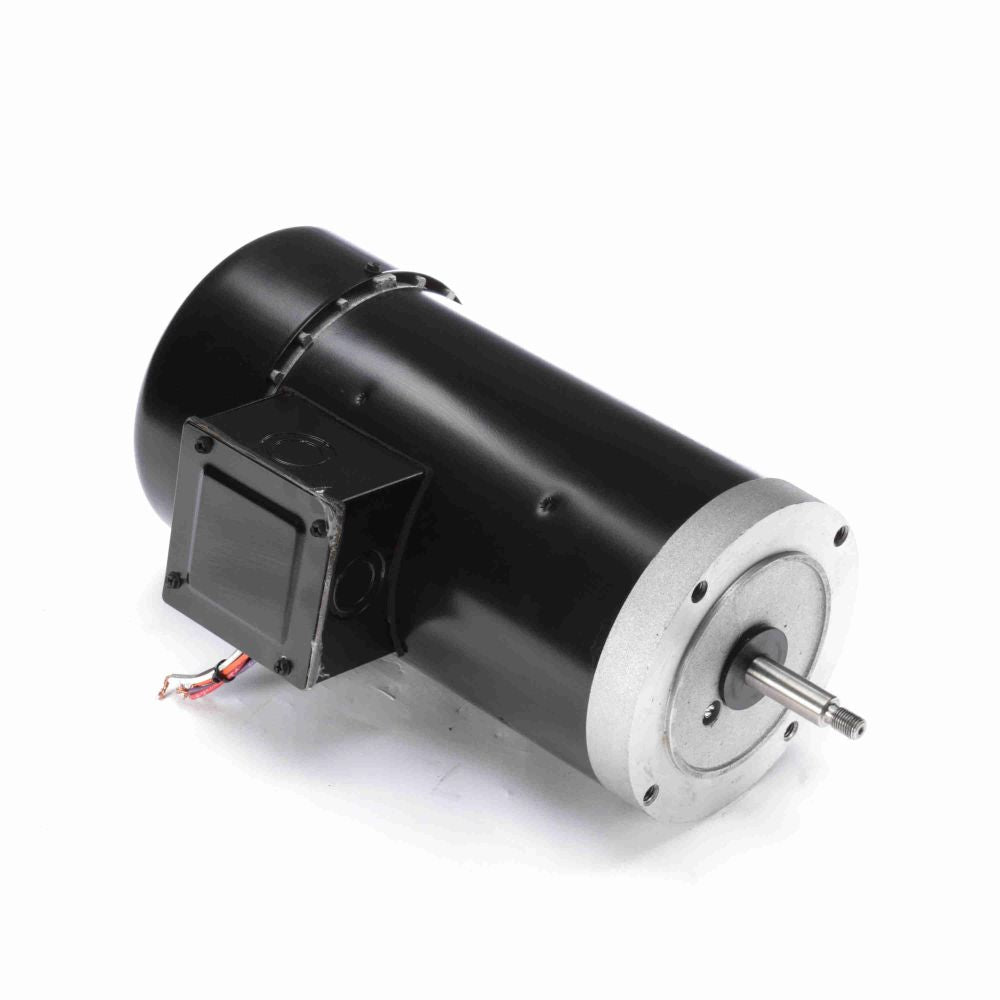

CENTURY MOTORS UH707ES General Purpose Pump Motor 3 hp NEMA 56J

Product Description

The CENTURY MOTORS UH707ES is a three-phase motor designed for pump applications. It offers a power rating of three horsepower and operates at a speed of three thousand six hundred rpm. This motor is suitable for three-phase power systems and features a NEMA 56J frame.

• Power: 3 hp
• Speed: 3600 rpm
• Mounting Type: C-face with four threaded bolt holes

Product Highlights

This motor is ideal for various general purpose pumping needs. It has a C-face mounting that allows for easy installation. The threaded stainless steel shaft adds durability and reliability in operation.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: UH707ES

Technical Specifications

• Power: 3 hp
• Speed: 3600 rpm
• Input Voltage: 230/460 volts
• Input Current: 3.0/4.0 amps
• Frequency: 60 Hz
• Frame Size: NEMA 56J
• Mounting Type: C-face
• Shaft Material: Threaded stainless steel
• Shaft Diameter: 5/8 inches
• Shaft Length: 1 7/8 inches
• Service Factor: 1.0
• Overload Protection: None
• Reversible: Yes
• Bearing Type: Ball bearings
• Insulation Class: Class B
• Cooling Type: Totally Enclosed Fan-Cooled (TEFC)
